Frame: | Aluminum Alloy 6061 | Battery: | Li-ion Battery 36V 10.4Ah, Samsung Brand Cells |
---|---|---|---|
Seat Tube: | Suspension System | Rear Brake: | Disc Brake For Front, Roller Safety Brake For Rear |
Drive Method: | Pedals Assist System And Throttle | Chaincase: | Full Chaincase Protector |
Highlight: | 700C 36v electric mountain bike,36V Electric Mountain Bike 250W,25km/h e full suspension mountain bike |

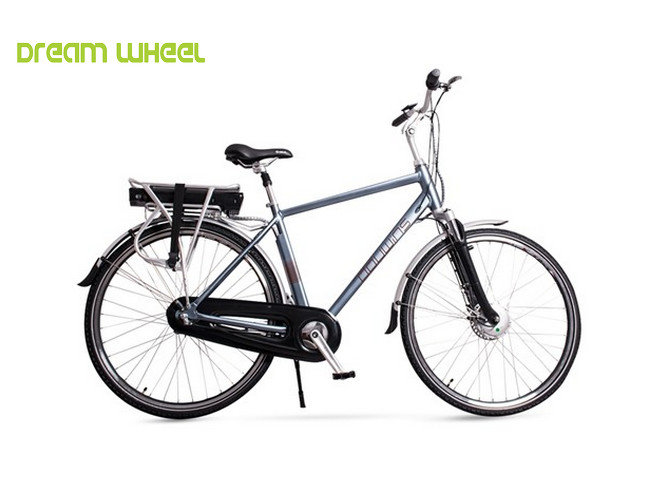

MTB frame 700c aluminum 6061 electric mountain bike with 36V 250W front motor Shimano Nexus 3 speed gears
1. Motor power: 36V 250W front brushless gear motor
2. Frame material: Aluminum alloy 6061
3. Lithium battery: 36V 10.4Ah Samsung cells
4. Certification: EN15194
5. Wheel size: 700C
6. Brake system: Disc brake for front; Roller safety brake for rear
7. Seat tube: with suspension system
EBS332 made with MTB style aluminum frame, but with city bike’s handlebar. The drive are able to seat straight to ride the MTB style bike. It’s comfortable for man and lady.
The chaincase design, looks nice and the chain clean always. Our handlebar can be adjustable height to meet different driver’s height.
Front Disc brake and rear Roller brake.
Model number | EBS332 | |
Motor | 36V 250W front brushless motor | |
Battery | 36V 10.4Ah li-ion battery, removable battery | |
Charge time | 4-6hours | |
Charger | 110-240V, 36V 1.8A, plug can be customized | |
Controller | 36V 15A | |
Speed | 25km/h | |
Driving distance | 50-60km by PAS | |
Weight | 24.50Kgs | |
Packing dimension | 1700x250x800mm | |
Panel/speedometer | LCD display, show speed, distance, power.. | |
Wheel | 700C | |
Tire | KENDA, 1.75 | |
Chain | Anti-rust chain, KMC | |
Frame | Aluminum alloy 6061 | |
Fork | Aluminum allou with suspension | |
Shift lever | Shimano 3 speed | |
Rear derailleur | Shimano NEXUS Inner 3 speed | |
Front brake | Disc Brake | |
Rear brake | Roller safety Brake | |
Brake levers | Aluminum | |
Rims | Aluminum alloy,with dual walls | |
Spokes | Stainless | |
Pedals | Aluminum alloy, new version | |
Chainwheel | Aluminum alloy | |
Cranks | Aluminum alloy | |
Freewheel | Shimano | |
Handlebar | Aluminum, adjustable | |
Stem | Aluminum alloy | |
Grip | 125MM | |
Seat | Comfortable | |
Seat tube | with suspension | |
Lamp | LED for front | |
Wheel base | -- | |
Min ground clearance | -- | |
Saddle ground clearance | -- | |
Handlebar ground clearance | -- | |
Licence requirement | NO |
For trial order, we accept Paypal payment. For full container order, we use 30% down payment and 70% rest depends on Bill of Lading.
The sample order, will finish the production in 25days; for full container order, finish in 35days.
