48V 500W Electric Folding Bike , Lightweight Folding Electric Bicycle 35km/h

China 48V 500W Electric Folding Bike , Lightweight Folding Electric Bicycle 35km/h supplier
48V 500W Electric Folding Bike , Lightweight Folding Electric Bicycle 35km/h supplier 48V 500W Electric Folding Bike , Lightweight Folding Electric Bicycle 35km/h supplier 48V 500W Electric Folding Bike , Lightweight Folding Electric Bicycle 35km/h supplier

Large Image :  48V 500W Electric Folding Bike , Lightweight Folding Electric Bicycle 35km/h

Product Details:

Place of Origin: CHINA
Brand Name: DREAM WHEEL
Certification: EN15194
Model Number: EBS128-02

Payment & Shipping Terms:

Minimum Order Quantity: 2units
Price: USD
Packaging Details: Carton and protecting cover; 245pcs in 40" HQ
Delivery Time: 30days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 3000PCS per month
Contact Now
Detailed Product Description
Color: Grey, Black, White, Red, Blue Tire: 20" X2.125 With Reflector Cycle
Package Size: 86x46x71.5cm Fork: With Suspension
Motor: 48V 500W High Speed Motor
High Light:

500 watt folding electric bike EN15194

,

48V 500W electric folding bike

,

lightweight folding electric bicycle 35km/H

48V 500W 25 - 35km / h Electric Powered Bicycles Collapsible Bikes Lightweight 20" 2.125 Tire reflector cycle



Quick Details



1.  Motor power: 48V 500W BAFANG rear motor

2.  Frame material: Aluminum alloy 6061

3.  Lithium battery: 36V 10.4Ah Samsung cells

4.  Certification: EN15194

5.  Wheel size: 20”

6.  Brake system: Disc brake for front wheel; Shimano V brake for rear wheel

7.  Derailleur system: Shimano tourney TX55

8.  Pedals assisted system: Yes.  throttle can be optional



Product Descriptions



Dream Wheel Technology, offers a state of the art battery and frame design, and artfully combines the highest quality parts from the most competitive manufacturers  Shimano, ZOOM, KENDA, KMC and VELO, to make reliable products.  This smart folding electric bike, sales well in Israel.



This bike, use 48V 500W Bafang high speed motor, the max speed can reach 35km/h.



Components



1.  Latest design frame with “S”style, the main frame use high strength aluminum alloy and advanced melt technology, have passed 100,000 times vibration test.  When fold the bike, the size will be 0.25 cube, so it’s  easy to take in car, or any public transportation tool.



2.  BAFANG rear Gear motor, China famous electric bike motor supplier. This rear-drive motor, which has a rated power of 500W.



3.  ZOOM suspension and brake system, we have test for nearly 10 years. We use this high quality parts, for many customers around the world. And feedback is very good until now.  We will continue to care more on user’s experiences to improve each details for our electric bike.



4.  Velo seat, high end seat supplier from TAIWAN,  one of the biggest seat manufacturer in the world since 1979.



5.  KENDA on road tire, provide safe and comfortable driving experiences.  The tire made with reflector strip, will enhance the safety in night or dark environment.  Electric bike is one funny transportation tool, but not toy, so make safe products more important than any other features.



Key Features



48V 500W Electric Folding Bike , Lightweight Folding Electric Bicycle 35km/h 0





Specifications



Model number

EBS128-02

Motor

BAFANG, 48V 500W rear GEAR motor

Battery

48V 13Ah lithium, SAMSUNG cells

Charge time

4-8h

Charger

110-240V, 48V 2.5A, plug can be customized

Controller

 48V 18A

Speed

25-35Km/h

Driving distance

50-60km by PAS

Weight

23Kgs

Packing dimension

860x460x715mm

Panel/speedometer

 LED style

Wheel

20”

Tire

20”x2.125, KENDA with reflector cycle

Chain

1/2*3/32*114L, KMC rust-proof

Frame

Aluminum alloy 6061

Fork

20”, travel 100MM, 25.4*22.2*153L*102MM

Shift lever

Shimano 6 speed

Rear derailleur

Shimano RD-TX55

Front brake

ZOOM Disc Brake

Rear brake

Shimano V Brake

Brake levers

 Aluminum, 47PDD

Rims

Aluminum alloy,20”*1.75*36H*13G

Spokes

Front:13GX176/178; Rear:12GX123/125;

Pedals

Wellgo, with ball

Chainwheel

1/2*3/32*52T, aluminum

Cranks

Aluminum, 170L

Freewheel

14-28T

Handlebar

ZOOM Aluminum, W560

Stem

ZOOM Aluminum

Grip

140MM

Seat

Velo

Seat tube

Aluminum, 27.2*300*1.4T

Lamp

LED for front and rear

Wheel base

1030mm

Min ground clearance

90mm

Saddle ground clearance

Max:990mm; Min:790mm

Handlebar ground clearance

1120mm

Licence requirement

NO

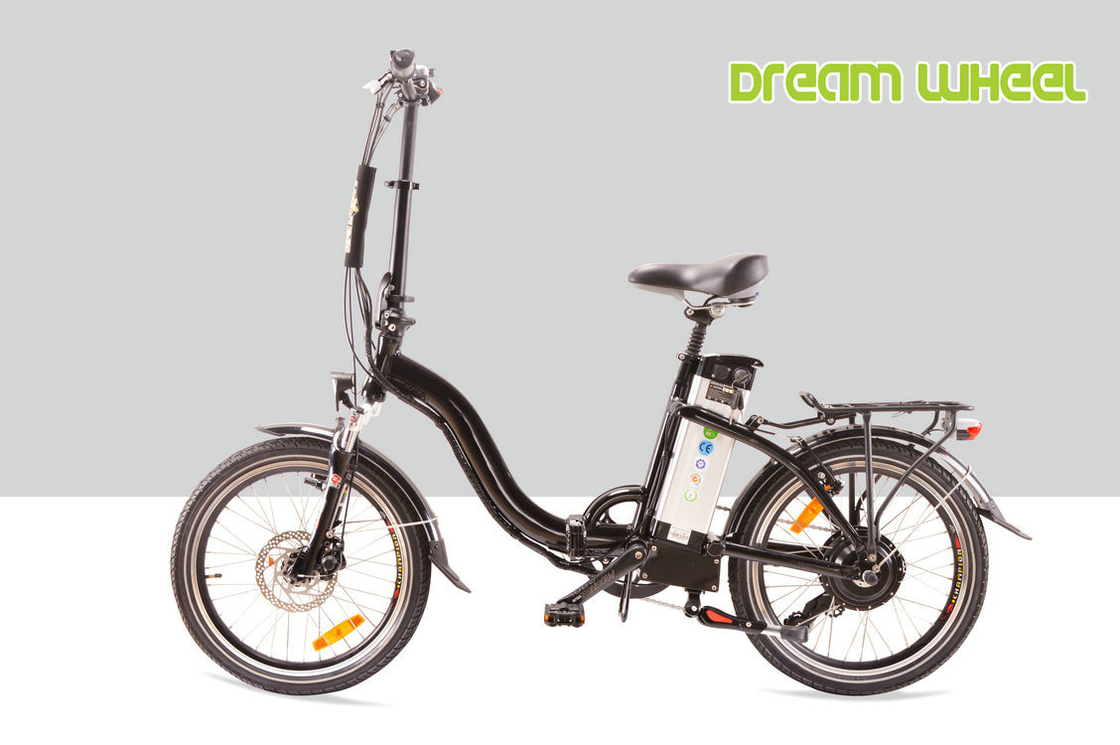

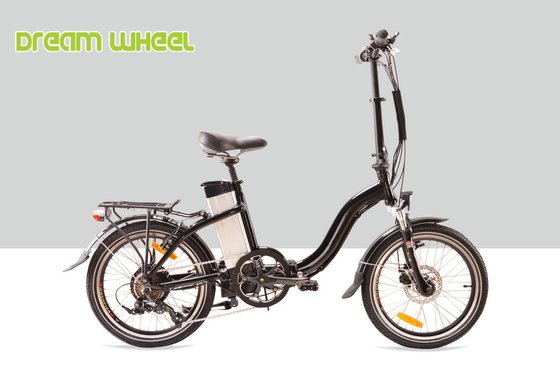

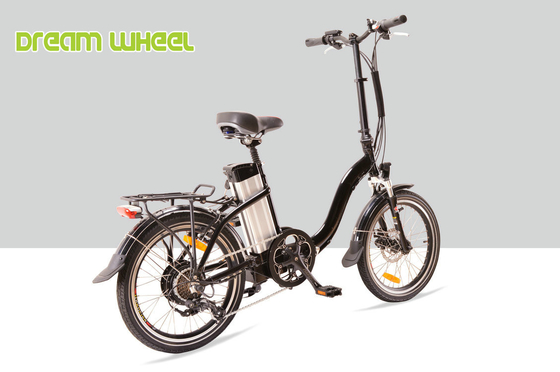

Pictures Show



48V 500W Electric Folding Bike , Lightweight Folding Electric Bicycle 35km/h 148V 500W Electric Folding Bike , Lightweight Folding Electric Bicycle 35km/h 248V 500W Electric Folding Bike , Lightweight Folding Electric Bicycle 35km/h 3



48V 500W Electric Folding Bike , Lightweight Folding Electric Bicycle 35km/h 4



48V 500W Electric Folding Bike , Lightweight Folding Electric Bicycle 35km/h 5



48V 500W Electric Folding Bike , Lightweight Folding Electric Bicycle 35km/h 6



48V 500W Electric Folding Bike , Lightweight Folding Electric Bicycle 35km/h 7
