32km/H Pedal Assist Electric Mountain Bike 36V Lithium Battery Hide In Frame Tube

China 32km/H Pedal Assist Electric Mountain Bike 36V Lithium Battery Hide In Frame Tube supplier

Large Image :  32km/H Pedal Assist Electric Mountain Bike 36V Lithium Battery Hide In Frame Tube

Product Details:

Place of Origin: CHINA
Brand Name: DREAM WHEEL
Certification: EN15194
Model Number: EBS336

Payment & Shipping Terms:

Minimum Order Quantity: 5units
Price: USD
Packaging Details: Carton and protecting cover; 203pcs in 40" HQ
Delivery Time: 38days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 2000PCS per month
Detailed Product Description
Tire: 26" MTB Tire Color: Black, White, Red, Blue, Matt Black,Silver
Speed: 32km/h Package Size: 170x25x78cm
Gears: 7 Speed Brake: Tektro Hydraulic Disc Brakes
High Light:

32km/H Pedal Assist Electric Mountain Bike

,

Pedal Assist Electric Mountain Bike 36V

,

250W pecialized pedal assist mountain bike

Pedal Assist High Level Electric Powered Mountain Bike 36v Lithium Battery Hide In Frame Tube



Quick Details



1.  Motor power: 36V 250W rear GEAR motor

2.  Frame material: Aluminum alloy 6061

3.  Lithium battery: 36V 5.8Ah Samsung cells, hide in the frame tube

4.  Certification: EN15194

5.  Wheel size: 26"

6.  Brake system: Tektro Hydraulic Disc brake for both wheels

7.  Derailleur system: Shimano 7 speed

8.  Pedals assisted system: Yes.  throttle can be optional



Product Descriptions



This EBS336 MTB style bike is our new electric bike,  this bike make with quality components, like TEKTRO disc brakes, RST adjustable hydraulic fork, LCD panel, make the bike with good performance.



Another feature, it's the lithium battery cells hide in the frame, so it looks like one normal bicycle. And this bike weight is much light than any others.



Components



1.  250W new mini rear Gear motor.



2.  RST fork, MTB trekking series, made with oil pressure system, adjustable preload, hydraulic remote lock-out.



3.  Tektro hydraulic disc brake, from TAIWANG high quality brake system supplier.



4.  Velo seat, high end seat supplier from TAIWAN, in any case, the wider and more comfortable seat can provide more experiences for riders.



5.  SPANNINGA high quality LED headlamp, from Netherlands



Specifications



Model number

EBS336

Motor

36V 250W rear GEAR motor

Battery

36V 5.8Ah lithium, SAMSUNG cells

Charge time

4-6h

Charger

110-240V, plug can be customized

Controller

 36V 14A

Speed

25-32Km/h

Driving distance

40-45km by PAS

Weight

21.3Kgs

Packing dimension

1700x250x780mm

Panel/speedometer

 LCD style

Wheel

26”

Tire

26”x1.95, KENDA off road tire

Chain

KMC rust-proof

Frame

Aluminum alloy 6061

Fork

26”, travel 80MM

Shift lever

Shimano

Rear derailleur

Shimano 7 speed

Front brake

TEKTRO Hydraulic Disc Brake

Rear brake

TEKTRO Hydraulic Disc Brake

Brake levers

 TEKTRO

Rims

Aluminum alloy

Spokes

Front:13GX245/247; Rear:13GX207/209;

Pedals

Wellgo, with ball

Chainwheel

1/2*3/32*44T

Cranks

Aluminum, 170L

Freewheel

14-28T

Handlebar

Aluminum, W610x2.0T

Stem

Aluminum, Adjustable

Grip

92/135MM, black

Seat

Velo, 1663

Seat tube

Aluminum with suspension, 27.2*300*2.0T

Lamp

LED for front, SPANNINGA

Wheel base

1190mm

Min ground clearance

110mm

Saddle ground clearance

Max:990mm; Min:850mm

Handlebar ground clearance

1030mm

Licence requirement

NO



Pictures Show

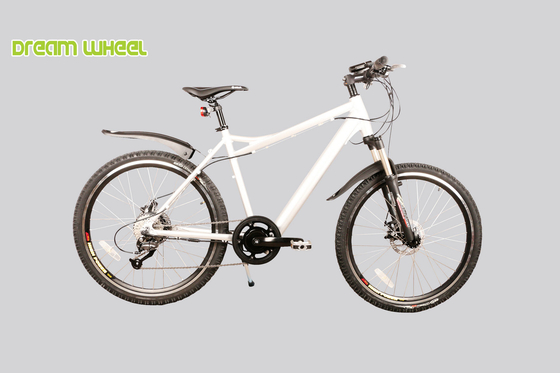

32km/H Pedal Assist Electric Mountain Bike 36V Lithium Battery Hide In Frame Tube 0
