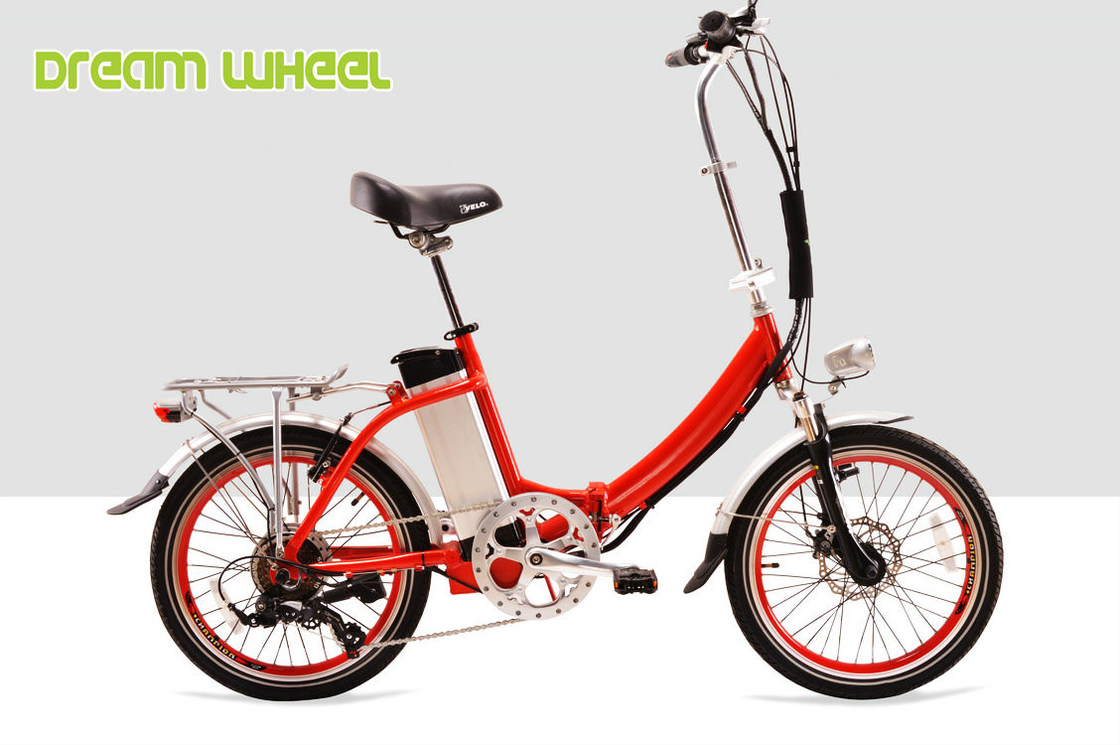

Red Citizen Lightweight Electric Folding Bike 20 Inch 36V 250W V Brake

China Red Citizen Lightweight Electric Folding Bike 20 Inch 36V 250W V Brake supplier
Red Citizen Lightweight Electric Folding Bike 20 Inch 36V 250W V Brake supplier Red Citizen Lightweight Electric Folding Bike 20 Inch 36V 250W V Brake supplier Red Citizen Lightweight Electric Folding Bike 20 Inch 36V 250W V Brake supplier Red Citizen Lightweight Electric Folding Bike 20 Inch 36V 250W V Brake supplier Red Citizen Lightweight Electric Folding Bike 20 Inch 36V 250W V Brake supplier Red Citizen Lightweight Electric Folding Bike 20 Inch 36V 250W V Brake supplier Red Citizen Lightweight Electric Folding Bike 20 Inch 36V 250W V Brake supplier Red Citizen Lightweight Electric Folding Bike 20 Inch 36V 250W V Brake supplier

Large Image :  Red Citizen Lightweight Electric Folding Bike 20 Inch 36V 250W V Brake

Product Details:

Place of Origin: CHINA
Brand Name: DREAM WHEEL
Certification: EN15194
Model Number: HP-E052

Payment & Shipping Terms:

Minimum Order Quantity: 2units
Price: USD385 to 485
Packaging Details: Carton and protecting cover; 245pcs in 40" HQ
Delivery Time: 30days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 2500PCS per month
Detailed Product Description
Battery: 800 Times Recycle Color: Grey, Black, White, Red, Blue
Tire: 20" X2.125 With Reflector Cycle Speed: 25km/h
Package Size: 86x46x71.5cm Fork: With Suspension
High Light:

25km/h Citizen Electric Folding Bike

,

Lightweight electric folding bike 20 inch 36V

,

adult folding electric bike 36V 250W



Red Citizen Lightweight 20 Inch Folding Electric Bike 36v 250w V Brake





Quick Details



1.  Motor power: 36V 250W BAFANG rear motor

2.  Frame material: Aluminum alloy 6061

3.  Lithium battery: 36V 10.4Ah Samsung cells

4.  Certification: EN15194

5.  Wheel size: 20”

6.  Brake system: Disc brake for front wheel; Shimano V brake for rear wheel

7.  Derailleur system: Shimano tourney TX55

8.  Pedals assisted system: Yes.  throttle can be optional



Product Descriptions



HP-E052 is one classic folding electric bike, that offers good power, weight distribution and attention to detail with matching components. Its step-thru frame makes it easy to mount and stand over for nearly any rider. So it’s popular in many countries, especially in Israel.



It’s amazing model in whole folding e-bike series. It’s the perfect size for small place, like apartment, closet or corner.  In addition to folding in half of downtube, the stem use newest round design, can be folding more easily.



We use bigger size comfortable saddle, easy to sit for any users. The saddle with flip-up action for easy battery removable. The chainwheel use 52T gears to match rear 6 speed freewheel, and can enhance human power efficiency by pedals.



We provide two drive modes on this bike, Pedals Assistant System and Accelerating system. And we install one convert switch on the right side of handlebar, when the user press one time, it will be connect PAS function, and press again, will be in accelerator mode. This will give driver two choices on the road, especially when tried.



Components



1.  BAFANG rear Gear motor, China famous electric bike motor supplier. This rear-drive motor, which has a rated power of 250W, a reduction ratio of 1: 4.42 and a maximum torque of 60 N.m, provides ideal power for vehicles. Strong and efficient, this motor greatly enhances riding comfort and is suitable for touring bikes, commuter bikes and mountain bikes.



2.  ZOOM suspension and brake system, we have test for nearly 10 years. We use this high quality parts, for many customers around the world. And feedback is very good until now.  We will continue to care more on user’s experiences to improve each details for our electric bike.



3.  KENDA on road tire with 2.125 size, provide safe and comfortable driving experiences.  The tire made with reflector strip, will enhance the safety in night or dark environment.  Electric bike is one green funny transportation tool, but not toy, so make safe products more important than any other features.



Specifications



Model number

HP-E052

Motor

BAFANG, 36V 250W rear GEAR motor

Battery

36V 10.4Ah lithium, SAMSUNG cells

Charge time

4-8h

Charger

110-240V, 36V 2A, plug can be customized

Controller

 36V 14A

Speed

25Km/h

Driving distance

45-55km by PAS

Weight

21.5Kgs

Packing dimension

860x460x715mm

Panel/speedometer

 LED style

Wheel

20”

Tire

20”x2.125, KENDA

Chain

1/2*3/32*114L, KMC rust-proof

Frame

Aluminum alloy 6061

Fork

20”, travel 100MM, 25.4*22.2*153L*102MM

Shift lever

Shimano 6 speed

Rear derailleur

Shimano RD-TX55

Front brake

ZOOM Disc Brake

Rear brake

Shimano V Brake

Brake levers

 Aluminum, 47PDD

Rims

Aluminum alloy,20”*1.75*36H*13G

Spokes

Front:13GX176/178; Rear:12GX123/125;

Pedals

Wellgo, with ball

Chainwheel

1/2*3/32*52T, aluminum

Cranks

Aluminum, 170L

Freewheel

14-28T

Handlebar

ZOOM Aluminum, W560

Stem

ZOOM Aluminum

Grip

140MM

Seat

Velo

Seat tube

Aluminum, 27.2*300*1.4T

Lamp

LED for front and rear

Wheel base

1030mm

Min ground clearance

90mm

Saddle ground clearance

Max:990mm; Min:790mm

Handlebar ground clearance

1120mm

Licence requirement

NO



Pictures Show



Red Citizen Lightweight Electric Folding Bike 20 Inch 36V 250W V Brake 0Red Citizen Lightweight Electric Folding Bike 20 Inch 36V 250W V Brake 1Red Citizen Lightweight Electric Folding Bike 20 Inch 36V 250W V Brake 2Red Citizen Lightweight Electric Folding Bike 20 Inch 36V 250W V Brake 3



Red Citizen Lightweight Electric Folding Bike 20 Inch 36V 250W V Brake 4



Red Citizen Lightweight Electric Folding Bike 20 Inch 36V 250W V Brake 5



Red Citizen Lightweight Electric Folding Bike 20 Inch 36V 250W V Brake 6



Red Citizen Lightweight Electric Folding Bike 20 Inch 36V 250W V Brake 7

Red Citizen Lightweight Electric Folding Bike 20 Inch 36V 250W V Brake 8Red Citizen Lightweight Electric Folding Bike 20 Inch 36V 250W V Brake 9Red Citizen Lightweight Electric Folding Bike 20 Inch 36V 250W V Brake 10Red Citizen Lightweight Electric Folding Bike 20 Inch 36V 250W V Brake 11
