Product Details:
Payment & Shipping Terms:
|
Color: | Black, Matt Black | Tire: | 700C MTB Tire |
---|---|---|---|
Speed: | 25km/h European Standard | Package Size: | 173x25x78cm |
Gears: | 27 Speed | Battery: | 800 Times Recycle |
Highlight: | 25km/H electric motorized mountain bike,electric motorized mountain bike 700C,350w electric mountain bikes for adults |
25km / h 350 Watt Motorized Mountain Bike Electric Bicycles 700C MTB tire
Quick Details
1. Motor power: 36V 350W BAFANG rear GEAR motor
2. Frame material: Aluminum alloy 6061
3. Lithium battery: 36V 10.4Ah Samsung cells
4. Certification: EN15194
5. Wheel size: 700C
6. Brake system: Shimano Disc brake for both wheels
7. Derailleur system: Shimano RD-M370
8. Pedals assisted system: Yes. throttle can be optional
Product Descriptions
This electric mountain bike is our new Design model in 2015, class as High end product series. This is an exciting bike, combine many high end parts, like Shimano mechanical Disc brake, Shimano Derailleur, BAFANG rear Gear hub motor, Tektro brake lever and RST hydraulic suspension. At present, main market is Europe and America.
This electric bike is a beautifully integrated Lithium-ion battery pack. The downtube is cut away in order to sink the pack “inside” part way which provides more security and strength while lowering the center of mass.
Components

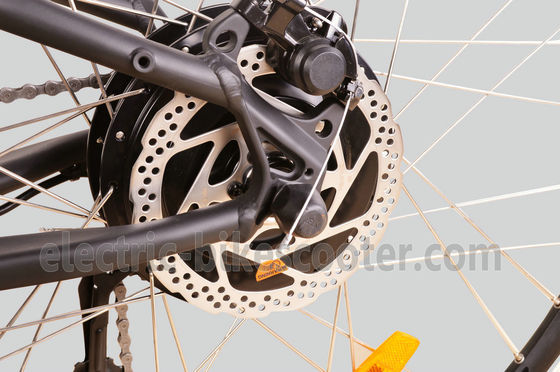

1. BAFANG rear gear motor, China famous electric bike motor supplier. This rear-drive motor, which is compatible with the disc brake, has a rated power of 250-500W, a reduction ratio of 1: 5 and a maximum torque of 48 N.m, providing ideal power for vehicles. Strong and efficient, this motor, working together with a cassette speed change mechanism, greatly enhances riding comfort and is suitable for touring bikes, commuter bikes and mountain bikes.
2. Shimano rear 9 speed, plus front 3 speed, can offer 27 level speed.
3. Shimano mechanical disc brake, bring high efficient brake performance.
4. RST fork, mountain bike series, made with oil pressure system, mechanical lock-out, adjustable pressure.
Key Features
Specifications
Model number |
EBS318 |
|
Motor |
BAFANG, 36V 350W rear GEAR motor |
|
Battery |
36V 10.4Ah lithium, SAMSUNG cells |
|
Charge time |
4-8h |
|
Charger |
110-240V, 36V 2A, plug can be customized |
|
Controller |
36V 14A |
|
Speed |
32Km/h |
|
Driving distance |
45-55km by PAS |
|
Weight |
26.50Kgs |
|
Packing dimension |
1730x250x780mm |
|
Panel/speedometer |
LCD display, JIATE new style |
|
Wheel |
700C |
|
Tire |
700Cx1.75, KENDA |
|
Chain |
1/2*3/32*118L, KMC rust-proof |
|
Frame |
Aluminum alloy 6061 |
|
Fork |
700C, travel 60MM, 28.6*25.4*230L*30*100MM |
|
Shift lever |
Shimano 9 speed |
|
Rear derailleur |
Shimano RD-M370 |
|
Front brake |
Shimano Mechanical Disc Brake |
|
Rear brake |
Shimano Mechanical Disc Brake |
|
Brake levers |
TEKTRO |
|
Rims |
Aluminum alloy,700C*1.75*36H*13G |
|
Spokes |
Front:13GX275/277; Rear:13GX231/233; |
|
Pedals |
Wellgo, with ball |
|
Chainwheel |
1/2*3/32*28/38/48T*170L |
|
Cranks |
Aluminum, 170L |
|
Freewheel |
11-32T, 9 level |
|
Handlebar |
ZOOM Aluminum, W620x2.0T |
|
Stem |
ZOOM Aluminum, adjustable |
|
Grip |
22.4/136MM, Black |
|
Seat |
KS8053, Gel |
|
Seat tube |
Aluminum with suspension, 27.2*300*2.0T |
|
Lamp |
LED for front |
|
Wheel base |
1270mm |
|
Min ground clearance |
110mm |
|
Saddle ground clearance |
Max:990mm; Min:790mm |
|
Handlebar ground clearance |
1100mm |
|
Licence requirement |
NO |
Pictures Show
