Red 38km/h Electric Pedal Assist Mountain Bike 48V 500W Gear Motor

China Red 38km/h Electric Pedal Assist Mountain Bike 48V 500W Gear Motor supplier
Red 38km/h Electric Pedal Assist Mountain Bike 48V 500W Gear Motor supplier Red 38km/h Electric Pedal Assist Mountain Bike 48V 500W Gear Motor supplier Red 38km/h Electric Pedal Assist Mountain Bike 48V 500W Gear Motor supplier Red 38km/h Electric Pedal Assist Mountain Bike 48V 500W Gear Motor supplier Red 38km/h Electric Pedal Assist Mountain Bike 48V 500W Gear Motor supplier Red 38km/h Electric Pedal Assist Mountain Bike 48V 500W Gear Motor supplier Red 38km/h Electric Pedal Assist Mountain Bike 48V 500W Gear Motor supplier Red 38km/h Electric Pedal Assist Mountain Bike 48V 500W Gear Motor supplier Red 38km/h Electric Pedal Assist Mountain Bike 48V 500W Gear Motor supplier Red 38km/h Electric Pedal Assist Mountain Bike 48V 500W Gear Motor supplier Red 38km/h Electric Pedal Assist Mountain Bike 48V 500W Gear Motor supplier

Large Image :  Red 38km/h Electric Pedal Assist Mountain Bike 48V 500W Gear Motor

Product Details:

Place of Origin: CHINA
Brand Name: DREAM WHEEL
Certification: EN15194
Model Number: HP-E004 CC

Payment & Shipping Terms:

Minimum Order Quantity: 5units
Price: USD
Packaging Details: Carton and protecting cover; 203pcs in 40" HQ
Delivery Time: 33days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 2500PCS per month
Detailed Product Description
Tire: 26" MTB Tire Color: Black, White, Red, Blue, Matt Black
Speed: 38km/h Package Size: 170x25x78cm
Gears: 7 Speed Brake: Tektro Hydraulic Disc Brakes
High Light:

38km/h electric pedal assist mountain bike

,

electric pedal assist mountain bike 48V 500W

,

EN15194 pedal assist full suspension mountain bike

Red Pedal Assist  high end lectric Mountain Bikes 48V 500W Gear Motor Cruiser Bicycle





Quick Details



1.  Motor power: 48V 500W DAPU rear GEAR motor

2.  Frame material: Aluminum alloy 6061

3.  Lithium battery: 48V 13Ah Samsung cells

4.  Certification: EN15194

5.  Wheel size: 26"

6.  Brake system: Tektro Hydraulic Disc brake for both wheels

7.  Derailleur system: Shimano RD-M390

8.  Pedals assisted system: Yes.  throttle can be optional



Product Descriptions



This electric mountain bike is our  classic model, But we have improve this bike with some more high end components. We have sold  in Canada market. It’s  a exciting experience to drive it.    It has got CE( EN15914) certification.  This electric city bike adopt Shimano 7 derailleur , and 48V 5000W DAPU classic rear mounted motor, can offer strong power to climb hills.  The max speed can reach 38km/h.



The brakes are powerful Tektro Hydraulic Disc Brakes in both the front and rear, providing quick stopping power. No matter drive in wet or dry road condition, always make excellent performance.



Components



1.  DAPU rear Gear motor, A famous electric bike motor supplier, the advanced technology from Japan. This rear-drive motor, which is compatible with the disc brake.



2.  RST fork, MTB trekking series, made with oil pressure system, adjustable preload, hydraulic remote lock-out.



3.  Tektro hydraulic disc brake, from TAIWANG high quality brake system supplier.



4.  Velo seat, high end seat supplier from TAIWAN, in any case, the wider and more comfortable seat can provide more experiences for riders.



5.  SPANNINGA high quality LED headlamp, from Netherlands



Specifications



Model number

HP-E004 CC

Motor

DAPU, 48V 500W rear GEAR motor

Battery

48V 13Ah lithium, SAMSUNG cells

Charge time

4-8h

Charger

110-240V, 48V 2.5A, plug can be customized

Controller

 48V 18A

Speed

32Km/h

Driving distance

55-66km by PAS

Weight

28.3Kgs

Packing dimension

1700x250x780mm

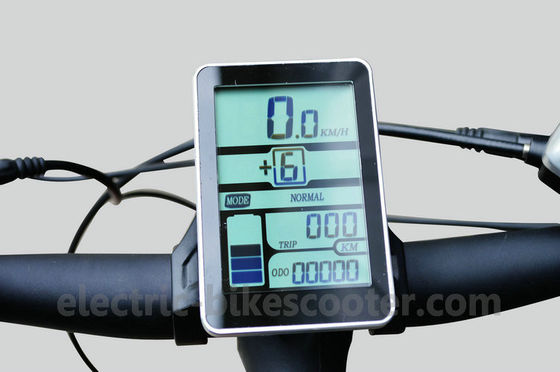

Panel/speedometer

 LCD style, DAPU

Wheel

26”

Tire

26”x1.75, KENDA off road tire

Chain

1/2*3/32*128L, KMC rust-proof

Frame

Aluminum alloy 6061

Fork

26”, travel 80MM, 28.6*25.4*250L*102MM

Shift lever

SL-TX50-7R

Rear derailleur

Shimano RD-M390

Front brake

TEKTRO Hydraulic Disc Brake

Rear brake

TEKTRO Hydraulic Disc Brake

Brake levers

 TEKTRO

Rims

Aluminum alloy,26”*1.75*36H*13G

Spokes

Front:13GX245/247; Rear:13GX207/209;

Pedals

Wellgo, with ball

Chainwheel

1/2*3/32*44T

Cranks

Aluminum, 170L

Freewheel

14-28T

Handlebar

ZOOM Aluminum, W610x2.0T

Stem

ZOOM Aluminum, Adjustable

Grip

92/135MM, black

Seat

Velo, 1663

Seat tube

Aluminum with suspension, 27.2*300*2.0T

Lamp

LED for front, SPANNINGA

Wheel base

1170mm

Min ground clearance

110mm

Saddle ground clearance

Max:990mm; Min:830mm

Handlebar ground clearance

1020mm

Licence requirement

NO



Pictures Show

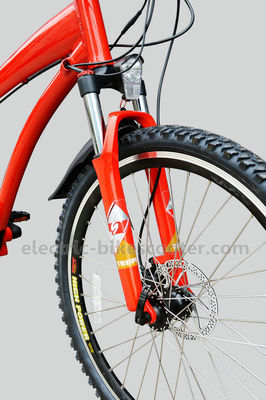

Red 38km/h Electric Pedal Assist Mountain Bike 48V 500W Gear Motor 0Red 38km/h Electric Pedal Assist Mountain Bike 48V 500W Gear Motor 1Red 38km/h Electric Pedal Assist Mountain Bike 48V 500W Gear Motor 2



Red 38km/h Electric Pedal Assist Mountain Bike 48V 500W Gear Motor 3



Red 38km/h Electric Pedal Assist Mountain Bike 48V 500W Gear Motor 4



Red 38km/h Electric Pedal Assist Mountain Bike 48V 500W Gear Motor 5



Red 38km/h Electric Pedal Assist Mountain Bike 48V 500W Gear Motor 6



Red 38km/h Electric Pedal Assist Mountain Bike 48V 500W Gear Motor 7



Red 38km/h Electric Pedal Assist Mountain Bike 48V 500W Gear Motor 8



Red 38km/h Electric Pedal Assist Mountain Bike 48V 500W Gear Motor 9

Red 38km/h Electric Pedal Assist Mountain Bike 48V 500W Gear Motor 10Red 38km/h Electric Pedal Assist Mountain Bike 48V 500W Gear Motor 11Red 38km/h Electric Pedal Assist Mountain Bike 48V 500W Gear Motor 12Red 38km/h Electric Pedal Assist Mountain Bike 48V 500W Gear Motor 13Red 38km/h Electric Pedal Assist Mountain Bike 48V 500W Gear Motor 14
