25km/H Electric Mountain Bicycle , Magnesium Alloy Electric Mountain Bikes For Men

China 25km/H Electric Mountain Bicycle , Magnesium Alloy Electric Mountain Bikes For Men supplier
25km/H Electric Mountain Bicycle , Magnesium Alloy Electric Mountain Bikes For Men supplier 25km/H Electric Mountain Bicycle , Magnesium Alloy Electric Mountain Bikes For Men supplier 25km/H Electric Mountain Bicycle , Magnesium Alloy Electric Mountain Bikes For Men supplier

Large Image :  25km/H Electric Mountain Bicycle , Magnesium Alloy Electric Mountain Bikes For Men

Product Details:

Place of Origin: CHINA
Brand Name: DREAM WHEEL
Certification: EN15194
Model Number: HP-E004 PLUS 02

Payment & Shipping Terms:

Minimum Order Quantity: 5units
Price: USD
Packaging Details: Carton and protecting cover; 203pcs in 40" HQ
Delivery Time: 30days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 2500PCS per month
Detailed Product Description
Color: Black, Matt Black Tire: 26" X 1.95 MTB Tire
Speed: 25km/h European Standard Package Size: 170x25x78cm
Fork: With Suspension Motor: 36V 350W
Highlight:

25km/h Electric Mountain Bicycle

,

26"x1.95 Electric Mountain Bicycle

,

350W electric mountain bikes for men

Black 26" Electric Mountain Bicycle Magnesium Alloy Complete Wheel Motor For Man





Quick Details



1.  Motor power: 36V 350W complete wheel motor

2.  Frame material: Aluminum alloy 6061

3.  Lithium battery: 36V 10.4Ah Samsung cells

4.  Certification: EN15194

5.  Wheel size: 26”

6.  Brake system: Disc brake for both wheels

7.  Derailleur system: Shimano RD-TX55

8.  Pedals assisted system: Yes.  throttle can be optional



Product Descriptions



For this electric mountain bike, we updated the wheel and motor since 2013. You can see, the black magnesium alloy complete wheel 350W motor and rim, integrated with frame and other components, make the whole bike more nice and sports.



As regarding the performance, this magnesium rim weight more light, and use life longer than normal spokes wheel.  And can avoid spokes broken risk.



And more, other components are the same as HP-E004 bike, so no need to keep special spare parts in stock for this bike.  It’s better to do services in the future.



Components



Zoom suspension, ZOOM disc brake, Shimano RD-TX55 derailleur, Kenda off road tire, KMC rust-proof chain, Velo mountain style saddle, magnesium alloy rim and quick released front hub, all this components make bike with the ultimate practical utility and unique style.





Key Features



25km/H Electric Mountain Bicycle , Magnesium Alloy Electric Mountain Bikes For Men 0





Specifications



Model number

HP-E004 plus 02

Motor

36V 350W complete wheel motor

Battery

36V 10.4Ah lithium, SAMSUNG cells

Charge time

4-8h

Charger

110-240V, 36V 2A, plug can be customized

Controller

 36V 17A

Speed

25-32Km/h

Driving distance

50-60km by PAS

Weight

25Kgs

Packing dimension

1700x250x780mm

Panel/speedometer

 LCD display

Wheel

26”

Tire

26”x1.95, KENDA off road tire

Chain

1/2*3/32*116L, KMC rust-proof

Frame

Aluminum alloy 6061

Fork

26”, travel 100MM, 28.6*25.4*253L*102MM

Shift lever

Shimano 6 speed

Rear derailleur

Shimano RD-TX55

Front brake

ZOOM Mechanical Disc Brake

Rear brake

ZOOM Mechanical Disc Brake

Brake levers

 Aluminum

Rims

Magnesium alloy

Spokes

--

Pedals

Wellgo, with ball

Chainwheel

1/2*3/32*44T*170L

Cranks

Aluminum, 170L

Freewheel

14-28T, 6 level

Handlebar

ZOOM Aluminum, W620x2.0T

Stem

ZOOM Aluminum, adjustable

Grip

95/140MM

Seat

Velo

Seat tube

Aluminum with suspension, 27.2*300*2.0T

Lamp

LED for front

Wheel base

1170mm

Min ground clearance

110mm

Saddle ground clearance

Max:990mm; Min:830mm

Handlebar ground clearance

1020mm

Licence requirement

NO

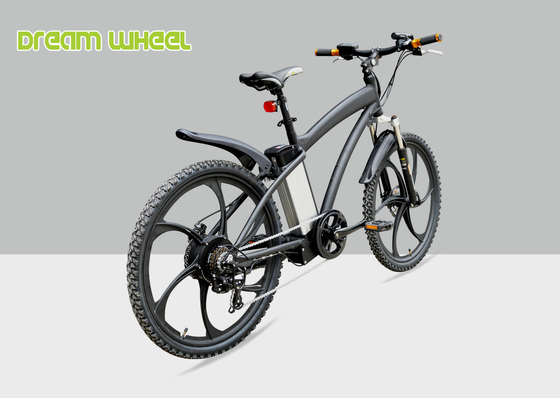

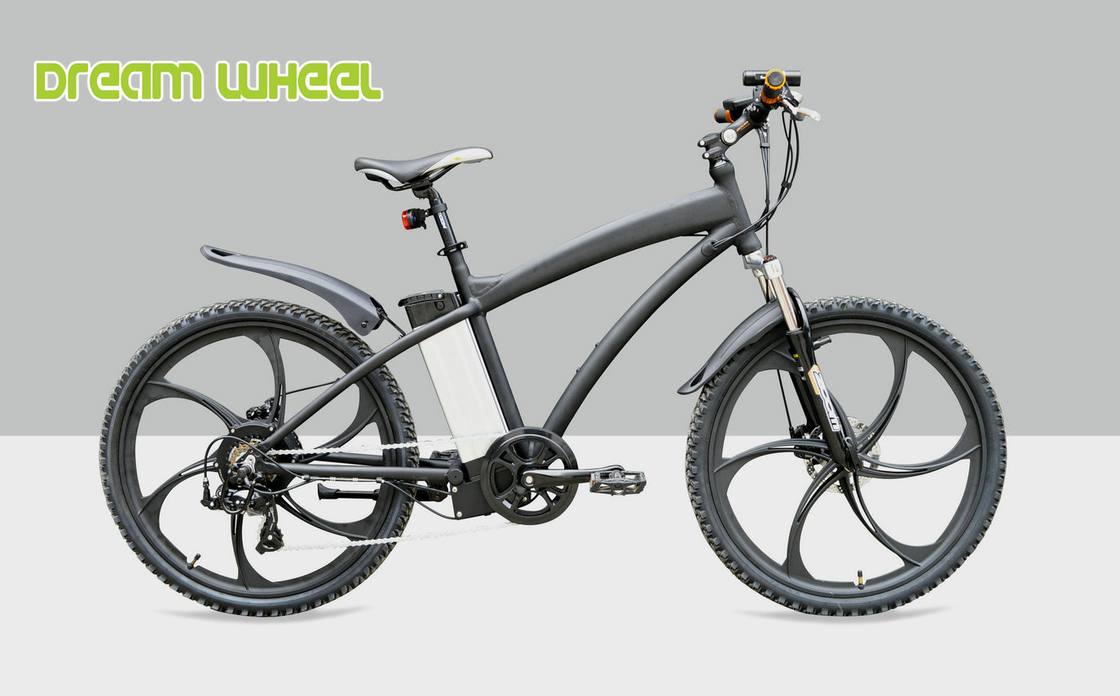

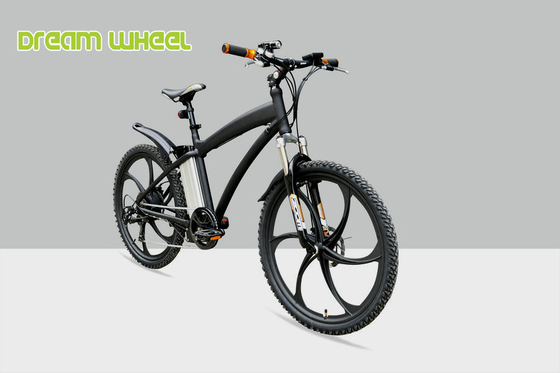

Pictures Show
