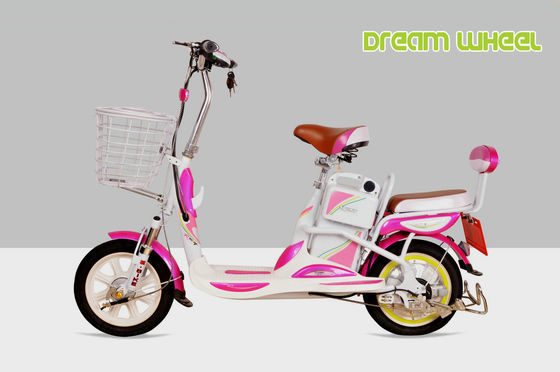

Mini Cool Pedal Assist Electric Bike 350W 48V Pink White Fashion Throttle System

China Mini Cool Pedal Assist Electric Bike 350W 48V Pink White Fashion Throttle System supplier
Mini Cool Pedal Assist Electric Bike 350W 48V Pink White Fashion Throttle System supplier Mini Cool Pedal Assist Electric Bike 350W 48V Pink White Fashion Throttle System supplier Mini Cool Pedal Assist Electric Bike 350W 48V Pink White Fashion Throttle System supplier Mini Cool Pedal Assist Electric Bike 350W 48V Pink White Fashion Throttle System supplier

Large Image :  Mini Cool Pedal Assist Electric Bike 350W 48V Pink White Fashion Throttle System

Product Details:

Place of Origin: CHINA
Brand Name: DREAM WHEEL
Certification: CE
Model Number: EBS530

Payment & Shipping Terms:

Minimum Order Quantity: 2 units
Price: USD
Packaging Details: Carton and protecting cover
Delivery Time: 30 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 3000pcs per month
Detailed Product Description
Color: Pink And White; Blue And White, Yellow And White Seat: Dual
Container Loading: 52pcs In 1x20"; 134pcs In 1x40"HQ Delivery Time: 30days For Full Container
High Light:

pedal assisted bicycle

,

pedal assist bike

Mini Cool Pedal Assist Electric Bike 350W 48V Pink White Fashion Throttle System



Quick Details



1.  Motor power: 48V 350W brushless motor

2.  Frame material: steel

3.  Lead Acid Gel battery: 48V 12Ah

4.  Wheel size: 14”

5.  Brake system: drum brake for both wheels

6.  Derailleur system: No

7.  Pedals assisted system and Throttle: Only throttle system now



Product Descriptions



EBS530 is one fashion electric bike with new design in 2014. The new design frame, seat and plastic cover integrated all colorful parts on one bike, looks beautiful and unique.



This bike also offer two seats.  The rear seat for child is better.   Battery box under seat, can take away very convenient.



The brake cables, use special cover will make cable more nice and quality.



Components



1.  48V 12Ah lead acid gel battery, made by TIANNENG, China motive power 1st  shares. China High quality electric bike battery power manufacturer.



2.  LED headlamp, turning lights and brake light.  Save battery power, make your drive more longer.



3.  Suspension fork, make your driving more comfortable.



4.  High strength frame, looks nice and ensure safety on the way.



5.  Big front basket, can take your goods very useful.  The rear brake with Lock motor function, make your bike more safe.



Specifications



Model number

EBS530

Motor

48V 350W rear brushless motor

Battery

48V 12Ah lead acid gel battery, removable easily

Charge time

4-8h

Charger

 48V 1.8A, plug can be customized

Controller

 48V 20A

Speed

32Km/h

Driving distance

35-40km

Weight

48Kgs

Packing dimension

1580x330x880mm

Panel/speedometer

 --

Driving mode

 Throttle only

Wheel

14”

Tire

14”x2.125

Chain

--

Frame

Paint with electrophoretic coating , 14”

Fork

Steel with suspension, 14”

Shift lever

--

Rear derailleur

--

Front brake

Drum Brake

Rear brake

Drum Brake with lock motor function

Brake levers

 Aluminum

Rims

Aluminum alloy

Spokes

--

Pedals

--

Chainwheel

--

Cranks

--

Freewheel

--

Handlebar

 Steel, W590

Stem

--

Grip

136MM

Seat

--

Seat tube

--

Headlamp

LED

Fenders

plastics

Wheel base

1170mm

Min ground clearance

110mm

Saddle ground clearance

Max:950mm; Min:810mm

Handlebar ground clearance

1050mm

Licence requirement

NO



Pictures Show



Mini Cool Pedal Assist Electric Bike 350W 48V Pink White Fashion Throttle System 0Mini Cool Pedal Assist Electric Bike 350W 48V Pink White Fashion Throttle System 1



Mini Cool Pedal Assist Electric Bike 350W 48V Pink White Fashion Throttle System 2



Mini Cool Pedal Assist Electric Bike 350W 48V Pink White Fashion Throttle System 3

Mini Cool Pedal Assist Electric Bike 350W 48V Pink White Fashion Throttle System 4Mini Cool Pedal Assist Electric Bike 350W 48V Pink White Fashion Throttle System 5Mini Cool Pedal Assist Electric Bike 350W 48V Pink White Fashion Throttle System 6Mini Cool Pedal Assist Electric Bike 350W 48V Pink White Fashion Throttle System 7Mini Cool Pedal Assist Electric Bike 350W 48V Pink White Fashion Throttle System 8
