CE 24 Inch Pedal Assist Electric Bike , Womens Pedal Assist Bike 36V Brushless Motor V Brake

China HANGZHOU DREAM WHEEL TECHNOLOGY CO.,LTD. certification
China HANGZHOU DREAM WHEEL TECHNOLOGY CO.,LTD. certification
Easy to talk, can make OEM, can provide drawing and parts list to us, it's really useful to us.

—— Mr.Carlo

Good services and efficient works, I'd like to work with them. Every month, can get new models data from them, save my time. Good guys.

—— Ms.Ana

I'm Online Chat Now

CE 24 Inch Pedal Assist Electric Bike , Womens Pedal Assist Bike 36V Brushless Motor V Brake

China CE 24 Inch Pedal Assist Electric Bike , Womens Pedal Assist Bike 36V Brushless Motor V Brake supplier
CE 24 Inch Pedal Assist Electric Bike , Womens Pedal Assist Bike 36V Brushless Motor V Brake supplier CE 24 Inch Pedal Assist Electric Bike , Womens Pedal Assist Bike 36V Brushless Motor V Brake supplier CE 24 Inch Pedal Assist Electric Bike , Womens Pedal Assist Bike 36V Brushless Motor V Brake supplier CE 24 Inch Pedal Assist Electric Bike , Womens Pedal Assist Bike 36V Brushless Motor V Brake supplier CE 24 Inch Pedal Assist Electric Bike , Womens Pedal Assist Bike 36V Brushless Motor V Brake supplier CE 24 Inch Pedal Assist Electric Bike , Womens Pedal Assist Bike 36V Brushless Motor V Brake supplier

Large Image :  CE 24 Inch Pedal Assist Electric Bike , Womens Pedal Assist Bike 36V Brushless Motor V Brake

Product Details:

Place of Origin: CHINA
Brand Name: DREAM WHEEL
Certification: CE
Model Number: EBS520

Payment & Shipping Terms:

Minimum Order Quantity: 2units
Price: USD279 to 350
Packaging Details: Carton and protecting cover
Delivery Time: 28 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 2500pcs per month
Detailed Product Description
Color: Black, Silver, White Package: Carton And Protecting Cover
Container Loading: 68pcs In 1x20"; 174pcs In 1x40"HQ Delivery Time: 28days For Full Container
Motor: 36V 350W Brushless Motor Lead Acid Gel Battery: 36V 12Ah
High Light:

24in Pedal Assist Electric Bike

,

36V 350W Pedal Assist Electric Bike

,

womens pedal assist bike 36V 12Ah

CE 24 Inch Pedal Assist Electric Bike, lady style E Bike 36V Brushless Motor V Brake



Quick Details



1.  Motor power: 36V 350W brushless motor

2.  Frame material: steel

3.  Lead Acid Gel battery: 36V 12Ah

4.  Wheel size: 24”

5.  Brake system: V brake for front wheel;  drum brake for rear wheel

6.  Derailleur system: No

7.  Pedals assisted system and Throttle: Yes



Product Descriptions



36V 350W brushless motor and 36V 12Ah battery, make this bike with mid level power and driving distance. In other words, it can meet most people daily needs, go work, go shopping and take children go to school. It has two storage space, front basket and rear trunk, can load charger, raincoat, lock or something else when you need.



And more, the cost of this bike is very economic, can be affordable for most people that love green transportation.  In one word, this is one bike combine economy and practical utility.



We make two drive modes, Pedals assistant system and Accelerator system for the market except Europe. As EU not allow to drive with Accelerator.



Components



36V 12Ah lead acid gel battery, made by TIANNENG, China motive power 1st  shares. China High quality electric bike battery power manufacturer.

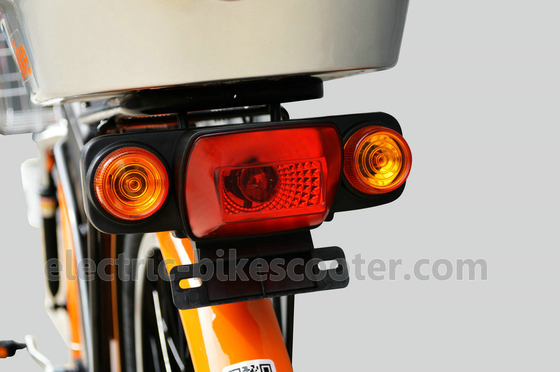

LED headlamp, turning lights and brake light.  Save battery power, make your drive more longer.



Suspension fork, make your driving more comfortable.



Comfortable seat, with flip system to take away battery easily.



High strength steel frame, paint with electrophoretic coating, to ensure frame rust-proof .





Specifications



Model number

EBS520

Motor

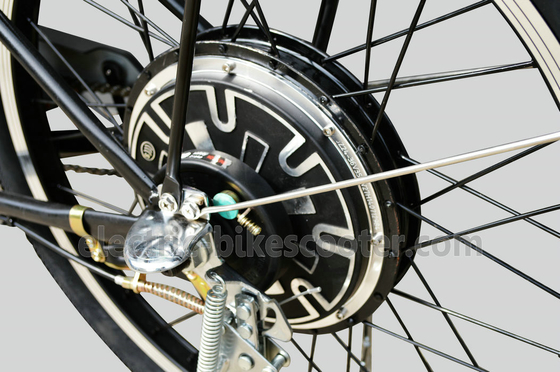

36V 350W rear brushless motor

Battery

36V 12Ah lead acid gel battery, removable

Charge time

4-8h

Charger

 36V 1.8A, plug can be customized

Controller

 36V 18A

Speed

32Km/h

Driving distance

35-40km by PAS

Weight

42Kgs

Packing dimension

1620x275x880mm

Panel/speedometer

 --

Driving mode

Pedals assisted and Throttle

Wheel

24”

Tire

24”x1.95,  on road tire

Chain

stainless

Frame

Paint with electrophoretic coating , 24”

Fork

Steel with suspension, 24”

Shift lever

--

Rear derailleur

--

Front brake

V Brake

Rear brake

Drum Brake with lock motor function

Brake levers

 Aluminum, 65PDD

Rims

Aluminum alloy,24”*1.75*36H*13G

Spokes

Front:13GX207; Rear:12GX209

Pedals

YONGHUA

Chainwheel

32T

Cranks

steel

Freewheel

16T

Handlebar

 Steel, W590

Stem

Steel

Grip

136MM

Seat

--

Seat tube

Steel, 25.4

Headlamp

LED

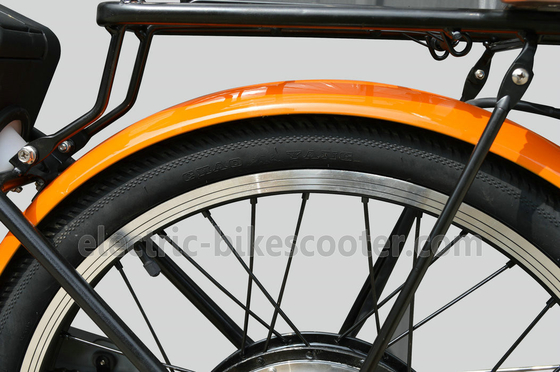

Fenders

steel

Wheel base

1170mm

Min ground clearance

110mm

Saddle ground clearance

Max:950mm; Min:810mm

Handlebar ground clearance

1050mm

Licence requirement

NO

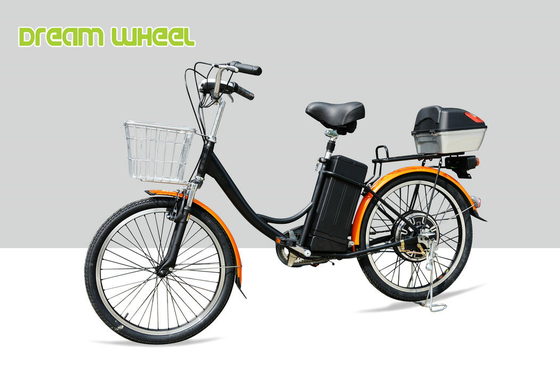

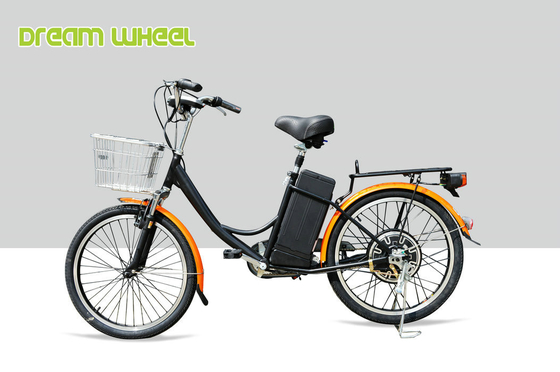

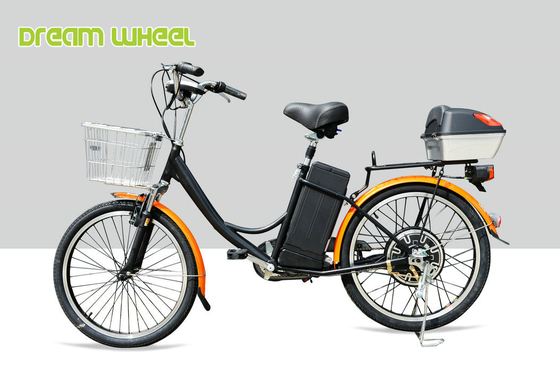

Pictures Show



CE 24 Inch Pedal Assist Electric Bike , Womens Pedal Assist Bike 36V Brushless Motor V Brake 0CE 24 Inch Pedal Assist Electric Bike , Womens Pedal Assist Bike 36V Brushless Motor V Brake 1CE 24 Inch Pedal Assist Electric Bike , Womens Pedal Assist Bike 36V Brushless Motor V Brake 2



CE 24 Inch Pedal Assist Electric Bike , Womens Pedal Assist Bike 36V Brushless Motor V Brake 3







CE 24 Inch Pedal Assist Electric Bike , Womens Pedal Assist Bike 36V Brushless Motor V Brake 4



CE 24 Inch Pedal Assist Electric Bike , Womens Pedal Assist Bike 36V Brushless Motor V Brake 5

CE 24 Inch Pedal Assist Electric Bike , Womens Pedal Assist Bike 36V Brushless Motor V Brake 6CE 24 Inch Pedal Assist Electric Bike , Womens Pedal Assist Bike 36V Brushless Motor V Brake 7CE 24 Inch Pedal Assist Electric Bike , Womens Pedal Assist Bike 36V Brushless Motor V Brake 8CE 24 Inch Pedal Assist Electric Bike , Womens Pedal Assist Bike 36V Brushless Motor V Brake 9CE 24 Inch Pedal Assist Electric Bike , Womens Pedal Assist Bike 36V Brushless Motor V Brake 10
