Product Details:
Payment & Shipping Terms:
|
| Motor: | 60V Brushless Hub Motor | Power: | 500W |
|---|---|---|---|
| Speed: | 40km/h | Colours: | Red, Black, Yellow, |
| Controller: | 12 Tubes | Climb Ability: | 15 Degree |
| Battery: | 60V 20Ah Removable Battery | ||
| High Light: | 40km/h pedal assist electric bike,60V 500W Pedal Assist Electric Bike,70km electric bike with pedal assist and throttle |
||
60v 20Ah removable battery narrow body two wheels Pedal Assisted Electric Bike/scooter with PAS and throttle
Quick Details
1. Motor power: 60V 500W rear brushless motor
2. Lead Acid Gel battery: 60V 20Ah removable
3. Tire size: 16”X 3.0
4. Brake system: Drum brakes for both wheel
5. Pedals assisted system and Throttle: Yes
6. Max Speed: 40km/h
Product Descriptions
EBS603 is one pedals assist electric bike/scooter. they are popular in North America. 60V 500W motor power, can keep strong performace, it's powerful to uphill. We have improved the electric motor and controller system, make them cooperating with optimal status, more powerful and save energy.
Another feature, the foot rest base is narrow, So the driver use pedals assist system to drive this e-bike eaily and comfortable.
Our 60V 20Ah lead acid battery are removable, made with double battery sets. More easier to take out.
Specifications
|
Model number |
EBS603 |
|
Motor |
60V 500W rear brushless motor |
|
Battery |
60V 20Ah lead acid gel battery, removable |
|
Charge time |
4-8h |
|
Charger |
60V 3A, plug can be customized |
|
Controller |
60V 32A |
|
Speed |
40Km/h |
|
Speed mode |
Single level |
|
Driving distance |
60-70km |
|
Weight |
83Kgs |
|
Packing dimension |
1620x450x860mm |
|
Package |
90% completed, one piece per carton |
|
Panel/speedometer |
Normal display |
|
Driving mode |
Pedals assisted and Throttle |
|
Alarm system |
Remote alarm |
|
Wheel |
16” |
|
Tire |
16”x3.0, CST tire |
|
Chain |
Normal |
|
Frame |
Paint with electrophoretic coating |
|
Fork |
Hydraulic suspension |
|
Shift lever |
-- |
|
Rear derailleur |
-- |
|
Front brake |
Drum Brake |
|
Rear brake |
Drum Brake |
|
Brake levers |
Aluminum |
|
Rims |
Aluminum alloy |
|
Spokes |
-- |
|
Pedals |
Normal |
|
Chainwheel |
28T |
|
Cranks |
steel |
|
Freewheel |
16T |
|
Handlebar |
Steel |
|
Stem |
-- |
|
Grip |
135MM |
|
Seat |
Lengthen, comfortable |
|
Seat tube |
-- |
|
Headlamp |
LED |
|
Fenders |
Plastics |
|
Wheel base |
1265mm |
|
Min ground clearance |
119mm |
|
Saddle ground clearance |
780mm |
|
Handlebar ground clearance |
1000mm |
|
Licence requirement |
No |

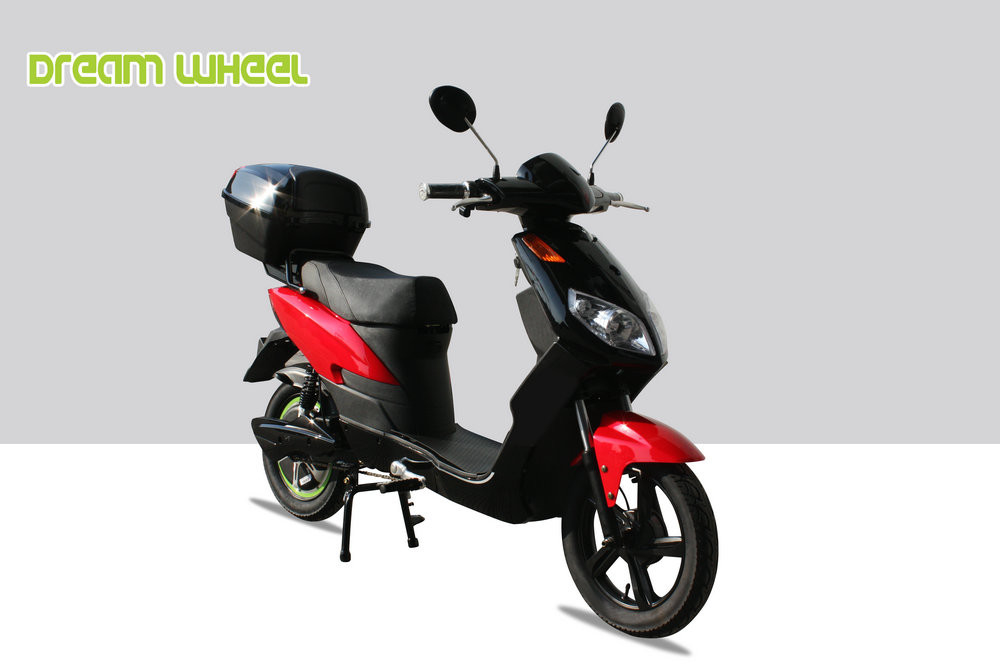

Pictures Show
