Product Details:
Payment & Shipping Terms:
|
Color: | Black, White, Red, Blue | Tire: | 12" X 2.125 |
---|---|---|---|
Speed: | 25km/h | Fork: | Aluminum |
Motor: | 36V 250W | Battery: | 36V 7.8Ah Lithium Battery |
Weight: | 14.5kgs | ||
High Light: | 25km/h aluminum folding electric bike,aluminum folding electric bike 36V 250W,12in mini folding electric bicycle |
12 Inch Aluminum Frame Mini Smallest Folding Electric Bike Motor Powerd
Quick Details
1. Motor power: 36V 250W
2. Frame material: Aluminum alloy 6061
3. Lithium battery: 36V 7.8Ah Samsung cells
4. Certification: EN15194
5. Wheel size: 12”
6. Brake system: V brake for FRONT
7. Derailleur system: No
8. Pedals assisted system: Yes
Product Descriptions
Dream Wheel Technology, focused on Light Electric Vehicle since 2006. offers a state of the art battery and frame design, and artfully combines the highest quality parts from the most competitive manufacturers Shimano, ZOOM, KENDA, KMC and VELO, to make reliable products.
This smart mini electric folding bike, it’s our new design model in 2016. The wheel made by 12 inch aluminum alloy. The frame adopt advanced folding technology, much easier to fold and open. After folding, the size similar as one 24” trolley case. You can lay the smart bike in car, bus, train to have a short trip.
Components
1. Latest design frame , the main frame use high strength aluminum alloy and advanced melt technology, have passed 100,000 times vibration test.
2. Velo seat, high end seat supplier from TAIWAN, one of the biggest seat manufacturer in the world since 1979.
3. KENDA on road tire, provide safe and comfortable driving experiences. The tire made with reflector strip, will enhance the safety in night or dark environment. Electric bike is one funny transportation tool, but not toy, so make safe products more important than any other features.
4. Chain wheel, use two-sided design, safe and looks nice.
Specifications
Model number | EBS130 | |
Motor | 36V 250W rear motor | |
Battery | 36V 7.8Ah lithium | |
Charge time | 4-8h | |
Charger | 110-240V, 36V 2A, plug can be customized | |
Controller | 36V 14A | |
Speed | 25Km/h | |
Driving distance | 40-50km by PAS | |
Weight | 14.5Kgs | |
Packing dimension | 600x350x480mm | |
Panel/speedometer | LED style | |
Wheel | 12” | |
Tire | 12”x2.125, KENDA on road tire | |
Chain | KMC rust-proof | |
Frame | Aluminum alloy 6061 | |
Fork | 12” | |
Shift lever | -- | |
Rear derailleur | -- | |
Front brake | V Brake | |
Rear brake | Expanding Brake | |
Brake levers | Aluminum | |
Rims | Aluminum alloy,12”*2.125 | |
Spokes | -- | |
Pedals | Wellgo, foldable | |
Chainwheel | 1/2*3/32*44T, aluminum | |
Cranks | Aluminum, 170L | |
Freewheel | -- | |
Handlebar | Aluminum | |
Stem | ZOOM Aluminum | |
Grip | 135MM | |
Seat | Velo | |
Seat tube | Aluminum, 27.2*300*2.0T | |
Lamp | -- | |
Wheel base | 920mm | |
Min ground clearance | 76mm | |
Saddle ground clearance | Max:910mm; Min:580mm | |
Handlebar ground clearance | 1020mm | |
Licence requirement | NO |

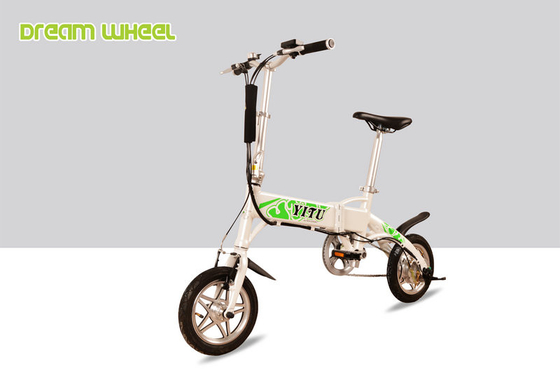

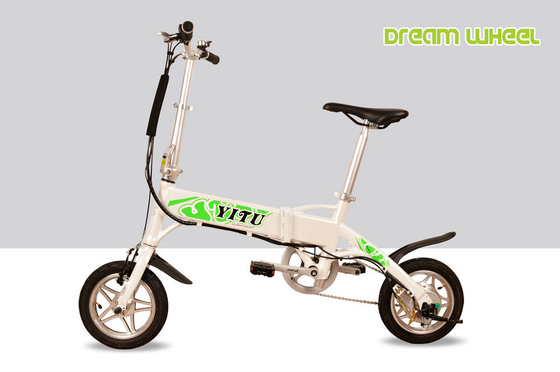

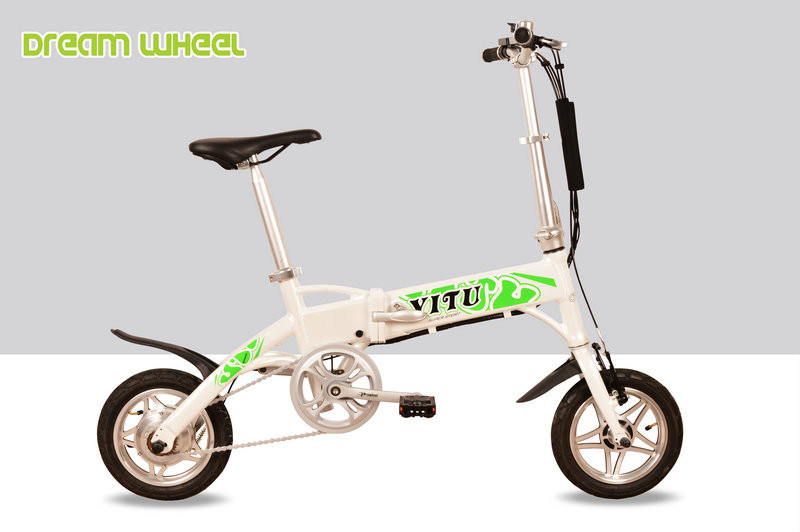

Pictures Show
