Product Details:
Payment & Shipping Terms:
|
| Motor: | Three Phase Motor | Power: | 250W-600W |
|---|---|---|---|
| Speed: | 25-32km/h | Colours: | Red, Black, White |
| Controller: | Three Phase | Climb Ability: | 12 Degree |
| Highlight: | Pedal Assisted Electric Scooter 32km/H,RoHS Pedal Assisted Electric Scooter,60km pedal assisted electric moped |
||
Power Rohs Certificated Pedal Assisted Electric Scooter Bike For Adults
Quick Details
1. Motor power: 48V 500W three phase motor
2. Lead Acid Gel battery: 48V 20Ah
3. Tire size: 16”X 2.5
4. Brake system: Drum brakes for both wheel
5. Pedals assisted system and Throttle: Yes
6. Max Speed: 32km/h
Product Descriptions
HP-E72 is one classic pedals assist electric scooter for many years, they are popular in Europe and North America since 2010. 48V 500W can offer strong powerful, to overcome various road condition. The battery can be removable.
Another feature, the foot rest base is narrow, only 27cm width. So the driver use pedals assist system is comfortable.
Components
- Drum brake system. This electric scooter installed drum brakes for front and rear wheel, to make good performance and balance cost.
- LED headlamps design, to make the scooter see longer and clearly. Also save electricity for whole scooter.
- Full suspension system.
- Digital speedometer, to display more information, like battery power, speed, lights.
Specifications
|
Model number |
HP-E72 |
|
Motor |
48V 500W three phase motor |
|
Battery |
48V 20Ah lead acid gel battery, removable |
|
Charge time |
4-8h |
|
Charger |
48V 2.5A, plug can be customized |
|
Controller |
48V 28A |
|
Speed |
32Km/h |
|
Speed mode |
3 level |
|
Driving distance |
50-60km by PAS |
|
Weight |
78Kgs |
|
Packing dimension |
1600x450x1000mm |
|
Package |
90% completed, one piece per carton |
|
Panel/speedometer |
Digital display |
|
Driving mode |
Pedals assisted and Throttle |
|
Alarm system |
Remote alarm |
|
Wheel |
16” |
|
Tire |
16”x2.5, CST tire |
|
Chain |
stainless |
|
Frame |
Paint with electrophoretic coating |
|
Fork |
Hydraulic suspension |
|
Shift lever |
-- |
|
Rear derailleur |
-- |
|
Front brake |
Drum Brake |
|
Rear brake |
Drum Brake |
|
Brake levers |
Aluminum |
|
Rims |
Aluminum alloy |
|
Spokes |
-- |
|
Pedals |
Foldable |
|
Chainwheel |
28T |
|
Cranks |
steel |
|
Freewheel |
16T |
|
Handlebar |
Steel |
|
Stem |
-- |
|
Grip |
136MM |
|
Seat |
Lengthen, comfortable |
|
Seat tube |
-- |
|
Headlamp |
LED |
|
Fenders |
Plastics |
|
Wheel base |
1245mm |
|
Min ground clearance |
120mm |
|
Saddle ground clearance |
770mm |
|
Handlebar ground clearance |
980mm |
|
Licence requirement |
250W no need for EU; 500W no need for North America |

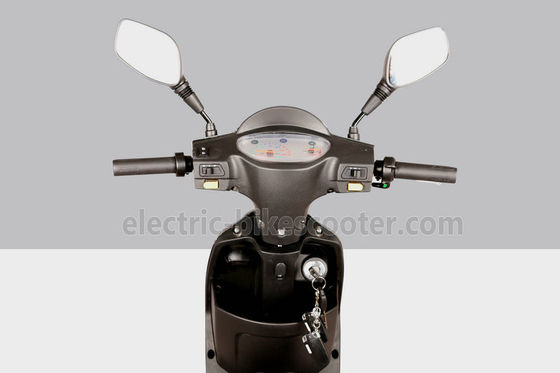

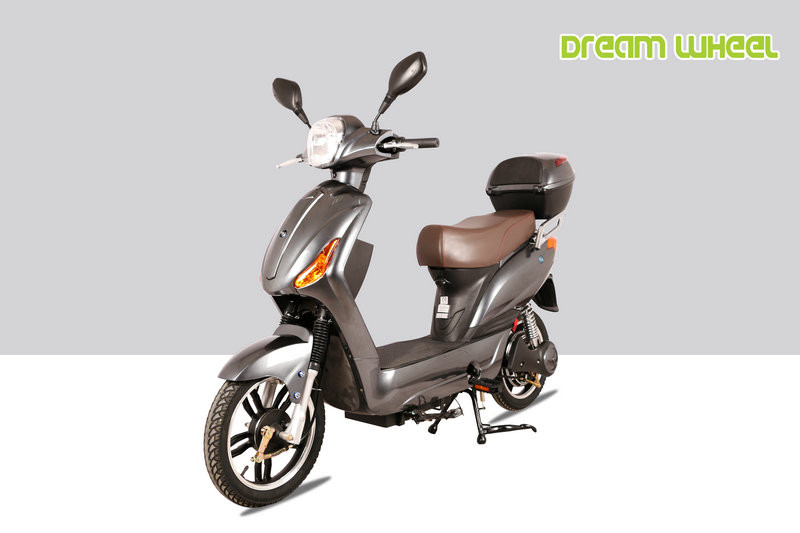

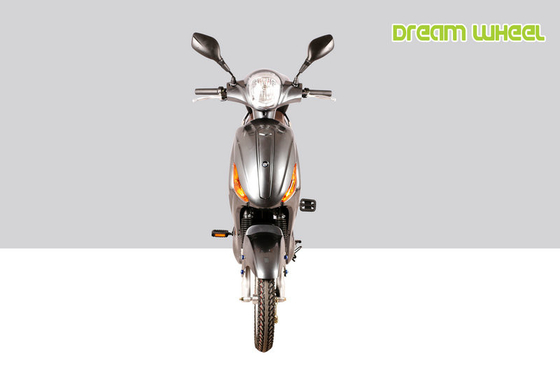

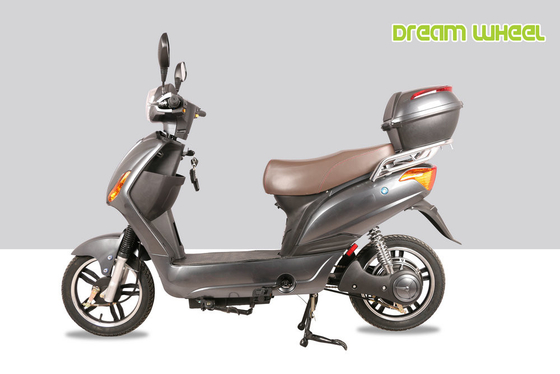

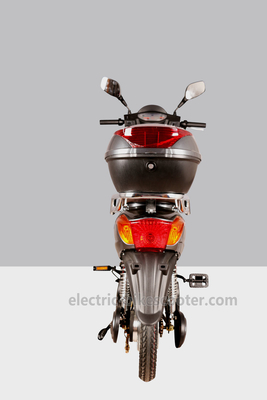

Pictures Show
