28km/H Fat Tire Cruiser Ebike Front Motor Pedals Assisted Disc Brake

China 28km/H Fat Tire Cruiser Ebike Front Motor Pedals Assisted Disc Brake supplier
28km/H Fat Tire Cruiser Ebike Front Motor Pedals Assisted Disc Brake supplier 28km/H Fat Tire Cruiser Ebike Front Motor Pedals Assisted Disc Brake supplier

Large Image :  28km/H Fat Tire Cruiser Ebike Front Motor Pedals Assisted Disc Brake

Product Details:

Place of Origin: CHINA
Brand Name: DREAM WHEEL
Certification: EN15194
Model Number: EBS018-02

Payment & Shipping Terms:

Minimum Order Quantity: 5 units
Price: USD
Packaging Details: Carton and protecting cover
Delivery Time: 35 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1500pcs per month
Contact Now
Detailed Product Description
Color: Black, Orange, Blue, Yellow, Camouflage Drive Place: Beach And Snow Road
Container Loading: 67pcs In 1x20"; 138pcs In 1x40"HQ Delivery Time: 35days For Full Container
Frame: Aluminum Alloy Tire: 26" X 4.0
High Light:

28km/H fat tire cruiser ebike

,

50km fat tire cruiser ebike

,

27Kgs electric beach cruiser fat tire

4 Electric Bike Beach Cruiser Fat Bicycle Front Motor Pedals Assisted Disc Brake



Quick Details



1.  Motor power: 36V 350W front Gear motor

2.  Lithium battery: 36V 10Ah

3.  Wheel size: 26”

4.  Brake system: Disc brake for both wheels

5.  Derailleur system: Shimano 6 speed

6.  Pedals assisted system and Throttle: Yes



Product Descriptions



This bike design for beach sands, sales well in DUBAI.  36V 350W BAFANG front Gear motor, can offer max torque with 40 N.m,  run on sands or snow or uphill more easily.   The 4.0 inch tire can be competent for most road condition.  This bike also support Shimano Nexus Inter derailleur.



Without the need for a traditional license or registration,100% fully electric bikes mean no need for gas & no need for additional pollution into our environment. The riding position and huge four-inch tires make it the most comfortable bike you'll ever ride! It is also very nimble and easy to ride.



We make two drive modes, Pedals assistant system and Accelerator system for the market except Europe. As EU not allow to drive with Accelerator.



Specifications



Model number

EBS018-02

Motor

BAFANG, 36V 350W front GEAR motor

Battery

36V 10Ah lithium, SAMSUNG cells

Charge time

4-8h

Charger

110-240V, 36V 2A, plug can be customized

Controller

 36V 18A

Speed

28Km/h

Driving distance

40-50km by PAS

Weight

27Kgs

Packing dimension

1730x320x780mm

Panel/speedometer

 LED style

Wheel

26”

Tire

26”x4.0, KENDA SNOW tire

Chain

1/2*3/32*136L, KMC rust-proof

Frame

Aluminum alloy 6061

Fork

26”, steel

Shift lever

Shimano 6 speed

Rear derailleur

Shimano RD-TX55

Front brake

Disc Brake

Rear brake

Disc Brake

Brake levers

 Aluminum

Rims

Aluminum alloy,26”*4.0*36H*13G

Spokes

Front:13GX257/259; Rear:13GX217/219;

Pedals

Wellgo, with ball

Chainwheel

1/2*3/32*44T*170L

Cranks

Aluminum, 170L

Freewheel

14-28T, 6 level

Handlebar

ZOOM Aluminum, W620x2.0T

Stem

ZOOM Aluminum, adjustable

Grip

95/140MM

Seat

Velo

Seat tube

Aluminum with suspension, 27.2*300*1.2T

Lamp

LED for front

Wheel base

1110mm

Min ground clearance

110mm

Saddle ground clearance

Max:990mm; Min:830mm

Handlebar ground clearance

1040mm

Licence requirement

NO



Components



ZOOM disc brake, Shimano RD-TX55 derailleur, Kenda 26"x4.0 beach tire, KMC rust-proof chain, Velo mountain style saddle, BAFANG FRONT gear motor and quick released front hub, all this components make beach bike with the ultimate

performance.



Key Features



28km/H Fat Tire Cruiser Ebike Front Motor Pedals Assisted Disc Brake 0

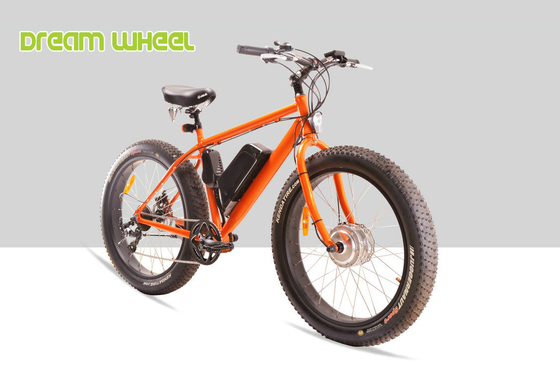

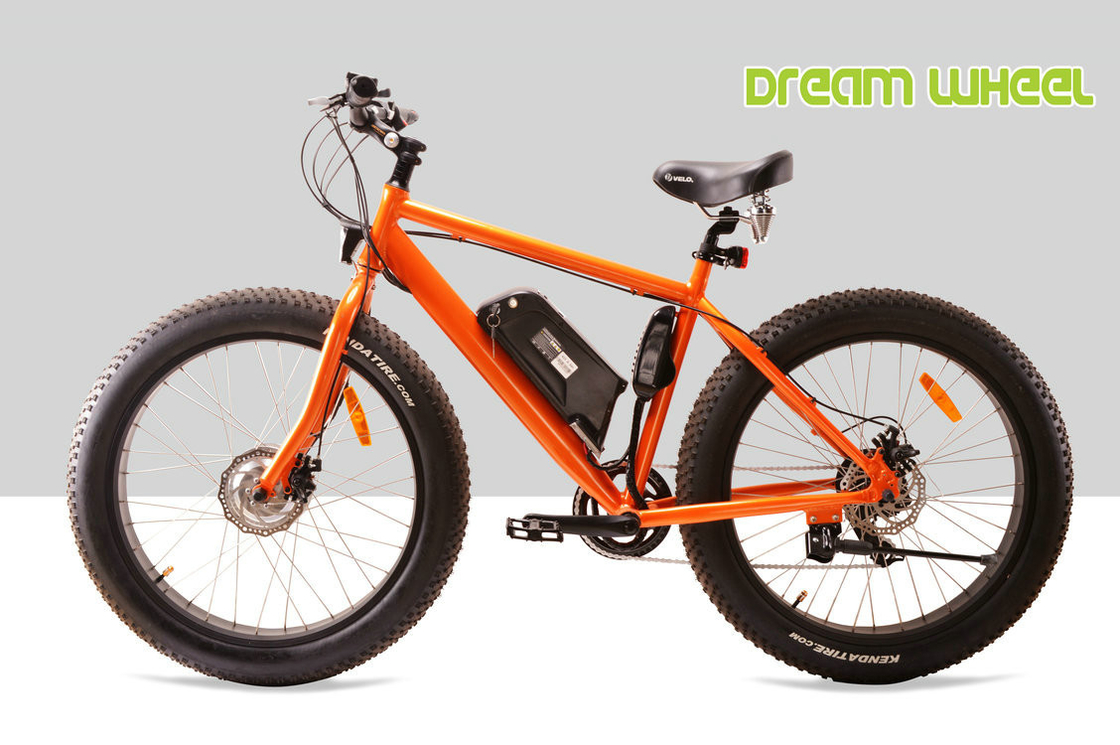

Pictures Show



28km/H Fat Tire Cruiser Ebike Front Motor Pedals Assisted Disc Brake 128km/H Fat Tire Cruiser Ebike Front Motor Pedals Assisted Disc Brake 228km/H Fat Tire Cruiser Ebike Front Motor Pedals Assisted Disc Brake 328km/H Fat Tire Cruiser Ebike Front Motor Pedals Assisted Disc Brake 4



28km/H Fat Tire Cruiser Ebike Front Motor Pedals Assisted Disc Brake 5



28km/H Fat Tire Cruiser Ebike Front Motor Pedals Assisted Disc Brake 6



28km/H Fat Tire Cruiser Ebike Front Motor Pedals Assisted Disc Brake 7



28km/H Fat Tire Cruiser Ebike Front Motor Pedals Assisted Disc Brake 8

28km/H Fat Tire Cruiser Ebike Front Motor Pedals Assisted Disc Brake 928km/H Fat Tire Cruiser Ebike Front Motor Pedals Assisted Disc Brake 1028km/H Fat Tire Cruiser Ebike Front Motor Pedals Assisted Disc Brake 1128km/H Fat Tire Cruiser Ebike Front Motor Pedals Assisted Disc Brake 1228km/H Fat Tire Cruiser Ebike Front Motor Pedals Assisted Disc Brake 13
