Product Details:
Payment & Shipping Terms:
|
Color: | White, Black, Blue, Silver, Red | Package: | Carton And Protecting Cover |
---|---|---|---|
Have Sold In: | USA, Australia, Italy, Colombia, Canada | Delivery Time: | 25days For LCL |
Motor: | 48V 500W Bafang Rear Motor | Battery: | 48V 13Ah |
Highlight: | 20mph Electric Urban Bike,48V 500W Electric Urban Bike,32km/h ladies electric city bike |

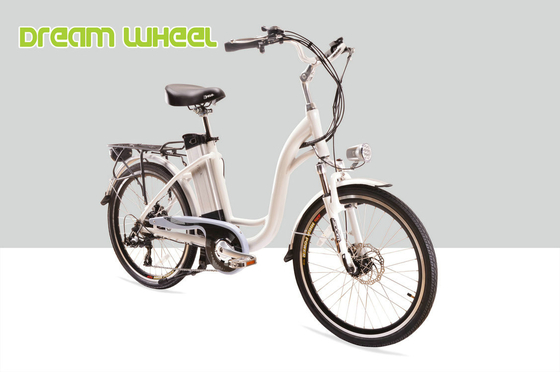

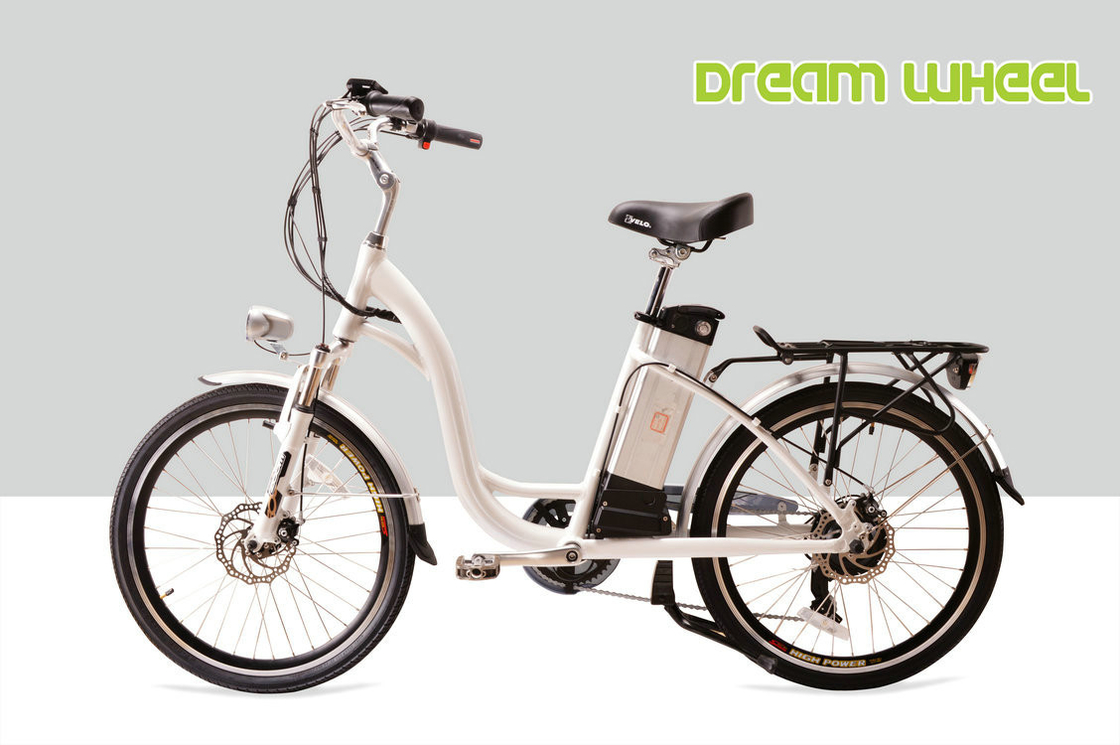

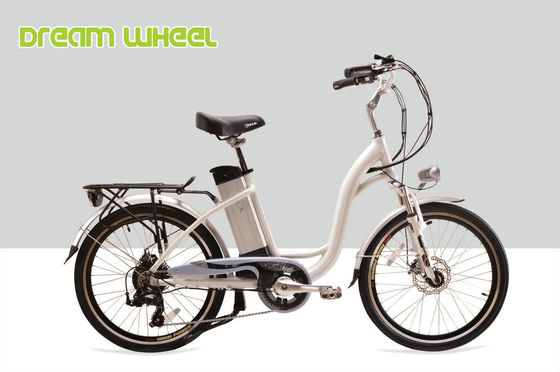

48V 500W 32 km/h City E Bike 24” Wheel Womens Cruiser electric Bicycles Blue / Silver / Red
1. Motor power: 48V 500W BAFANG rear GEAR motor
2. Frame material: Aluminum alloy 6061
3. Lithium battery: 48V 13Ah Samsung cells
4. Certification: EN15194
5. Wheel size: 24"
6. Brake system: Disc brake for both wheel
7. Derailleur system: Shimano
8. Pedals assisted system: Yes
This electric city cruiser bike is our classic lady style model, we have sold for 5 years in Canada, Colombia and Australia. 24” frame design, it’s more convenient for lady drive. This electric city bike adopt Shimano 6 speed , and 48V 500W BAFANG classic rear gear motor, can give driver more help to meet various road condition. For this model, 26” frame is also available.
1. BAFANG rear Gear motor, China famous electric bike motor supplier. This rear-drive motor, which has a rated power of 500W, provides ideal power for the bikes. Strong and efficient, this motor greatly enhances riding comfort and is suitable for touring bikes, commuter bikes and mountain bikes.
2. Shimano TX rear derailleur
more positive gear-changing due to less flex in the parallelogram
better gear-changing with good cable leverage
better obstruction clearance
less danger of catching spokes.
slight weight savings.
3. ZOOM dual disc brakes, The brakes are powerful Disc Brakes in both the front and rear, providing quick stopping power.
4. ZOOM fork, city trekking series, made with Spring pressure system, adjustable preload, mechanical easy lock-out.
5. Velo seat, high end seat supplier from TAIWAN, in any case, the wider and more comfortable seat can provide more experiences for riders.
6. high quality LED headlamp and tail light, from Wuxing company.
Key Features
Specifications
Model number |
EBS224-02 |
|
Motor |
BAFANG, 48V 500W rear GEAR motor |
|
Battery |
48V 13Ah lithium, SAMSUNG cells |
|
Charge time |
4-8h |
|
Charger |
110-240V, 48V 2.5A, plug can be customized |
|
Controller |
48V 18A |
|
Speed |
32Km/h |
|
Driving distance |
50-60km by PAS |
|
Weight |
27.5Kgs |
|
Packing dimension |
1700x250x780mm |
|
Panel/speedometer |
LED style |
|
Wheel |
24” |
|
Tire |
24”x1.75, KENDA on road tire |
|
Chain |
1/2*3/32*124L, KMC rust-proof |
|
Frame |
Aluminum alloy 6061 |
|
Fork |
24”, travel 125MM, 28.6*25.4*202L*125MM |
|
Shift lever |
Shimano 6 speed, TX50-6R |
|
Rear derailleur |
Shimano RD-TX55 |
|
Front brake |
ZOOM Disc Brake |
|
Rear brake |
ZOOM Disc Brake |
|
Brake levers |
Aluminum, 47PDD |
|
Rims |
Aluminum alloy,24”*1.75*36H*13G |
|
Spokes |
Front:13GX221/223; Rear:13GX183/184; |
|
Pedals |
Wellgo, with ball |
|
Chainwheel |
1/2*3/32*44T, aluminum |
|
Cranks |
Aluminum, 170L |
|
Freewheel |
14-28T |
|
Handlebar |
ZOOM Aluminum, W610x2.0T |
|
Stem |
ZOOM Aluminum |
|
Grip |
92/135MM |
|
Seat |
Velo |
|
Seat tube |
Aluminum, 27.2*300*2.0T |
|
Lamp |
LED for front and rear |
|
Wheel base |
1070mm |
|
Min ground clearance |
105mm |
|
Saddle ground clearance |
Max:950mm; Min:730mm |
|
Handlebar ground clearance |
1050mm |
|
Licence requirement |
NO |
