Gear Motor Electric Urban Bike 48V 500W With Tektro Hydraulic Disc Brake

China Gear Motor Electric Urban Bike 48V 500W With Tektro Hydraulic Disc Brake supplier
Gear Motor Electric Urban Bike 48V 500W With Tektro Hydraulic Disc Brake supplier Gear Motor Electric Urban Bike 48V 500W With Tektro Hydraulic Disc Brake supplier Gear Motor Electric Urban Bike 48V 500W With Tektro Hydraulic Disc Brake supplier Gear Motor Electric Urban Bike 48V 500W With Tektro Hydraulic Disc Brake supplier Gear Motor Electric Urban Bike 48V 500W With Tektro Hydraulic Disc Brake supplier Gear Motor Electric Urban Bike 48V 500W With Tektro Hydraulic Disc Brake supplier Gear Motor Electric Urban Bike 48V 500W With Tektro Hydraulic Disc Brake supplier

Large Image :  Gear Motor Electric Urban Bike 48V 500W With Tektro Hydraulic Disc Brake

Product Details:

Place of Origin: CHINA
Brand Name: DREAM WHEEL
Certification: EN15194
Model Number: HP-E006

Payment & Shipping Terms:

Minimum Order Quantity: 5 units
Price: USD
Packaging Details: Carton and protecting cover
Delivery Time: 20-25days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 2000pcs per month
Contact Now
Detailed Product Description
Wheel Size: 26" Color: White, Black, Blue, Silver, Grey,Red
Package: Carton And Protecting Cover Have Sold In: Italy, Sweden, Australia, Israel, Colombia, Canada
Delivery Time: 25days For LCL Motor: 48V 500W DAPU Rear GEAR Motor
Lithium Battery: 48V 13Ah Samsung Cells Frame Material: Aluminum Alloy 6061
High Light:

Electric Urban Bike 48V 500W

,

32km/h Electric Urban Bike

,

Al6061 electronic city bike

Gear Motor Electric City Bike 48V 500W With Tektro Hydraulic Disc Brake





Quick Details


1.    Motor power: 48V 500W DAPU rear GEAR motor
2.    Frame material: Aluminum alloy 6061
3.    Lithium battery: 48V 13Ah Samsung cells
4.    Certification: EN15194
5.    Wheel size: 26"
6.    Brake system: Tektro Hydraulic Disc brake for both wheel
7.    Derailleur system: Shimano RD-M390
8.    Pedals assisted system: Yes



Product Descriptions



This electric city bike is our  classic model, But we have improve this bike with some more high end components. We have sold  in Canada market. It’s  a exciting experience to drive it.  This electric city bike adopt Shimano out 7 derailleur , and 48V 5000W DAPU classic rear motor, can offer strong power to climb hills.  The max speed can reach 38km/h.



The brakes are powerful Tektro Hydraulic Disc Brakes in both the front and rear, providing quick stopping power. No matter drive in wet or dry road condition, always make safe first performance.



The cruiser frame design, it’s convenient for both men and ladies. It will be best choice in various road condition.



Specifications





Model number HP-E006
Motor DAPU, 48V 500W rear GEAR motor
Battery 48V 13Ah lithium, SAMSUNG cells
Charge time 4-8h
Charger 110-240V, 48V 2.5A, plug can be customized
Controller 48V 18A
Speed 32Km/h
Driving distance 55-66km by PAS
Weight 28.5Kgs
Packing dimension 1700x250x780mm

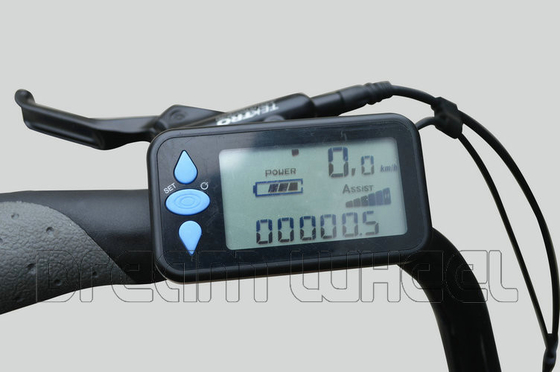

Panel/speedometer LCD style, DAPU
Wheel 26”
Tire 26”x1.75, KENDA on road tire
Chain 1/2*3/32*128L, KMC rust-proof
Frame Aluminum alloy 6061
Fork 26”, travel 75MM, 28.6*25.4*173L*102MM
Shift lever SL-TX50-7R
Rear derailleur Shimano RD-M390

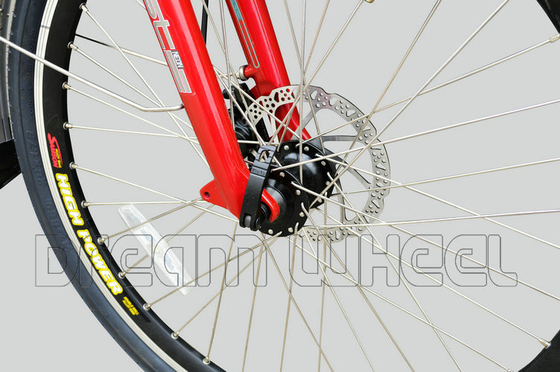

Front brake TEKTRO Hydraulic Disc Brake
Rear brake TEKTRO Hydraulic Disc Brake

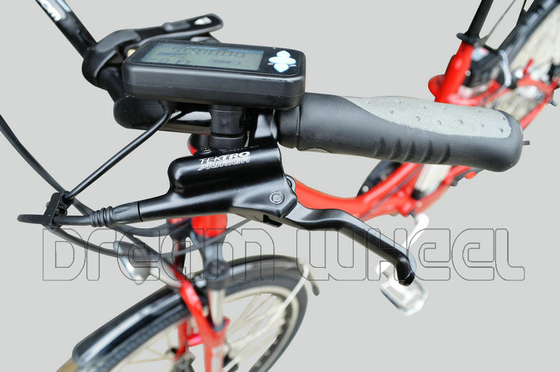

Brake levers TEKTRO
Rims Aluminum alloy,26”*1.75*36H*13G
Spokes Front:13GX245/247; Rear:13GX243/242;
Pedals Wellgo, with ball
Chainwheel 1/2*3/32*44T
Cranks Aluminum, 170L
Freewheel 14-28T
Handlebar ZOOM Aluminum, W610x2.0T
Stem ZOOM Aluminum, Adjustable
Grip 92/135MM, black
Seat Velo, 1663
Seat tube Aluminum with suspension, 27.2*300*2.0T
Lamp LED for front, SPANNINGA
Wheel base 1170mm
Min ground clearance 110mm
Saddle ground clearance Max:990mm; Min:790mm
Handlebar ground clearance 1150mm
Licence requirement NO



Components



1.  Front hub, use quick release style



2.  DAPU rear Gear motor, A famous electric bike motor supplier, the advanced technology from Japan. This rear-drive motor, which is compatible with the disc brake, has a rated power of 250-500W, a reduction ratio of 1: 5 and a maximum torque of 48 N.m, providing ideal power for many e-vehicles.



3.  RST fork, city trekking series, made with oil pressure system, adjustable preload, hydraulic remote lock-out.



4.  Tektro hydraulic disc brake, from TAIWAN high quality brake system supplier.



5.  Velo seat, high end seat supplier from TAIWAN, in any case, the wider and more comfortable seat can provide more experiences for riders.



6.  SPANNINGA high quality LED headlamp, from Netherlands



Key Features



Gear Motor Electric Urban Bike 48V 500W With Tektro Hydraulic Disc Brake 0Gear Motor Electric Urban Bike 48V 500W With Tektro Hydraulic Disc Brake 1



Pictures Show



Gear Motor Electric Urban Bike 48V 500W With Tektro Hydraulic Disc Brake 2Gear Motor Electric Urban Bike 48V 500W With Tektro Hydraulic Disc Brake 3Gear Motor Electric Urban Bike 48V 500W With Tektro Hydraulic Disc Brake 4

Gear Motor Electric Urban Bike 48V 500W With Tektro Hydraulic Disc Brake 5



Gear Motor Electric Urban Bike 48V 500W With Tektro Hydraulic Disc Brake 6



Gear Motor Electric Urban Bike 48V 500W With Tektro Hydraulic Disc Brake 7



Gear Motor Electric Urban Bike 48V 500W With Tektro Hydraulic Disc Brake 8



Gear Motor Electric Urban Bike 48V 500W With Tektro Hydraulic Disc Brake 9



Gear Motor Electric Urban Bike 48V 500W With Tektro Hydraulic Disc Brake 10

Gear Motor Electric Urban Bike 48V 500W With Tektro Hydraulic Disc Brake 11Gear Motor Electric Urban Bike 48V 500W With Tektro Hydraulic Disc Brake 12Gear Motor Electric Urban Bike 48V 500W With Tektro Hydraulic Disc Brake 13Gear Motor Electric Urban Bike 48V 500W With Tektro Hydraulic Disc Brake 14Gear Motor Electric Urban Bike 48V 500W With Tektro Hydraulic Disc Brake 15
