Product Details:
Payment & Shipping Terms:
|
| Motor: | 48V 500W European Standard | Speed: | 35km/h |
|---|---|---|---|
| Package: | Carton+protecting Cover | Keyless Start: | Yes |
| Battery: | 48V 20AH Removable Battery | Tire: | 16"X3.0 |
| High Light: | 12in Pedal Assisted Electric Scooter,Pedal Assisted Electric Scooter 35Km/H,48V 500W motor scooter with pedals |
||
Blue Electric 12 Inch Wheel Scooter Pedal Assist 35Km / H 48V 500W Motor
Quick Details
1. Motor power: 48V 500W brushless motor
2. Lead Acid Gel battery: 48V 20Ah
3. Tire size: 16"x3.0
4. Brake system: Drum brake for frontwheel
5. Pedals assisted system and Throttle: YES
6. Max Speed: 35km/h (21.7mi/h)
Product Descriptions
HP-E72-02 is one pedals assist electric bike. 48V 500W motor, 35km/h speed, drive with pedals. All this make it can meet the regulations of Canada. No Licence, no plate and no tax .
This model also support 48V 250W motor, 25km/h speed and pedals assist system.
Components
1. Drum brake system. Keep good performance, also can lower the cost.
2. Headlamp and tail light, with dual LED headlight.
3. The 48V 20Ah battery, can be removable.
4. The base width with only 22cm, it’s so narrow, like bicycle. You can image how comfortable when pedals.
5. This model pass CE and RoHS certificates.
6. 16”x3.0 CST tire. The tire is more wide, can bring better stability.
Key Features
Specifications
|
Model number |
HP-E72-02 |
|
Motor |
48V 500W brushless DC hub motor |
|
Battery |
48V 20Ah lead acid gel battery |
|
Charge time |
4-8h |
|
Charger |
48V 2.5A, plug can be customized |
|
Controller |
48V 25A |
|
Speed |
35Km/h |
|
Speed mode |
Single |
|
Driving distance |
50-60km |
|
Weight |
82.5Kgs |
|
Packing dimension |
1620x450x860mm |
|
Package |
85% completed, one piece per carton |
|
Panel/speedometer |
Normal style |
|
Driving mode |
Pedals assist and throttle |
|
Alarm system |
Remote alarm |
|
Wheel |
16” |
|
Tire |
16"x3.0 |
|
Chain |
stainless |
|
Frame |
Paint with electrophoretic coating |
|
Fork |
Hydraulic suspension |
|
Shift lever |
-- |
|
Rear derailleur |
-- |
|
Front brake |
Drum Brake |
|
Rear brake |
Drum Brake |
|
Brake levers |
Aluminum |
|
Rims |
Aluminum alloy |
|
Spokes |
-- |
|
Pedals |
normal |
|
Chainwheel |
28T |
|
Cranks |
steel |
|
Freewheel |
16T |
|
Handlebar |
Steel |
|
Stem |
-- |
|
Grip |
140MM |
|
Seat |
Lengthen, comfortable, for two persons |
|
Seat tube |
-- |
|
Headlamp |
Dual LED |
|
Fenders |
Plastics |
|
Wheel base |
1240mm |
|
Min ground clearance |
110mm |
|
Saddle ground clearance |
760mm |
|
Handlebar ground clearance |
980mm |
|
Licence requirement |
NO |

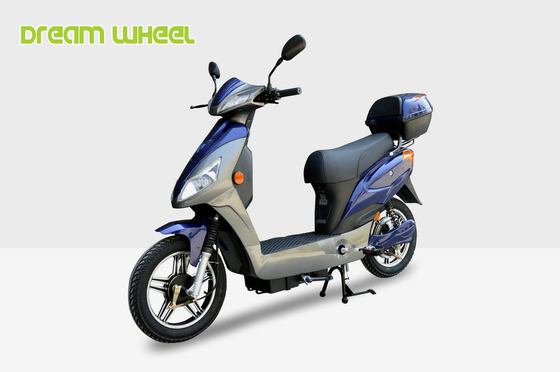

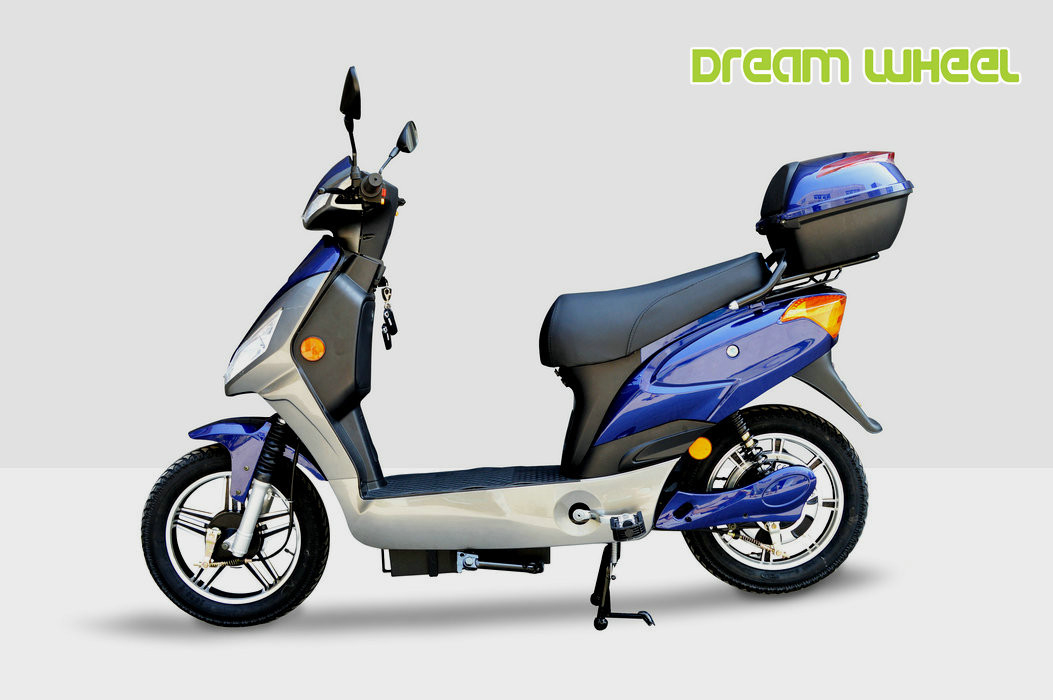

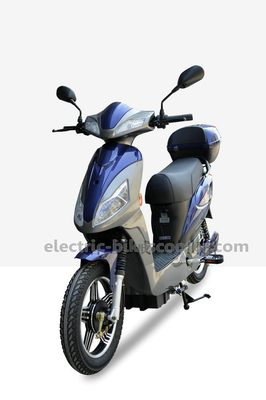

Pictures Show
