CE 500W Min Pedal Assisted Electric Scooter Sports Style Simple 14" X 3.2 Tubeless

China HANGZHOU DREAM WHEEL TECHNOLOGY CO.,LTD. certification
China HANGZHOU DREAM WHEEL TECHNOLOGY CO.,LTD. certification
Easy to talk, can make OEM, can provide drawing and parts list to us, it's really useful to us.

—— Mr.Carlo

Good services and efficient works, I'd like to work with them. Every month, can get new models data from them, save my time. Good guys.

—— Ms.Ana

I'm Online Chat Now

CE 500W Min Pedal Assisted Electric Scooter Sports Style Simple 14" X 3.2 Tubeless

Detailed Product Description
Tire: 14"X3.2 Tubeless Speed: 38km/h
Motor: 48V 500W Package: Carton+protecting Cover+steel Frame
Battery: 48V 20Ah Lead Acid Gel Color: Orange, Black, Red, Blue, White
High Light:

moped electric scooter

,

pedal assisted scooter

CE 500W Min Pedal Assisted Electric Scooter Sports Style Simple 14" X 3.2 Tubeless



Quick Details



1.  Motor power: 48V 500W brushless motor

2.  Lead Acid Gel battery: 48V 20Ah

3.  Tire size: 14"x3.2

4.  Brake system: Drum brake for both wheels

5.  Pedals assisted system and Throttle: YES

6.  Max Speed: 38km/h (23.6mi/h)



Product Descriptions



EBS636, is one simple sports mini electric scooter,  the design concept is Less is more. this scooter can also use pedals. For example, 500W motor and pedals assist system can be class as bicycle in Canada.  No tax, no plate and licence.   Need a helmet it’s true.



This model, use few plastics cover, will be better to make service in the future.



Components



1.  This electric scooter installed drum brakes for front and rear wheel, this way can reduce the cost, to also can make keep good brake performance.



2.  Front carrier, it’s easy to take goods on it.



3.  The wheelbase is only 109cm, this smaller size design, let user have more place choices to park it.



4.  Double seat, the rear is lower, it’s convenient for passenger to get in.





Specifications



Model number

EBS636

Motor

48V 500W brushless DC hub motor

Battery

48V 20Ah lead acid gel battery

Charge time

4-8h

Charger

 48V 2.5A,  plug can be customized

Controller

 48V 28A

Speed

38Km/h

Speed mode

3 speed

Driving distance

50-60km

Weight

72Kgs

Packing dimension

1550x450x900mm

Package

90% completed, one piece per carton

Panel/speedometer

Normal style

Driving mode

Pedals assist and throttle

Alarm system

Remote alarm

Wheel

14”

Tire

14"x3.2, tubeless

Chain

steel

Frame

Paint with electrophoretic coating

Fork

Hydraulic suspension

Shift lever

--

Rear derailleur

--

Front brake

Drum Brake

Rear brake

Drum Brake

Brake levers

 Aluminum

Rims

Aluminum alloy

Spokes

--

Pedals

normal

Chainwheel

28T

Cranks

steel

Freewheel

16T

Handlebar

 Steel

Stem

--

Grip

140MM

Seat

Dual,  for two persons

Seat tube

--

Headlamp

LED

Fenders

Plastics

Wheel base

1090mm

Min ground clearance

110mm

Saddle ground clearance

Front:740mm; Rear: 600mm

Handlebar ground clearance

1020mm

Licence requirement

NO

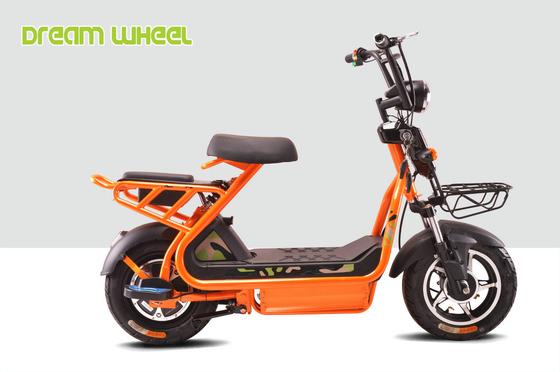

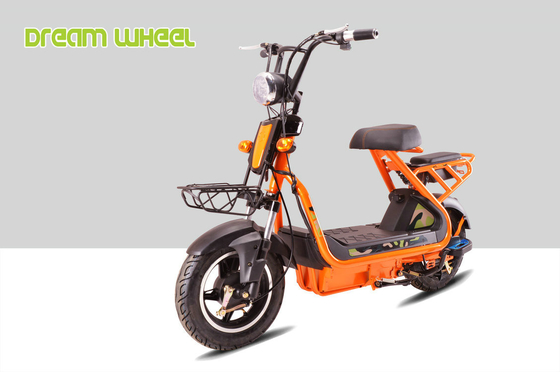

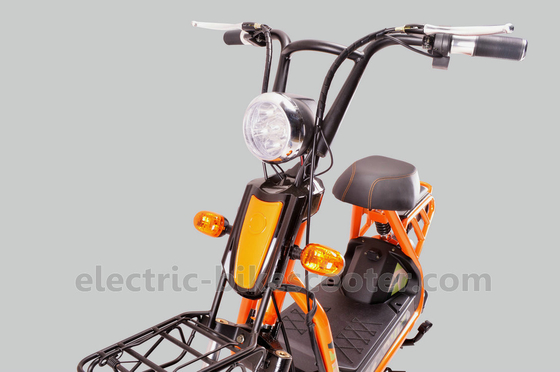

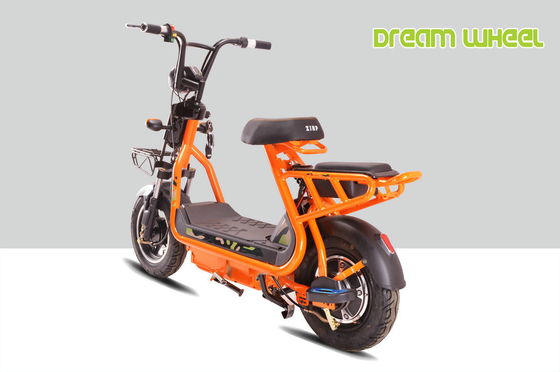

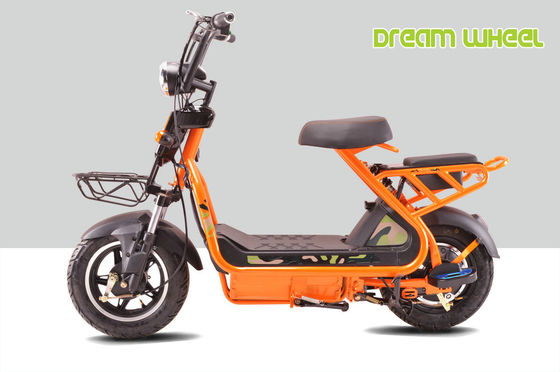

Pictures Show



CE 500W Min Pedal Assisted Electric Scooter Sports Style Simple 14" X 3.2 Tubeless 0CE 500W Min Pedal Assisted Electric Scooter Sports Style Simple 14" X 3.2 Tubeless 1CE 500W Min Pedal Assisted Electric Scooter Sports Style Simple 14" X 3.2 Tubeless 2

CE 500W Min Pedal Assisted Electric Scooter Sports Style Simple 14" X 3.2 Tubeless 3

CE 500W Min Pedal Assisted Electric Scooter Sports Style Simple 14" X 3.2 Tubeless 4

CE 500W Min Pedal Assisted Electric Scooter Sports Style Simple 14" X 3.2 Tubeless 5CE 500W Min Pedal Assisted Electric Scooter Sports Style Simple 14" X 3.2 Tubeless 6CE 500W Min Pedal Assisted Electric Scooter Sports Style Simple 14" X 3.2 Tubeless 7CE 500W Min Pedal Assisted Electric Scooter Sports Style Simple 14" X 3.2 Tubeless 8CE 500W Min Pedal Assisted Electric Scooter Sports Style Simple 14" X 3.2 Tubeless 9
