Product Details:
Payment & Shipping Terms:
|
Color: | Grey, Black, White, Red, Blue | Tire: | 20" X2.125 With Reflector Cycle |
---|---|---|---|
Speed: | 25km/h, European Standard | Package Size: | 86x46x71.5cm |
Fork: | With Suspension | Battery: | 800 Times Recycle |
High Light: | adult electric folding bike 55km,electric folding bike 250W 36V,20in collapsible electric bike |

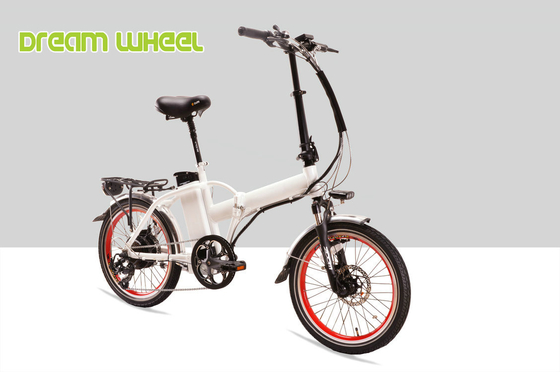

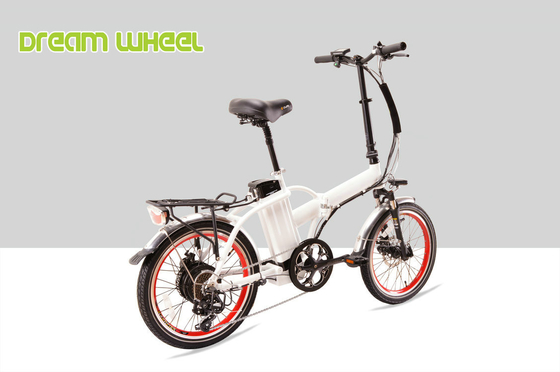

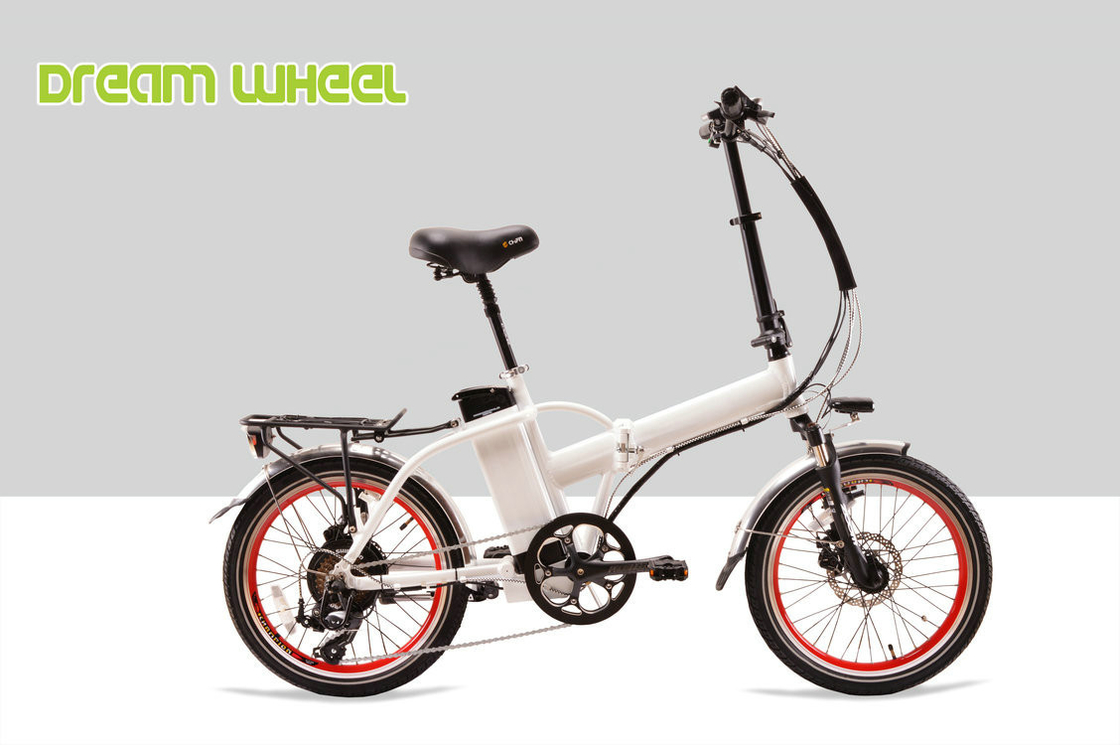

36V Lithium Electric Bike Folding / 20 Inch Electric Folding Cruiser Bicycle
Quick Details
1. Motor power: 36V 250W BAFANG rear motor
2. Frame material: Aluminum alloy 6061
3. Lithium battery: 36V 10.4Ah Samsung cells
4. Certification: EN15194 by TUV
5. Wheel size: 20”
6. Brake system: Disc brake for dual wheel
7. Derailleur system: Shimano tourney TX55
8. Pedals assisted system: Yes. throttle can be optional
Product Descriptions
HP-E002 is one classic folding electric bike, and popular in many countries. It’s amazing model in whole folding e-bike series. It’s the perfect size for small place, like apartment, closet or corner. In addition to folding in half of downtube, the stem use newest round design, can be folding more easily.
The motor use 250W power, it’s a standard for European market. Also support 350W in American market. The panel use LCD style display, have 5 drive modes can be selected, also have power show, speed and drive distance in it.
We provide two drive modes on this bike, Pedals Assistant System and Accelerating system. And we install one convert switch on the right side of handlebar, when the user press one time, it will be connect PAS function, and press again, will be in accelerator mode. This will give driver two choices on the road, especially when tried.
Components
1. BAFANG rear Gear motor, China famous electric bike motor supplier. This rear-drive motor, which has a rated power of 250W, a reduction ratio of 1: 4.42 and a maximum torque of 48 N.m, provides ideal power for vehicles. Strong and efficient, this motor greatly enhances riding comfort and is suitable for touring bikes, commuter bikes and mountain bikes.
2. ZOOM suspension and brake system, we have test for nearly 10 years. We use this high quality parts, for many customers around the world. And feedback is very good until now. We will continue to care more on user’s experiences to improve each details for our electric bike.
3. KENDA on road tire, provide safe and comfortable driving experiences. The tire made with reflector strip, will enhance the safety in night or dark environment. Electric bike is one funny transportation tool, but not toy, so make safe products more important than any other features.
Specifications
Model number |
HP-E002 |
|
Motor |
BAFANG, 36V 250W rear GEAR motor |
|
Battery |
36V 10.4Ah lithium, SAMSUNG cells |
|
Charge time |
4-8h |
|
Charger |
110-240V, 36V 2A, plug can be customized |
|
Controller |
36V 14A |
|
Speed |
25Km/h |
|
Driving distance |
55-65km by PAS |
|
Weight |
21.5Kgs |
|
Packing dimension |
860x460x715mm |
|
Panel/speedometer |
LCD display |
|
Wheel |
20” |
|
Tire |
20”x2.125, KENDA with reflector cycle |
|
Chain |
1/2*3/32*114L, KMC rust-proof |
|
Frame |
Aluminum alloy 6061 |
|
Fork |
20”, travel 100MM, 25.4*22.2*153L*102MM |
|
Shift lever |
Shimano 6 speed |
|
Rear derailleur |
Shimano RD-TX55 |
|
Front brake |
ZOOM Disc Brake |
|
Rear brake |
ZOOM Disc brake |
|
Brake levers |
Aluminum, 47PDD |
|
Rims |
Aluminum alloy,20”*1.75*36H*13G |
|
Spokes |
Front:13GX176/178; Rear:12GX123/125; |
|
Pedals |
Wellgo, with ball |
|
Chainwheel |
1/2*3/32*52T, aluminum |
|
Cranks |
Aluminum, 170L |
|
Freewheel |
14-28T |
|
Handlebar |
ZOOM Aluminum, W560 |
|
Stem |
ZOOM Aluminum |
|
Grip |
140MM |
|
Seat |
Velo |
|
Seat tube |
Aluminum, 27.2*300*1.4T |
|
Lamp |
LED for front and rear |
|
Wheel base |
1020mm |
|
Min ground clearance |
90mm |
|
Saddle ground clearance |
Max:990mm; Min:790mm |
|
Handlebar ground clearance |
1105mm |
|
Licence requirement |
NO |
Pictures Show
