Blue Mens Women'S Electric Folding Bike , Citizen Folding Electric Bike 20" Wheels

China Blue Mens Women'S Electric Folding Bike , Citizen Folding Electric Bike 20" Wheels supplier
Blue Mens Women'S Electric Folding Bike , Citizen Folding Electric Bike 20" Wheels supplier Blue Mens Women'S Electric Folding Bike , Citizen Folding Electric Bike 20" Wheels supplier Blue Mens Women'S Electric Folding Bike , Citizen Folding Electric Bike 20" Wheels supplier Blue Mens Women'S Electric Folding Bike , Citizen Folding Electric Bike 20" Wheels supplier Blue Mens Women'S Electric Folding Bike , Citizen Folding Electric Bike 20" Wheels supplier Blue Mens Women'S Electric Folding Bike , Citizen Folding Electric Bike 20" Wheels supplier Blue Mens Women'S Electric Folding Bike , Citizen Folding Electric Bike 20" Wheels supplier

Large Image :  Blue Mens Women'S Electric Folding Bike , Citizen Folding Electric Bike 20" Wheels

Product Details:

Place of Origin: CHINA
Brand Name: DREAM WHEEL
Certification: EN15194
Model Number: EBS124

Payment & Shipping Terms:

Minimum Order Quantity: 3units
Price: USD
Packaging Details: Carton and protecting cover; 245pcs in 40" HQ
Delivery Time: 30days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 3000PCS per month
Contact Now
Detailed Product Description
Color: Grey, Black, White, Red, Blue,Silver Tire: 20" X2.125 With Reflector Cycle
Speed: 25km/h Package Size: 86x46x71.5cm
Fork: With Suspension Battery: 800 Times Recycle
High Light:

mens electric folding bike 20"x2.125

,

65km women's electric folding bike

,

citizen folding electric bike 20in

250W Blue Folding Powerful Electric Bike 20 Wheels Disc Brake BAFANG Rear Motor



Quick Details



1.  Motor power: 36V 250W BAFANG rear motor

2.  Frame material: Aluminum alloy 6061

3.  Lithium battery: 36V 10.4Ah Samsung cells

4.  Certification: EN15194

5.  Wheel size: 20”

6.  Brake system: Disc brake for both wheels

7.  Derailleur system: Shimano tourney TX55

8.  Pedals assisted system: Yes.  throttle can be optional



Product Descriptions



Dream Wheel Technology, offers a state of the art battery and frame design, and artfully combines the highest quality parts from the most competitive manufacturers  Shimano, ZOOM, KENDA, KMC and VELO, to make reliable products.



And more, we can painting the frame, fenders, fork and battery box as customer’s requirements.  So this bike will looks very beautiful and customized your unique style. Yes, this need LCL order. You know, our business is for wholesale.



We provide two drive modes on this bike, Pedals Assistant System and Accelerating system. And we install one convert switch on the right side of handlebar, when the user press one time, it will be connect PAS function, and press again, will be in accelerator mode. This will give driver two choices on the road, especially when tried.



Components



1.  Latest design frame with one-piece construct, the main frame and rear carrier.  It looks more nice, and can be painting with same colour.



2.  BAFANG rear Gear motor, China famous electric bike motor supplier. This rear-drive motor, which has a rated power of 250W, a reduction ratio of 1: 4.42 and a maximum torque of 60 N.m, provides ideal power for vehicles. Strong and efficient, this motor greatly enhances riding comfort and is suitable for touring bikes, commuter bikes and mountain bikes.



3.  ZOOM suspension and brake system, we have test for nearly 10 years. We use this high quality parts, for many customers around the world. And feedback is very good until now.  We will continue to care more on user’s experiences to improve each details for our electric bike.



4.  Velo seat, high end seat supplier from TAIWAN,  one of the biggest seat manufacturer in the world since 1979.



5.  36V 10.4Ah Samsung  lithium battery, can drive with 65km distance by PAS. It ‘s your best solution for daily urban commuter.



Specifications



Model number

EBS124

Motor

BAFANG, 36V 250W rear GEAR motor

Battery

36V 10.4Ah lithium, SAMSUNG cells

Charge time

4-8h

Charger

110-240V, 36V 2A, plug can be customized

Controller

 36V 14A

Speed

25Km/h

Driving distance

55-65km by PAS

Weight

22.5Kgs

Packing dimension

860x460x715mm

Panel/speedometer

 LED style

Wheel

20”

Tire

20”x2.125, KENDA on road tire

Chain

1/2*3/32*114L, KMC rust-proof

Frame

Aluminum alloy 6061

Fork

20”, travel 100MM, 25.4*22.2*153L*102MM

Shift lever

Shimano 6 speed

Rear derailleur

Shimano RD-TX55

Front brake

ZOOM Disc Brake

Rear brake

Shimano V Brake

Brake levers

 Aluminum, 47PDD

Rims

Aluminum alloy,20”*1.75*36H*13G

Spokes

Front:13GX176/178; Rear:12GX123/125;

Pedals

Wellgo, with ball

Chainwheel

1/2*3/32*52T, aluminum

Cranks

Aluminum, 170L

Freewheel

14-28T

Handlebar

ZOOM Aluminum, W560

Stem

ZOOM Aluminum

Grip

135MM

Seat

Velo

Seat tube

Aluminum, 27.2*300*1.4T

Lamp

LED for front and rear

Wheel base

1020mm

Min ground clearance

90mm

Saddle ground clearance

Max:990mm; Min:790mm

Handlebar ground clearance

1120mm

Licence requirement

NO



Pictures Show

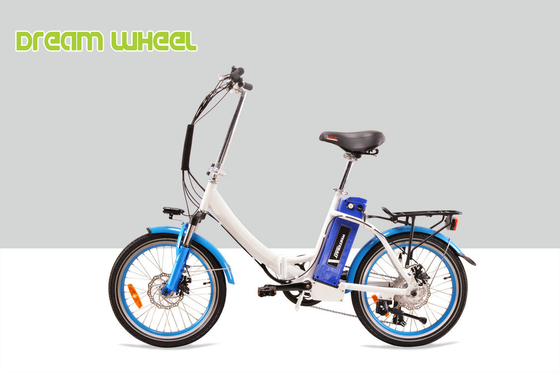

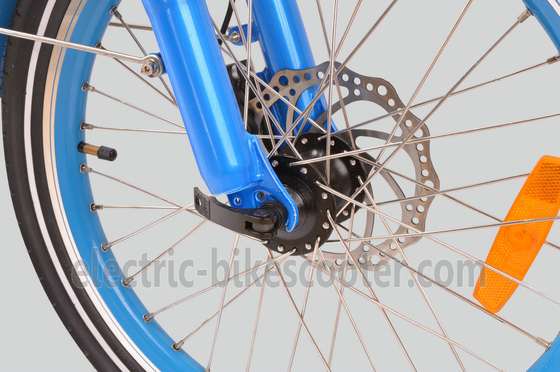

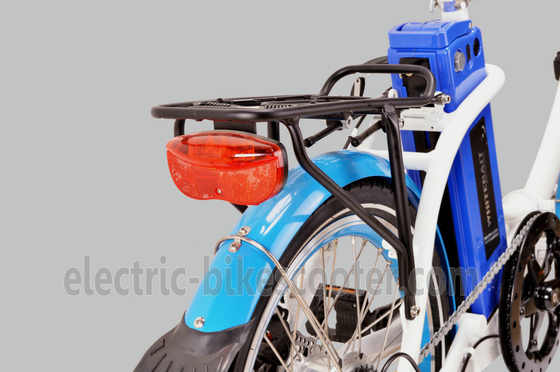

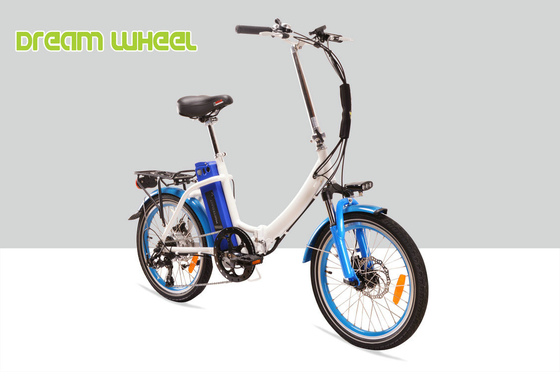

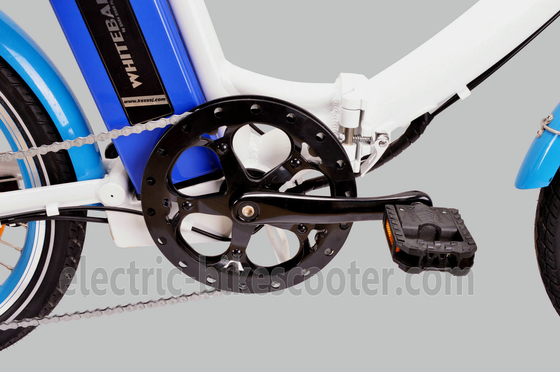

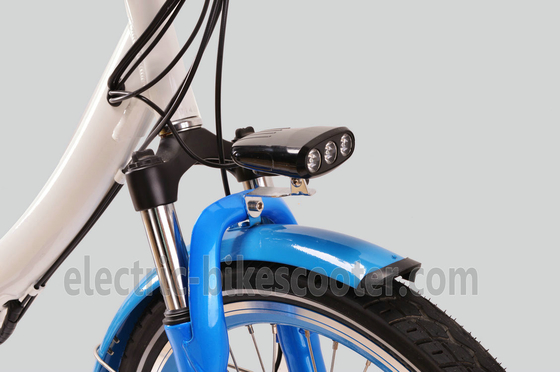

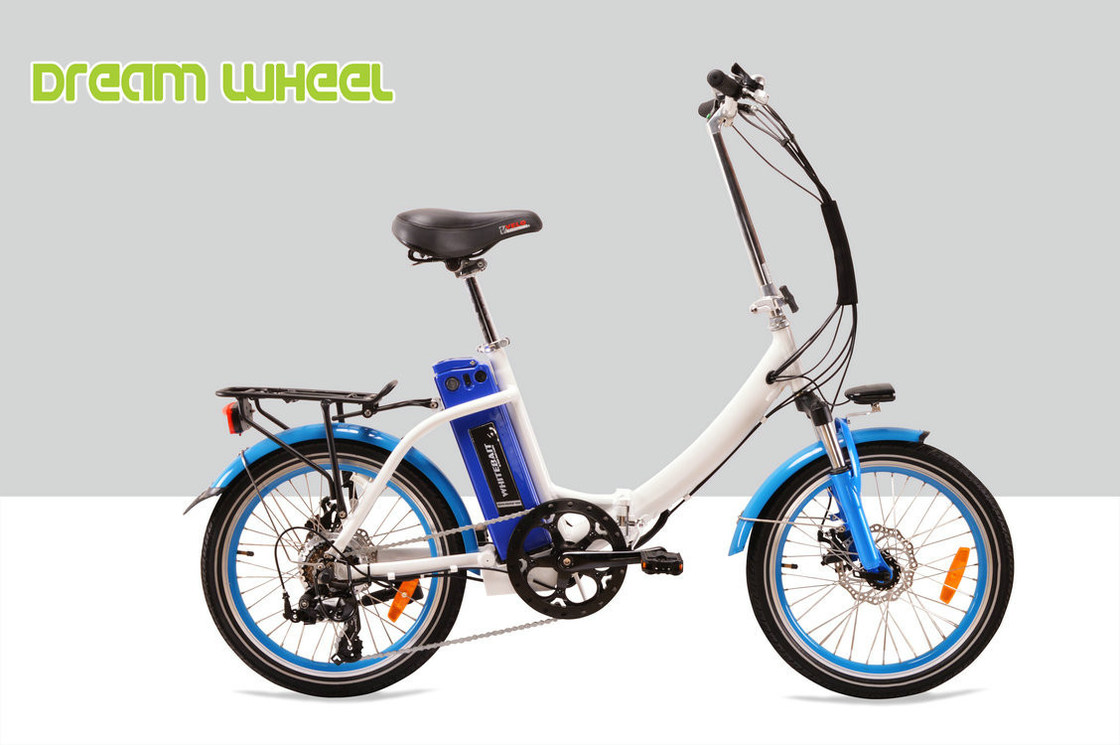

Blue Mens Women'S Electric Folding Bike , Citizen Folding Electric Bike 20" Wheels 0Blue Mens Women'S Electric Folding Bike , Citizen Folding Electric Bike 20" Wheels 1Blue Mens Women'S Electric Folding Bike , Citizen Folding Electric Bike 20" Wheels 2



Blue Mens Women'S Electric Folding Bike , Citizen Folding Electric Bike 20" Wheels 3



Blue Mens Women'S Electric Folding Bike , Citizen Folding Electric Bike 20" Wheels 4



Blue Mens Women'S Electric Folding Bike , Citizen Folding Electric Bike 20" Wheels 5



Blue Mens Women'S Electric Folding Bike , Citizen Folding Electric Bike 20" Wheels 6

Blue Mens Women'S Electric Folding Bike , Citizen Folding Electric Bike 20" Wheels 7Blue Mens Women'S Electric Folding Bike , Citizen Folding Electric Bike 20" Wheels 8Blue Mens Women'S Electric Folding Bike , Citizen Folding Electric Bike 20" Wheels 9Blue Mens Women'S Electric Folding Bike , Citizen Folding Electric Bike 20" Wheels 10
