48V 750W 2022 Electric Fat Tire Bike with child seat , Electric Fat Tire Bicycle long drive range distance

China 48V 750W 2022 Electric Fat Tire Bike with child seat , Electric Fat Tire Bicycle long drive range distance supplier
48V 750W 2022 Electric Fat Tire Bike with child seat , Electric Fat Tire Bicycle long drive range distance supplier 48V 750W 2022 Electric Fat Tire Bike with child seat , Electric Fat Tire Bicycle long drive range distance supplier 48V 750W 2022 Electric Fat Tire Bike with child seat , Electric Fat Tire Bicycle long drive range distance supplier 48V 750W 2022 Electric Fat Tire Bike with child seat , Electric Fat Tire Bicycle long drive range distance supplier

Large Image :  48V 750W 2022 Electric Fat Tire Bike with child seat , Electric Fat Tire Bicycle long drive range distance

Product Details:

Place of Origin: CHINA
Brand Name: DREAM WHEEL
Certification: EN15194
Model Number: EBS-79

Payment & Shipping Terms:

Minimum Order Quantity: 10 units
Price: USD850-1100
Packaging Details: Carton and protecting cover
Delivery Time: 60days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 2500PCS per month
Contact Now
Detailed Product Description
Tire: 20" X4.0 Kenda Fat Tire Speed: 30-40km/h
Color: Black, White Package Size: 150x29x90cm
Fork: Alloy Aluminum With Suspension Battery: 48V 13AH And 48V 13Ah Samsung Cells
Motor: 48V 750W Dirve Distance: 80-100km Per Charger

48V 750W 2022 Electric Fat Tire Bike with child seat , Electric Fat Tire Bicycle long drive range distance



Quick Details



1.  Motor power: 48V 750W rear hub motor

2.  Frame material: Aluminum alloy 6061

3.  Lithium battery: 48V 13Ah +48V 13Ah Samsung cells

4.  Certification: EN15194

5.  Wheel size: 20”

6.  Brake system: Mechanical Disc brakes for both wheels

7.  Derailleur system: Shimano 7 speed

8.  Pedals assisted system: PAS and throttle



Product Descriptions



Dream Wheel Technology, offers a state of the art battery and frame design, and artfully combines the highest quality parts from the most competitive manufacturers  Shimano, ZOOM, KENDA, KMC and VELO, to make reliable products.

We provide two drive modes on this bike, Pedals Assistant System and Accelerating system. this EBS-79 is our new design electirc fat tire bike, good design to mount rear child seat. 48V 750W rear motor, it's more easily to uphill and more powerful to speed up any time. 48V 13Ah double lithium battery with Samsung/LG cells. the bike drive distance wil get 90-110km per charger.







Specifications



Model number

EBS-79

Motor

 48V 750W rear hub motor

Battery

48V 13Ah+48V 13Ah lithium battery, SAMSUNG /LGcells,1248Wh

Charge time

4-6h

Charger

110-240V, 48V 2A with UL standard

Controller

 48V 22A

Speed

30-40Km/h

Driving distance

90-110km by PAS

Weight

40Kgs with child seat

Packing dimension

1500x280x900mm

Panel/speedometer

 LCD style

Wheel

20”

Tire

20”x4.0, KENDA fat tire

Chain

1/2*3/32*114L, KMC rust-proof

Frame

Aluminum alloy 6061

Fork

20”, travel 100MM

Shift lever

Shimano 7 speed

Rear derailleur

Shimano RD-TX55

Front brake

Mechanical Disc Brake

Rear brake

Mechanical Disc Brake

Brake levers

 Aluminum, 47PDD

Rims

Aluminum alloy

Spokes

Front:13GX176/178; Rear:12GX123/125;

Pedals

Wellgo, with ball

Chainwheel

1/2*3/32*52T, aluminum

Cranks

Aluminum, 170L

Freewheel

14-28T

Handlebar

ZOOM Aluminum

Stem

ZOOM Aluminum

Grip

140MM

Seat

Velo

Seat tube

Aluminum, 27.2*300*1.4T

Lamp

LED for front and rear

Wheel base

1090mm

Min ground clearance

90mm

Saddle ground clearance

--

Handlebar ground clearance

1120mm

Licence requirement

NO

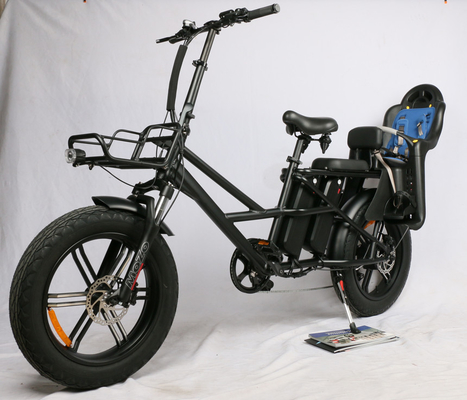

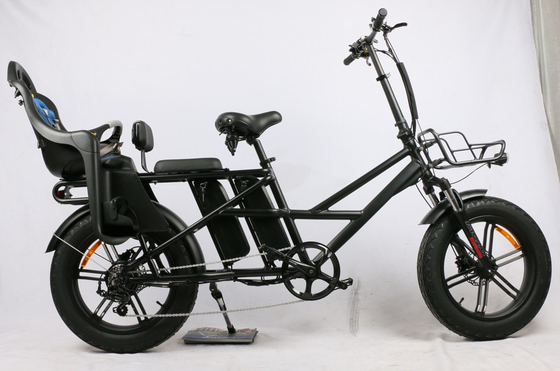

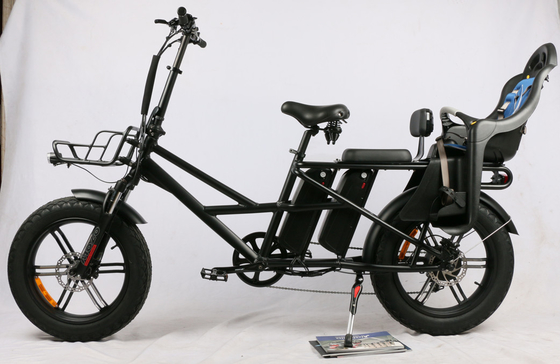

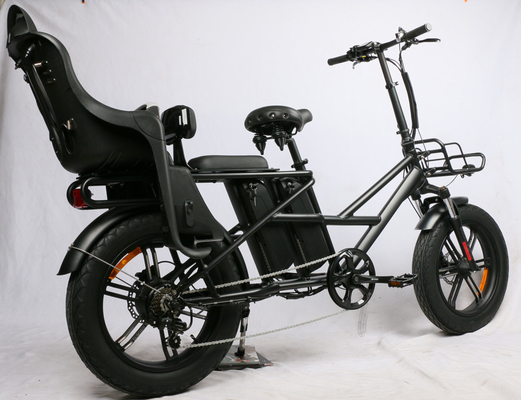

Pictures Show



48V 750W 2022 Electric Fat Tire Bike with child seat , Electric Fat Tire Bicycle long drive range distance 048V 750W 2022 Electric Fat Tire Bike with child seat , Electric Fat Tire Bicycle long drive range distance 148V 750W 2022 Electric Fat Tire Bike with child seat , Electric Fat Tire Bicycle long drive range distance 248V 750W 2022 Electric Fat Tire Bike with child seat , Electric Fat Tire Bicycle long drive range distance 3



















48V 750W 2022 Electric Fat Tire Bike with child seat , Electric Fat Tire Bicycle long drive range distance 448V 750W 2022 Electric Fat Tire Bike with child seat , Electric Fat Tire Bicycle long drive range distance 548V 750W 2022 Electric Fat Tire Bike with child seat , Electric Fat Tire Bicycle long drive range distance 648V 750W 2022 Electric Fat Tire Bike with child seat , Electric Fat Tire Bicycle long drive range distance 7
