48V 500W 750W Electric Fat Tire Bike , Electric Fat Tire Bicycle EN15194

China 48V 500W 750W Electric Fat Tire Bike , Electric Fat Tire Bicycle EN15194 supplier
48V 500W 750W Electric Fat Tire Bike , Electric Fat Tire Bicycle EN15194 supplier 48V 500W 750W Electric Fat Tire Bike , Electric Fat Tire Bicycle EN15194 supplier 48V 500W 750W Electric Fat Tire Bike , Electric Fat Tire Bicycle EN15194 supplier 48V 500W 750W Electric Fat Tire Bike , Electric Fat Tire Bicycle EN15194 supplier

Large Image :  48V 500W 750W Electric Fat Tire Bike , Electric Fat Tire Bicycle EN15194

Product Details:

Place of Origin: CHINA
Brand Name: DREAM WHEEL
Certification: EN15194
Model Number: EBS-73

Payment & Shipping Terms:

Minimum Order Quantity: 10 units
Price: USD850-950
Packaging Details: Carton and protecting cover
Delivery Time: 60days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 2500PCS per month
Contact Now
Detailed Product Description
Tire: 20" X4.0 Kenda Fat Tire Speed: 25-35km/h
Color: Black, White, Red, Blue Package Size: 150x28x92cm
Fork: Alloy Aluminum With Suspension Battery: 48V 13AH Samsung
High Light:

48V 500W Electric Fat Tire Bike

,

35km/h motorized fat tire bike

,

electric fat tire bicycle EN15194

Electric super bike 73 fat tire bike 48V 500W/750W 2022 new design



Quick Details



1.  Motor power: 48V 500W rear motor

2.  Frame material: Aluminum alloy 6061

3.  Lithium battery: 48V 13Ah Samsung cells

4.  Certification: EN15194

5.  Wheel size: 20”

6.  Brake system: Disc brake for both wheels

7.  Derailleur system: Shimano 7 speed

8.  Pedals assisted system: PAS and throttle



Product Descriptions



Dream Wheel Technology, offers a state of the art battery and frame design, and artfully combines the highest quality parts from the most competitive manufacturers  Shimano, ZOOM, KENDA, KMC and VELO, to make reliable products.

We provide two drive modes on this bike, Pedals Assistant System and Accelerating system. this EBS-73 is our new design electirc fat tire bike. 48V 500W /750W rear motor. 13Ah lithium battery with Samsung cell. the bikemore new colours are optional.







Specifications



Model number

EBS-73

Motor

 48V 500W rear motor

Battery

48V 13Ah lithium, SAMSUNG cells

Charge time

4-6h

Charger

110-240V, 48V 2A with UL standard

Controller

 48V 22A

Speed

25-35Km/h

Driving distance

45-55km by PAS

Weight

31Kgs

Packing dimension

1500x280x920mm

Panel/speedometer

 LCD style

Wheel

20”

Tire

20”x4.0, KENDA fat tire

Chain

1/2*3/32*114L, KMC rust-proof

Frame

Aluminum alloy 6061

Fork

20”, travel 100MM

Shift lever

Shimano 7 speed

Rear derailleur

Shimano RD-TX55

Front brake

Disc Brake

Rear brake

Disc Brake

Brake levers

 Aluminum, 47PDD

Rims

Aluminum alloy

Spokes

Front:13GX176/178; Rear:12GX123/125;

Pedals

Wellgo, with ball

Chainwheel

1/2*3/32*52T, aluminum

Cranks

Aluminum, 170L

Freewheel

14-28T

Handlebar

ZOOM Aluminum

Stem

ZOOM Aluminum

Grip

140MM

Seat

Velo

Seat tube

Aluminum, 27.2*300*1.4T

Lamp

LED for front and rear

Wheel base

1090mm

Min ground clearance

90mm

Saddle ground clearance

Max:990mm; Min:790mm

Handlebar ground clearance

1120mm

Licence requirement

NO

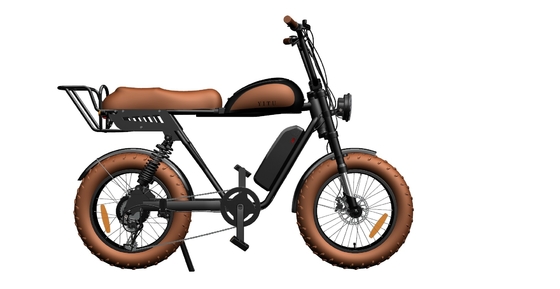

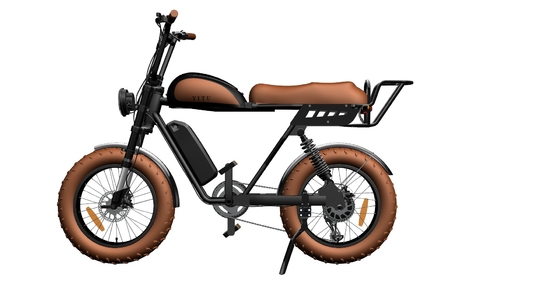

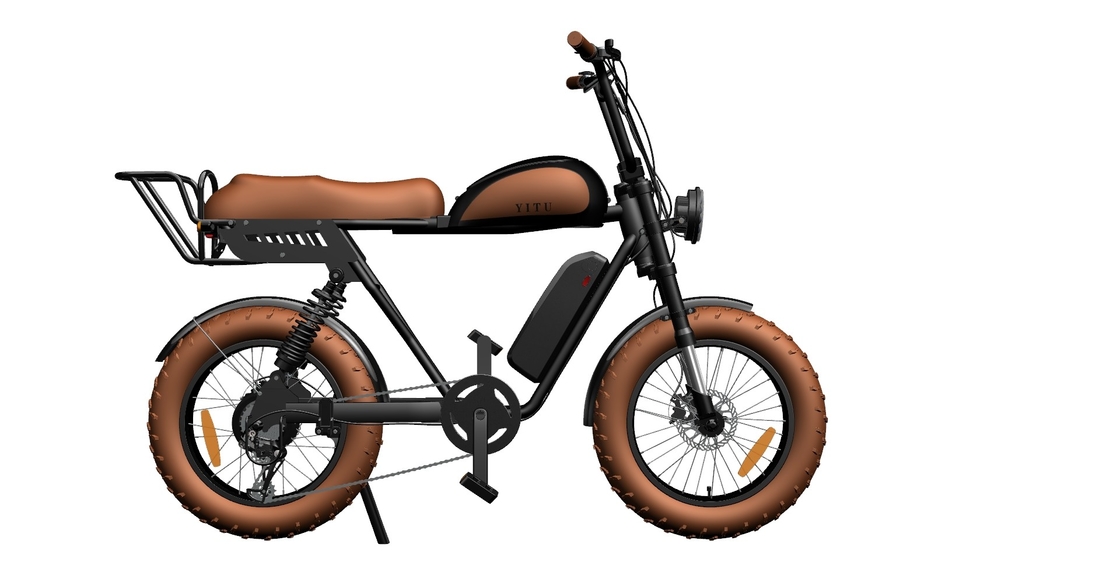

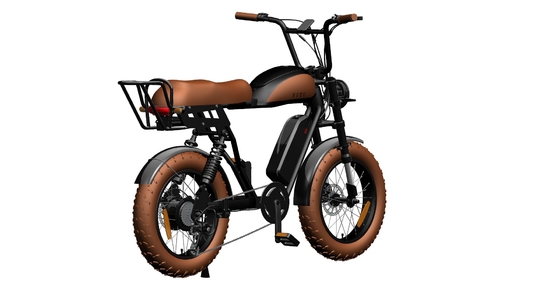

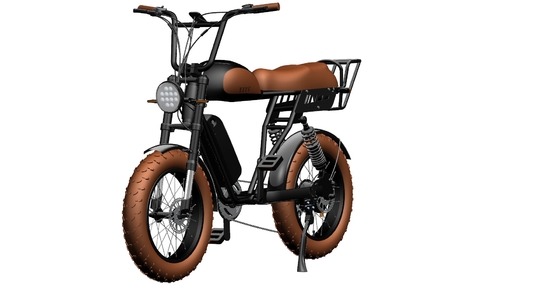

Pictures Show





48V 500W 750W Electric Fat Tire Bike , Electric Fat Tire Bicycle EN15194 048V 500W 750W Electric Fat Tire Bike , Electric Fat Tire Bicycle EN15194 148V 500W 750W Electric Fat Tire Bike , Electric Fat Tire Bicycle EN15194 2















48V 500W 750W Electric Fat Tire Bike , Electric Fat Tire Bicycle EN15194 348V 500W 750W Electric Fat Tire Bike , Electric Fat Tire Bicycle EN15194 448V 500W 750W Electric Fat Tire Bike , Electric Fat Tire Bicycle EN15194 548V 500W 750W Electric Fat Tire Bike , Electric Fat Tire Bicycle EN15194 6
