500W 20 Inch Fat Tire Folding Electric Bike 32km/H

China 500W 20 Inch Fat Tire Folding Electric Bike 32km/H supplier
500W 20 Inch Fat Tire Folding Electric Bike 32km/H supplier 500W 20 Inch Fat Tire Folding Electric Bike 32km/H supplier 500W 20 Inch Fat Tire Folding Electric Bike 32km/H supplier 500W 20 Inch Fat Tire Folding Electric Bike 32km/H supplier

Large Image :  500W 20 Inch Fat Tire Folding Electric Bike 32km/H

Product Details:

Place of Origin: CHINA
Brand Name: DREAM WHEEL
Certification: EN15194
Model Number: HP-E002 plus

Payment & Shipping Terms:

Minimum Order Quantity: 5 units
Price: USD560-640
Packaging Details: Carton and protecting cover; 245pcs in 40" HQ
Delivery Time: 30days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 2500PCS per month
Contact Now
Detailed Product Description
Color: Grey, Black, White, Red, Blue Tire: 20" X 4.0 Fat Tire
Speed: 25-32km/h Fork: With Suspension
Motor: 48V 500W Battery: 48V 13Ah Lithium Battery
High Light:

500W 20 inch fat tire folding electric bike

,

20 fat tire folding electric bike 32km/H

,

48V 500W fat tire 20 inch ebike

500w 32km / H Lithium Battery Electric Folding Bicycle 20” X 4.0 Fat Tire



Quick Details



1.  Motor power: 48V 500W motor

2.  Frame material: Aluminum alloy 6061

3.  Lithium battery: 48V 13Ah Samsung cells

4.  Certification: EN15194

5.  Wheel size: 20”

6.  Brake system: Disc brake for dual wheel

7.  Derailleur system: Shimano 7 speed

8.  Pedals assisted system: Yes.



Product Descriptions



HP-E002 plus is one professional bike. 24”X4.0 Kenda fat/snow tire.

48V 500W professional motor, match Shimano 6 speed.



In North America, our snow bike sales well there. In winter, the fat tire smart bike, will bring more help to people in snowing season.



We provide two drive modes on this bike, Pedals Assistant System and Accelerating system. And we install one convert switch on the right side of handlebar, when the user press one time, it will be connect PAS function, and press again, will be in accelerator mode. This will give driver two choices on the road, especially when tried.





Components



1.  ZOOM suspension and brake system, we have test for nearly 10 years. We use this high quality parts, for many customers around the world. And feedback is very good until now.  We will continue to care more on user’s experiences to improve each details for our electric bike.



2.  KENDA on road tire, provide safe and comfortable driving experiences.  The tire made with reflector strip, will enhance the safety in night or dark environment.  Electric bike is one funny transportation tool, but not toy, so make safe products more important than any other features.



3.  Prowheel chainwheel  system, with double edges design to protect user’s clothes not be draw in.



Specifications



Model number HP-E002 plus
Motor BAFANG, 48V 500W professional motor
Battery 48V 13Ah lithium
Charge time 4-8h
Charger 110-240V, 48V 2A, plug can be customized
Controller 48V 25A
Speed 25-32Km/h
Driving distance 55-65km by PAS
Weight 25.5Kgs
Packing dimension 860x460x715mm
Panel/speedometer LCD style
Wheel 20”
Tire 20”x4.0, fat tire
Chain 1/2*3/32*124L, KMC rust-proof
Frame Aluminum alloy 6061
Fork 20”, travel 30MM, 28.6*25.4*107MM
Shift lever Shimano 7 speed
Rear derailleur Shimano RD-TX55
Front brake Disc Brake
Rear brake Disc Brake
Brake levers Aluminum
Rims Aluminum alloy,20”*4.0*36H*13G
Spokes Front:13GX221/223; Rear:13GX183/184;
Pedals Wellgo, foldable
Chainwheel 1/2*3/32*44T, aluminum
Cranks Aluminum, 170L
Freewheel 14-28T
Handlebar ZOOM Aluminum, W610x2.0T
Stem ZOOM Aluminum
Grip 135MM
Seat Velo
Seat tube Aluminum, 27.2*300*2.0T
Lamp  LED for front and rear
Wheel base 1020mm
Min ground clearance 90mm
Saddle ground clearance Max:990mm; Min:790mm
Handlebar ground clearance 1105mm
Licence requirement NO

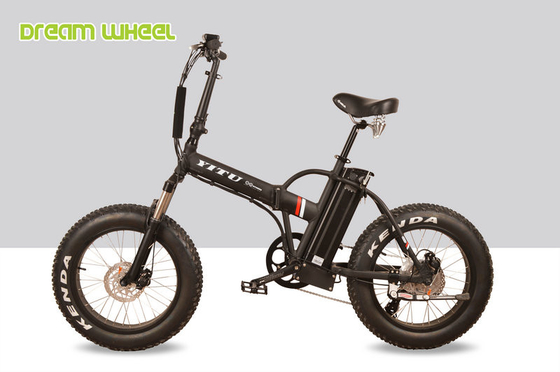

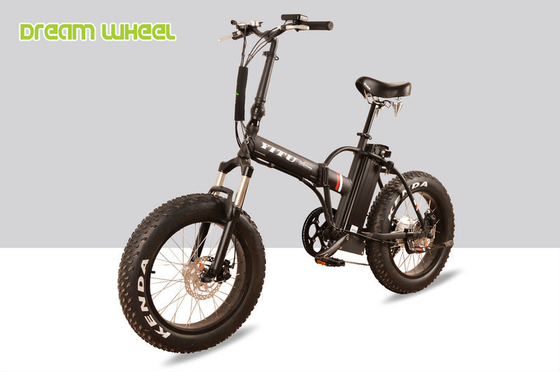

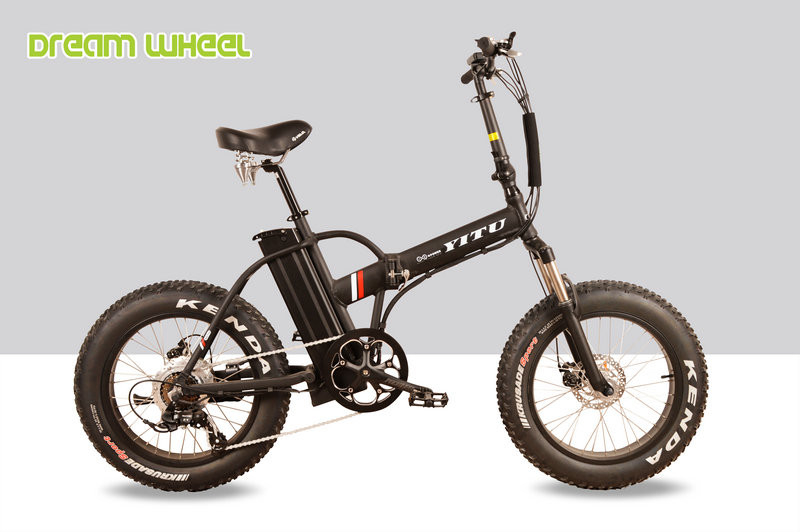

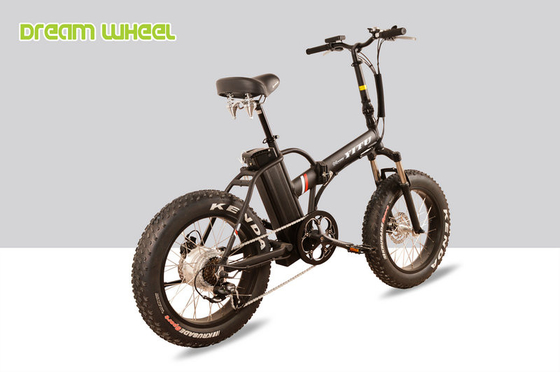

Pictures Show



500W 20 Inch Fat Tire Folding Electric Bike 32km/H 0500W 20 Inch Fat Tire Folding Electric Bike 32km/H 1500W 20 Inch Fat Tire Folding Electric Bike 32km/H 2500W 20 Inch Fat Tire Folding Electric Bike 32km/H 3

500W 20 Inch Fat Tire Folding Electric Bike 32km/H 4500W 20 Inch Fat Tire Folding Electric Bike 32km/H 5500W 20 Inch Fat Tire Folding Electric Bike 32km/H 6500W 20 Inch Fat Tire Folding Electric Bike 32km/H 7500W 20 Inch Fat Tire Folding Electric Bike 32km/H 8
