Product Details:
Payment & Shipping Terms:
|
Package Size: | 86x46x71.5cm | Package: | Carton And Protecting Cover |
---|---|---|---|
Color: | Black, Blue, Grey, White | Delivery Time: | 25days |
Motor: | 350W Brushless GEAR Motor | Tire: | 20" X 2.125 |
Speed: | 32km/h | ||
High Light: | 32km/h Electric Folding Bike,36V 350W Electric Folding Bike,20in electric folding bicycle with pedal assist system |
Blue Folding Electric Bike Lightweight 36V 350W 32Km/H Pedals Assisted System
Quick Details
1. Motor power: 36V 350W BAFANG rear motor
2. Frame material: Aluminum alloy 6061
3. Lithium battery: 36V 7.8Ah Samsung cells
4. Certification: EN15194
5. Wheel size: 20”
6. Brake system: Disc brake for both wheel
7. Derailleur system: Shimano tourney TX55
8. Pedals assisted system: Yes
Product Descriptions
Convenience and portability are the quests of many city commuters when it comes to transportation options. For those city commuters who choose to bike it, check out the selection of electric powered folding bicycles. Folding electric bikes solve the dual conundrums of storage and parking, while also making your ride more comfortable and enjoyable by solving the challenge of steep hills and menacing headwinds.
This electric folding bike install Shimano 6 speed , and 36V 350W BAFANG classic rear mounted motor, can give driver more help to meet various road condition. For this model, 250W motor is available.
Components
1. BAFANG rear Gear motor, China famous electric bike motor supplier. This rear drive motor, which has a rated power of 350W.
2. ZOOM dual disc brakes, The brakes are powerful Disc Brakes in both the front and rear, providing quick stopping power.
3. ZOOM fork, city trekking series, made with Spring pressure system, adjustable preload, mechanical easy lock-out.
4. Velo seat, high end seat supplier from TAIWAN, in any case, the wider and more comfortable seat can provide more experiences for riders.
5. 36V Samsung newest lithium battery, with lightweight design concept, move more easily and safely.
Key Features
Specifications
Model number |
EBS118-02 |
|
Motor |
BAFANG, 36V 350W rear GEAR motor |
|
Battery |
36V 7.8Ah lithium, SAMSUNG cells |
|
Charge time |
4-8h |
|
Charger |
110-240V, 36V 2A, plug can be customized |
|
Controller |
36V 15A |
|
Speed |
32Km/h |
|
Driving distance |
50-55km by PAS |
|
Weight |
21.5Kgs |
|
Packing dimension |
860x460x715mm |
|
Panel/speedometer |
LCD style |
|
Wheel |
20” |
|
Tire |
20”x2.125, KENDA on road tire |
|
Chain |
1/2*3/32*114L, KMC rust-proof |
|
Frame |
Aluminum alloy 6061 |
|
Fork |
20”, travel 100MM, 25.4*22.2*107MM |
|
Shift lever |
Shimano 6 speed |
|
Rear derailleur |
Shimano RD-TX55 |
|
Front brake |
ZOOM Disc Brake |
|
Rear brake |
ZOOM Disc Brake |
|
Brake levers |
Aluminum |
|
Rims |
Aluminum alloy,20”*1.75*36H*13G |
|
Spokes |
Front:13GX176/178; Rear:12GX123/125; |
|
Pedals |
Wellgo, with ball |
|
Chainwheel |
1/2*3/32*52T, aluminum |
|
Cranks |
Aluminum, 170L |
|
Freewheel |
14-28T |
|
Handlebar |
ZOOM Aluminum, W560 |
|
Stem |
ZOOM Aluminum |
|
Grip |
92/135MM |
|
Seat |
Velo |
|
Seat tube |
Aluminum, 27.2*300*1.4T |
|
Lamp |
LED for front and rear |
|
Wheel base |
1020mm |
|
Min ground clearance |
91mm |
|
Saddle ground clearance |
Max:990mm; Min:790mm |
|
Handlebar ground clearance |
1050mm |
|
Licence requirement |
NO |

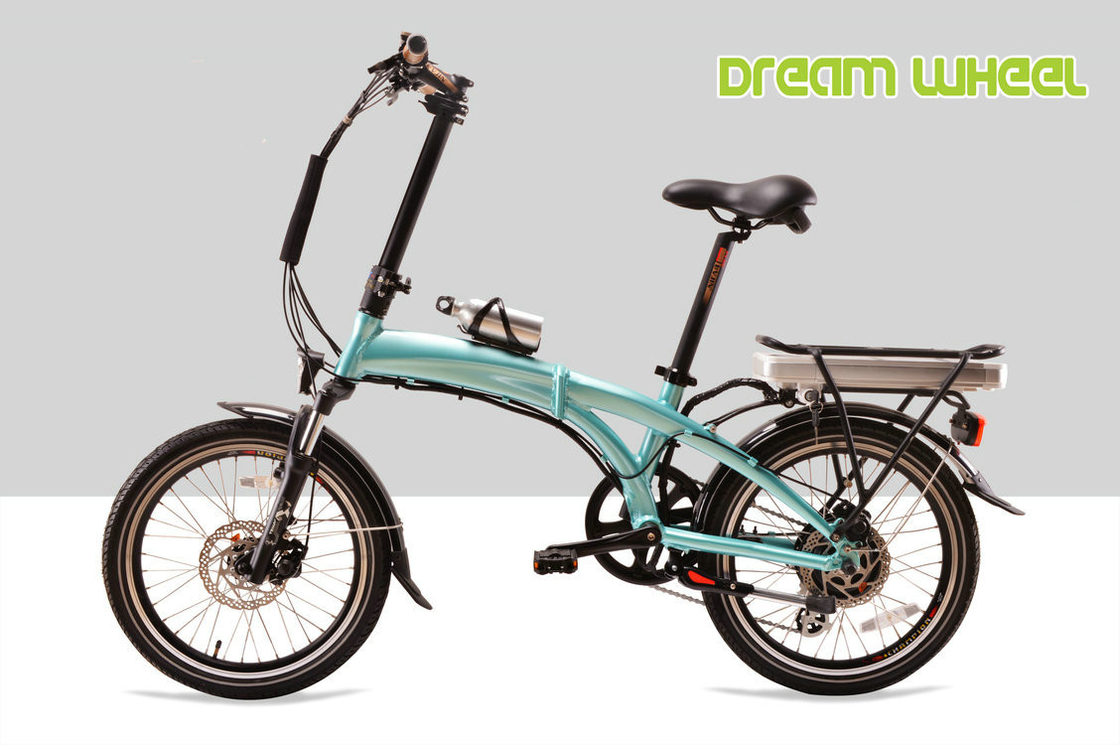

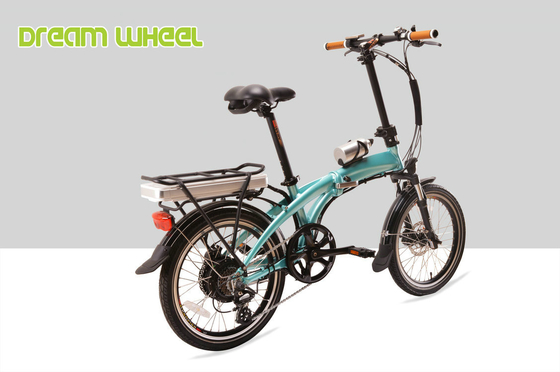

Pictures Show
