Product Details:
Payment & Shipping Terms:
|
| Speed: | 25km/h | Tire: | 16"X3.0 |
|---|---|---|---|
| Color: | Blue, Red, Black, Orange | Brake: | Disc Brakes For Both Wheel |
| High Light: | 25km/H Electric Pedal Assist Scooter,16"X3.0 Electric Pedal Assist Scooter,21.7mph scooter with removable battery |
||
48V 20Ah removable battery 25-32km/h two wheels pedals assist electric scooter/bicycle with 48V 250W motor
Quick Details
1. Motor power: 48V 250W brushless DC hub motor
2. Lead Acid Gel battery: 48V 20Ah
3. Tire size: 16"x3.0
4. Brake system: Disc brake for both wheel
5. Pedals assisted system and Throttle: YES
6. Max Speed: 25km/h (21.7mi/h)
Product Descriptions
This model make with 48V 250W motor and 25km/h speed, meet the regulations of Europe. No licence, no plate and no tax . And this model pass CE and RoHS certificates. In other words, it is one model that design for European market.
The base is only 25cm width, so it’s comfortable to use pedals assist.
Components

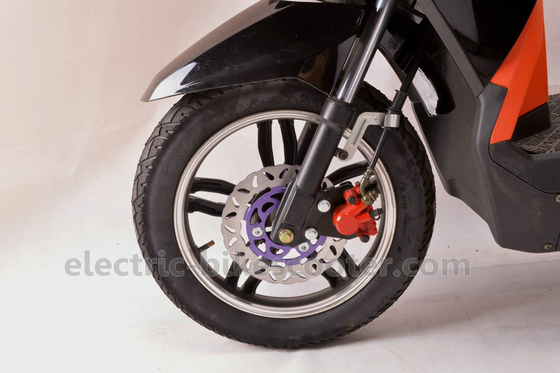

1. Hydraulic disc brake system. This electric scooter installed disc brakes for both wheel.

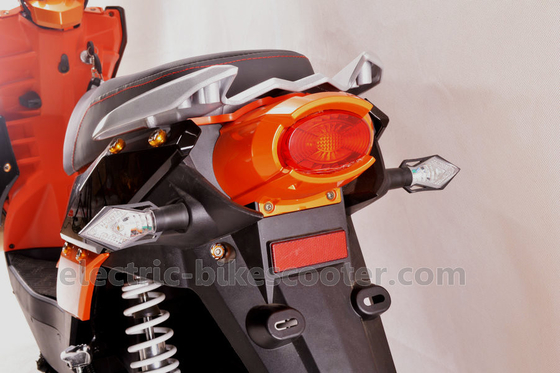

2. Headlamp and tail light, with LED style.
3. Full suspension system.
4. The 48V 20Ah battery, can be removable.

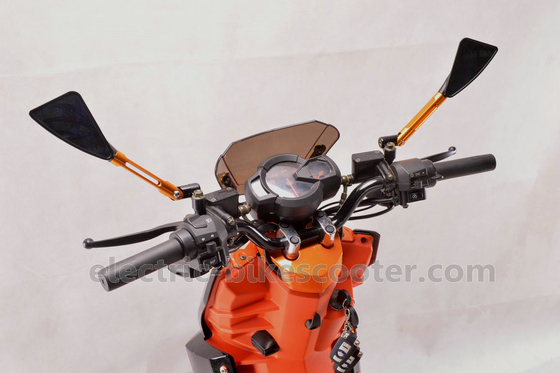

5. The speedometer have new design, the same as motorcycle’s.
6. Alarm system, to keep your bike security.
Specifications
|
Model number |
HP-TT |
|
Motor |
48V 250W rear brushless motor |
|
Battery |
48V 20Ah lead acid gel battery |
|
Charge time |
4-8h |
|
Charger |
48V 2.5A, plug can be customized |
|
Controller |
48V 25A |
|
Speed |
25Km/h |
|
Speed mode |
Single |
|
Driving distance |
50-60km |
|
Weight |
79Kgs |
|
Packing dimension |
1660x450x860mm |
|
Package |
85% completed, one piece per carton |
|
Panel/speedometer |
Normal |
|
Driving mode |
Pedals assist and throttle |
|
Alarm system |
Remote alarm |
|
Wheel |
16” |
|
Tire |
16"x3.0 |
|
Chain |
stainless |
|
Frame |
Paint with electrophoretic coating |
|
Fork |
Hydraulic suspension |
|
Shift lever |
-- |
|
Rear derailleur |
-- |
|
Front brake |
Disc Brake |
|
Rear brake |
Disc Brake |
|
Brake levers |
Aluminum |
|
Rims |
Aluminum alloy |
|
Spokes |
-- |
|
Pedals |
normal |
|
Chainwheel |
28T |
|
Cranks |
steel |
|
Freewheel |
16T |
|
Handlebar |
Steel |
|
Stem |
-- |
|
Grip |
140MM |
|
Seat |
Lengthen, comfortable, for two persons |
|
Seat tube |
-- |
|
Headlamp |
Normal style |
|
Fenders |
Plastics |
|
Wheel base |
1300mm |
|
Min ground clearance |
130mm |
|
Saddle ground clearance |
770mm |
|
Handlebar ground clearance |
980mm |
|
Licence requirement |
NO |

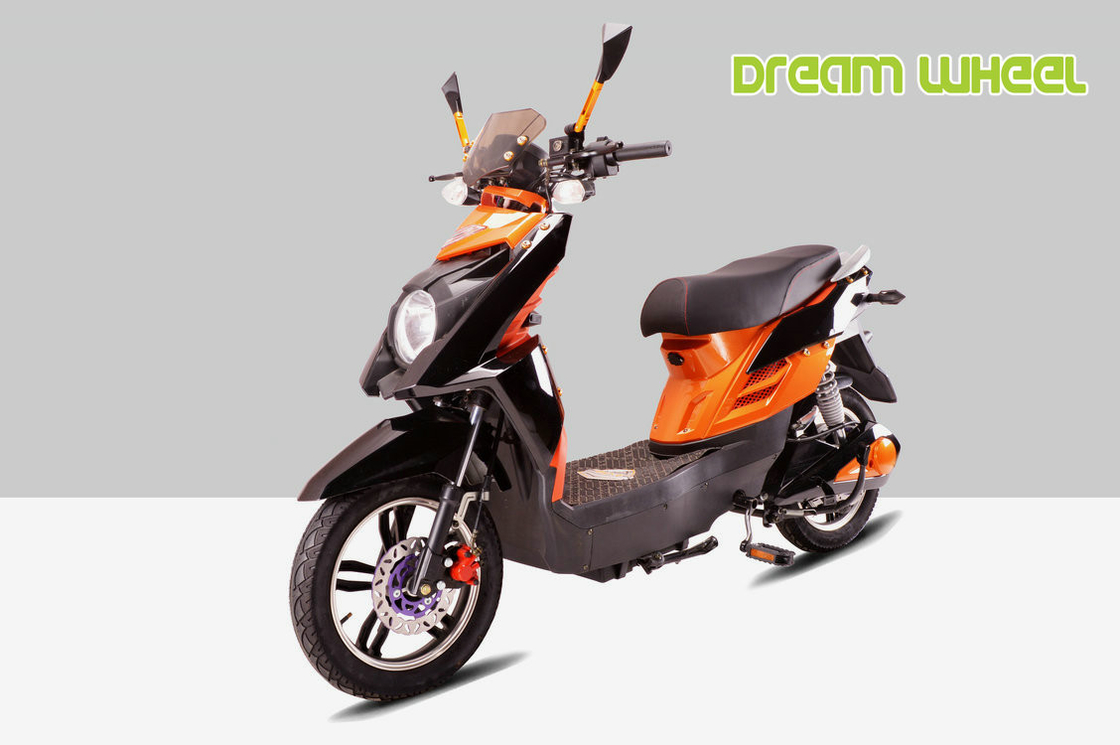

Pictures Show
