350W Pedal Assist Electric Bike Scooter 40km Steel Frame

China 350W Pedal Assist Electric Bike Scooter 40km Steel Frame supplier
350W Pedal Assist Electric Bike Scooter 40km Steel Frame supplier 350W Pedal Assist Electric Bike Scooter 40km Steel Frame supplier 350W Pedal Assist Electric Bike Scooter 40km Steel Frame supplier

Large Image :  350W Pedal Assist Electric Bike Scooter 40km Steel Frame

Product Details:

Place of Origin: CHINA
Brand Name: DREAM WHEEL
Certification: CE
Model Number: EBS518

Payment & Shipping Terms:

Minimum Order Quantity: 2units
Price: USD279 to 350
Packaging Details: Carton and protecting cover
Delivery Time: 28 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 2500pcs per month
Detailed Product Description
Motor: 36V 350W Brushless Motor Lead Acid Gel Battery: 36V 12Ah
Color: Red, Black, Yellow, Silver, Blue Package: Carton And Protecting Cover
Container Loading: 68pcs In 1x20"; 174pcs In 1x40"HQ Delivery Time: 28days For Full Container
High Light:

32km/H pedal assist electric bike

,

350W pedal assist electric bike

,

Electric Bike Scooter 40km

350W 25Km - 32Km / H City Electric Bike Scooter 36V Pedal Assist 40Km Steel



Quick Details



1.  Motor power: 36V 350W brushless motor

2.  Frame material: steel

3.  Lead Acid Gel battery: 36V 12Ah

4.  Wheel size: 24”

5.  Brake system: V brake for front wheel;  drum brake for rear wheel

6.  Derailleur system: No

7.  Pedals assisted system and Throttle: Yes



Product Descriptions



Our pedal assist electric bike EBS518,  this is one of the classic and best selling model since it’s be produced.  We have sold this exciting e-bike for over 12 countries in past years.  The best selling countries are Brazil and Colombia.



36V 350W brushless motor and 36V 12Ah battery, make this bike with mid level power and driving distance. In other words, it can meet most people daily needs, go work, go shopping and take child go to school. It has two storage space, front basket and rear trunk, can load charger, raincoat, lock or something else when you need.



And more, the cost of this bike is very economic, can be affordable for most people that love green transportation.  In one word, this is one bike combine economy and practical utility.



We make two drive modes, Pedals assistant system and Accelerator system for the market except Europe. As EU not allow to drive with Accelerator.



Components



36V 12Ah lead acid gel battery, made by TIANNENG, China motive power 1st  shares. China High quality electric bike battery power manufacturer.



LED headlamp, turning lights and brake light.  Save battery power, make your drive more longer.



Digital speedometer, can display battery power, speed, voltage and driving distance.



High strength steel frame, paint with electrophoretic coating, to ensure frame rust-proof .



Specifications



Model number

EBS518

Motor

36V 350W rear brushless motor

Battery

36V 12Ah lead acid gel battery, removable

Charge time

4-8h

Charger

 36V 1.8A, plug can be customized

Controller

 36V 18A

Speed

32Km/h

Driving distance

35-40km by PAS

Weight

42.5Kgs

Packing dimension

1620x275x880mm

Panel/speedometer

 Digital display

Driving mode

Pedals assisted and Throttle

Wheel

24”

Tire

24”x1.95,  on road tire

Chain

stainless

Frame

Paint with electrophoretic coating , 24”

Fork

Steel with suspension, 24”

Shift lever

--

Rear derailleur

--

Front brake

V Brake

Rear brake

Drum Brake

Brake levers

 Aluminum, 65PDD

Rims

Aluminum alloy,24”*1.75*36H*13G

Spokes

Front:13GX207; Rear:12GX209

Pedals

YONGHUA

Chainwheel

32T

Cranks

steel

Freewheel

16T

Handlebar

 Steel, W590

Stem

Steel

Grip

136MM

Seat

--

Seat tube

Steel, 25.4

Headlamp

LED

Fenders

PVC material

Wheel base

1100mm

Min ground clearance

120mm

Saddle ground clearance

Max:980mm; Min:830mm

Handlebar ground clearance

1020mm

Licence requirement

NO



Pictures Show

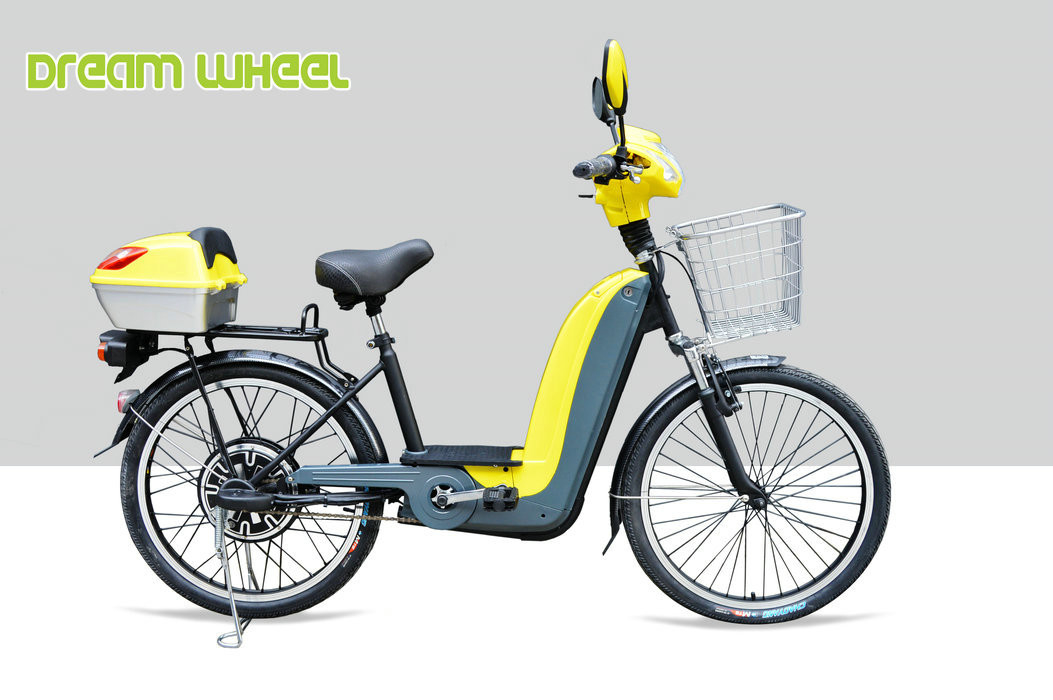

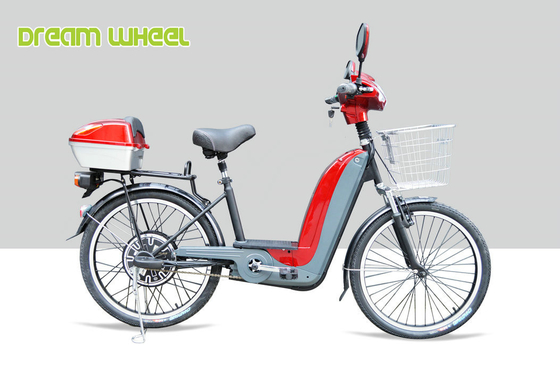

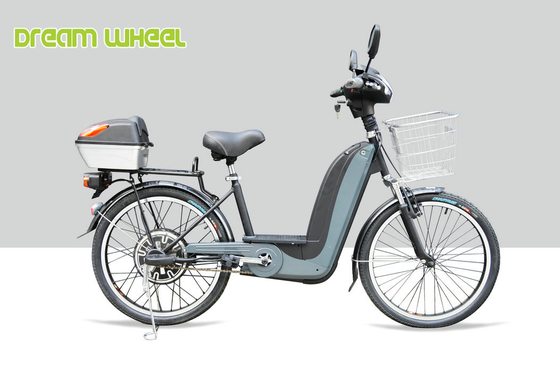

350W Pedal Assist Electric Bike Scooter 40km Steel Frame 0350W Pedal Assist Electric Bike Scooter 40km Steel Frame 1350W Pedal Assist Electric Bike Scooter 40km Steel Frame 2



350W Pedal Assist Electric Bike Scooter 40km Steel Frame 3



350W Pedal Assist Electric Bike Scooter 40km Steel Frame 4



350W Pedal Assist Electric Bike Scooter 40km Steel Frame 5



350W Pedal Assist Electric Bike Scooter 40km Steel Frame 6



350W Pedal Assist Electric Bike Scooter 40km Steel Frame 7



350W Pedal Assist Electric Bike Scooter 40km Steel Frame 8

350W Pedal Assist Electric Bike Scooter 40km Steel Frame 9

350W Pedal Assist Electric Bike Scooter 40km Steel Frame 10

350W Pedal Assist Electric Bike Scooter 40km Steel Frame 11

350W Pedal Assist Electric Bike Scooter 40km Steel Frame 12350W Pedal Assist Electric Bike Scooter 40km Steel Frame 13
