32KM/H Electric Moped Pedal Assist Electric Scooter 500W 16" X 3.0 Disc Brake

China HANGZHOU DREAM WHEEL TECHNOLOGY CO.,LTD. certification
China HANGZHOU DREAM WHEEL TECHNOLOGY CO.,LTD. certification
Easy to talk, can make OEM, can provide drawing and parts list to us, it's really useful to us.

—— Mr.Carlo

Good services and efficient works, I'd like to work with them. Every month, can get new models data from them, save my time. Good guys.

—— Ms.Ana

I'm Online Chat Now

32KM/H Electric Moped Pedal Assist Electric Scooter 500W 16" X 3.0 Disc Brake

China 32KM/H Electric Moped Pedal Assist Electric Scooter 500W 16" X 3.0 Disc Brake supplier
32KM/H Electric Moped Pedal Assist Electric Scooter 500W 16" X 3.0 Disc Brake supplier 32KM/H Electric Moped Pedal Assist Electric Scooter 500W 16" X 3.0 Disc Brake supplier

Large Image :  32KM/H Electric Moped Pedal Assist Electric Scooter 500W 16" X 3.0 Disc Brake

Product Details:

Place of Origin: CHINA
Brand Name: DREAM WHEEL
Certification: CE
Model Number: HP-E60 plus

Payment & Shipping Terms:

Minimum Order Quantity: 2PCS
Price: USD
Packaging Details: Carton+ protecting cover+foam
Delivery Time: 20 to 30days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 3500PCS per month
Detailed Product Description
Speed: 32km/h Tire: 16"X3.0
Color: Blue, Red, Black Package: Carton+protecting Cover
Gear Motor: 48V 500W Lead Acid Gel Battery: 48V 20Ah
High Light:

32KM/H pedal assist electric scooter

,

pedal assist electric scooter 500W

,

32KM/H electric moped pedal assist

Black 25KM - 32KM / H Electric Gear Motor Scooters 500W 16" X 3.0 Disc Brake with CE, RoHS



Quick Details



1.  Motor power: 48V 500W rear Gear motor

2.  Lead Acid Gel battery: 48V 20Ah

3.  Tire size: 16"x3.0

4.  Brake system: Disc brake for frontwheel

5.  Pedals assisted system and Throttle: YES

6.  Max Speed: 35km/h (21.7mi/h)



Product Descriptions



HP-E60 is one classic vespa style pedals assist electric bike/scooter. This model support 48V 250W motor and 25km/h speed limited, so that can meet the regulations of Europe. As can drive with pedals, so this model class as bicycle scope by EU.  No licence, no plate and no tax .  In other words, it is one model that design for European market.



The rear Gear motor, with strong torque, it’s very helpful to uphill.  Compare with brushless motor, this is the key difference and advantage.   If your area with hill and mountains,  this model will offer best solution, and have good market.



Components



1.  Hydraulic disc brake system. This electric scooter installed disc brakes for front wheel. As the rear wheel with Gear motor, not support disc brake now.



2.  Headlamp and tail light, with LED style.



3.  Full suspension system.



4.  Rear trunk, can load charger, lock, raincoat.



5.  The 48V 20Ah battery, can be removable.



6.  The speedometer have two version choices, digital style and normal pointer style.



Specifications



Model number

HP-E60 plus

Motor

48V 500W rear Gear motor

Battery

48V 20Ah lead acid gel battery

Charge time

4-8h

Charger

 48V 2.5A, plug can be customized

Controller

 48V 25A

Speed

32Km/h

Speed mode

3 level

Driving distance

50-60km

Weight

82Kgs

Packing dimension

1620x450x860mm

Package

95% completed, one piece per carton

Panel/speedometer

Digital style

Driving mode

Pedals assist and throttle

Alarm system

Remote alarm

Wheel

16”

Tire

16"x3.0

Chain

stainless

Frame

Paint with electrophoretic coating

Fork

Hydraulic suspension

Shift lever

--

Rear derailleur

--

Front brake

Disc Brake

Rear brake

Drum Brake

Brake levers

 Aluminum

Rims

Aluminum alloy

Spokes

--

Pedals

normal

Chainwheel

28T

Cranks

steel

Freewheel

16T

Handlebar

 Steel

Stem

--

Grip

140MM

Seat

Lengthen, comfortable, for two persons

Seat tube

--

Headlamp

LED style

Fenders

Plastics

Wheel base

1210mm

Min ground clearance

110mm

Saddle ground clearance

760mm

Handlebar ground clearance

980mm

Licence requirement

NO



Pictures Show

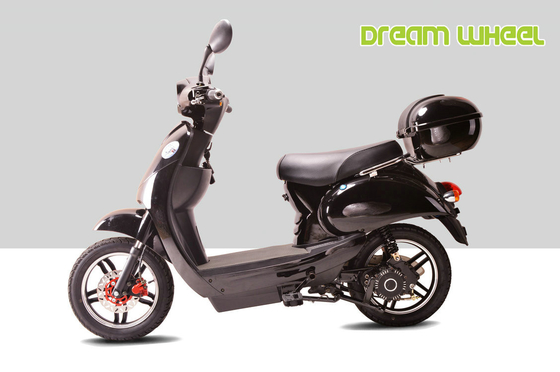

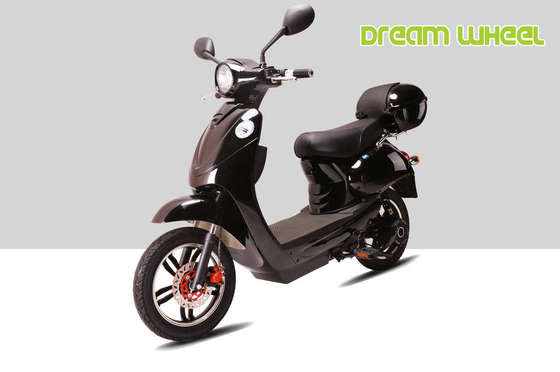

32KM/H Electric Moped Pedal Assist Electric Scooter 500W 16" X 3.0 Disc Brake 032KM/H Electric Moped Pedal Assist Electric Scooter 500W 16" X 3.0 Disc Brake 1

32KM/H Electric Moped Pedal Assist Electric Scooter 500W 16" X 3.0 Disc Brake 2


32KM/H Electric Moped Pedal Assist Electric Scooter 500W 16" X 3.0 Disc Brake 3

32KM/H Electric Moped Pedal Assist Electric Scooter 500W 16" X 3.0 Disc Brake 432KM/H Electric Moped Pedal Assist Electric Scooter 500W 16" X 3.0 Disc Brake 532KM/H Electric Moped Pedal Assist Electric Scooter 500W 16" X 3.0 Disc Brake 632KM/H Electric Moped Pedal Assist Electric Scooter 500W 16" X 3.0 Disc Brake 732KM/H Electric Moped Pedal Assist Electric Scooter 500W 16" X 3.0 Disc Brake 8
