Product Details:

Place of Origin: CHINA
Brand Name: DREAM WHEEL
Certification: CE
Model Number: HP-E72

Payment & Shipping Terms:

Minimum Order Quantity: 2PCS
Price: USD
Packaging Details: Carton+ protecting cover+foam
Delivery Time: 20 to 30days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 3500PCS per month
Detailed Product Description
Package: Carton+protecting Cover Speed: 25km/h
Tire: 16"X3.0 Motor: 48V 250W European Standard
Lead Acid Gel Battery: 48V 20Ah Pedals Assisted System And Throttle: YES
High Light:

electric scooter pedal assist 16"x3.0

,

25km/h battery operated electric scooter

,

48V 20Ah battery operated electric scooter

Battery Operated 250 Watt Scooter Pedals Assist 16" X 3.0 Tire Drum Brake European standard



Quick Details



1.  Motor power: 48V 250W brushless motor

2.  Lead Acid Gel battery: 48V 20Ah

3.  Tire size: 16"x3.0

4.  Brake system: Drum brake for frontwheel

5.  Pedals assisted system and Throttle: YES

6.  Max Speed: 25km/h (15.5mi/h)



Product Descriptions



HP-E72 is one European standard pedals assist electric bike. 48V 250W motor, 25km/h speed, drive with pedals. All this make it can meet the regulations of Europe.  No Licence, no plate and no tax .



This model also support 48V 500W motor, 32km/h speed and pedals assist system. It’s available in Canada. Will class as bicycle.



Components



1.  Drum brake system. Keep good performance, also can lower the cost.



2. Headlamp and tail light, with dual LED headlight.



3.  The 48V 20Ah battery, can be removable.



4. The base width with only 22cm, it’s so narrow, like bicycle. You can image how comfortable when pedals.



5. This model pass CE and RoHS certificates.



6.  16”x3.0 CST tire. The tire is more wide, can bring better stability.



Specifications



Model number

HP-E72

Motor

48V 250W brushless DC hub motor

Battery

48V 20Ah lead acid gel battery

Charge time

4-8h

Charger

 48V 2.5A, plug can be customized

Controller

 48V 20A

Speed

25Km/h

Speed mode

Single

Driving distance

55-65km

Weight

82.5Kgs

Packing dimension

1620x450x860mm

Package

85% completed, one piece per carton

Panel/speedometer

Normal style

Driving mode

Pedals assist and throttle

Alarm system

Remote alarm

Wheel

16”

Tire

16"x3.0

Chain

stainless

Frame

Paint with electrophoretic coating

Fork

Hydraulic suspension

Shift lever

--

Rear derailleur

--

Front brake

Drum Brake

Rear brake

Drum Brake

Brake levers

 Aluminum

Rims

Aluminum alloy

Spokes

--

Pedals

normal

Chainwheel

28T

Cranks

steel

Freewheel

16T

Handlebar

 Steel

Stem

--

Grip

140MM

Seat

Lengthen, comfortable, for two persons

Seat tube

--

Headlamp

Dual LED

Fenders

Plastics

Wheel base

1240mm

Min ground clearance

110mm

Saddle ground clearance

760mm

Handlebar ground clearance

980mm

Licence requirement

NO

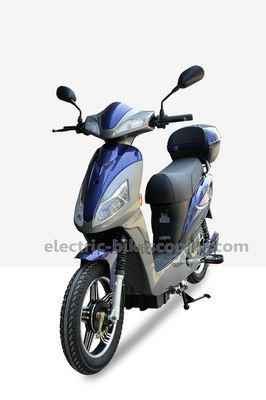

Pictures Show
