32km/H Road Electric Bike Scooter With Bluetooth Controller

China 32km/H Road Electric Bike Scooter With Bluetooth Controller supplier
32km/H Road Electric Bike Scooter With Bluetooth Controller supplier 32km/H Road Electric Bike Scooter With Bluetooth Controller supplier

Large Image :  32km/H Road Electric Bike Scooter With Bluetooth Controller

Product Details:

Place of Origin: CHINA
Brand Name: DREAM WHEEL
Certification: CE
Model Number: HP-629

Payment & Shipping Terms:

Minimum Order Quantity: 10 units
Price: USD
Packaging Details: professional package carton box plus air bubble protector, make the ebike with good protector
Delivery Time: 25-35days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 2800 units per month
Detailed Product Description
Motor: Rear Mounted Brushless Motor Rated Power: 48V 500W
Speed: 25-32km/h Colours: Black, White, Blue, Dark Red, Dark Gray
Controller: Blue Tooth Controller, Can Setup The Ebike By Smart Phone App Brake: Drum Brakes For Both
Highlight:

32km/H Electric Bike Scooter

,

60km Electric Bike Scooter

,

500W adult electric motorcycle scooter



Road Electric Bike Scooter With Bluetooth Controller Set Up Ebike By Smart Phone App



Quick Details



1. Motor power: 48V 500W

2. Controller: new technology Bluetooth controller

3. Lead Acid Gel battery: 48V 20Ah

4. Tire size: 16”X 3.0

5. Brake system: Drum brakes for both wheel

6. Pedals assisted system and Throttle: Yes

7. Max Speed: 32km/h



Product Descriptions



HP-629 is one New technology pedals assist electric bicycle, we use new type Bluetooth controller in the eBIKE, the user just download one APP by smart phone, and then can setup the Specification fast and easily,like the motor power, speed, electric current etc. So this new technology controller can meet different users requirement.

And another feature of the controller, it can re-charge the battery when drive on the way, like when brake the ebike and downhill.





Components



-Drum brake system. Disc brakes are available.



-LED headlamps design, to make the scooter see longer and clearly.



-Hydraulic fork; spring and hydraulic shock absorber.



-Digital speedometer, to display more information, like battery power, speed, lights.



- Bluetooth controller system





Specifications



Model number

HP-629

Motor

48V 500W hub brushless motor

Battery

48V 20Ah lead acid gel battery, under seat,removable

Charge time

4-8h

Charger

 48V 2.5A, plug can be customized

Controller

 48V 12 tubes, bluetooth controller

Speed

25-32Km/h, can be setup by user

Speed mode

Single

Driving distance

50-60km by PAS

Weight

77Kgs

Packing dimension

1620x450x1000mm

Package

90% completed, one piece per package carton

Panel/speedometer

 Digital display

Driving mode

Pedals assisted and Throttle

Alarm system

Remote alarm

Wheel

16”

Tire

16”x3.0

Chain

stainless

Frame

Paint with electrophoretic coating

Fork

Hydraulic suspension

Shift lever

--

Rear derailleur

--

Front brake

Drum Brake

Rear brake

Drum Brake

Brake levers

 Aluminum

Rims

Aluminum alloy, 16 inch

Spokes

--

Pedals

Plastics

Chainwheel

28T

Cranks

steel

Freewheel

16T

Handlebar

 Steel

Stem

--

Grip

136MM

Seat

Lengthen, comfortable

Seat tube

--

Headlamp

LED

Fenders

Plastics

Wheel base

1241mm

Min ground clearance

110mm

Saddle ground clearance

780mm

Handlebar ground clearance

980mm

Licence requirement

250W no need for EU; 500W no need for North America



Pictures Show

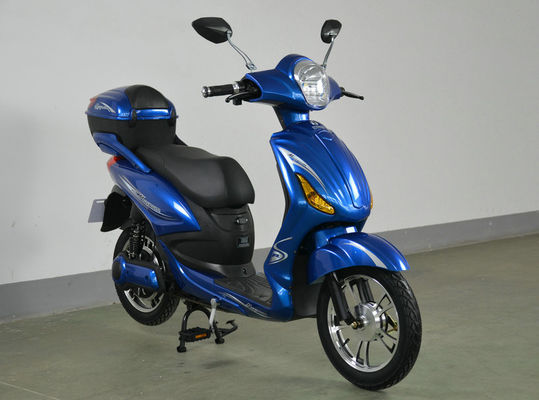

32km/H Road Electric Bike Scooter With Bluetooth Controller 0



32km/H Road Electric Bike Scooter With Bluetooth Controller 1



32km/H Road Electric Bike Scooter With Bluetooth Controller 2



32km/H Road Electric Bike Scooter With Bluetooth Controller 3



32km/H Road Electric Bike Scooter With Bluetooth Controller 4
