Pedal Assisted Scooter 500W 60V Dc Hub Motor , Two Wheeled Moped Electric Scooter

China Pedal Assisted Scooter 500W 60V Dc Hub Motor , Two Wheeled Moped Electric Scooter supplier
Pedal Assisted Scooter 500W 60V Dc Hub Motor , Two Wheeled Moped Electric Scooter supplier Pedal Assisted Scooter 500W 60V Dc Hub Motor , Two Wheeled Moped Electric Scooter supplier Pedal Assisted Scooter 500W 60V Dc Hub Motor , Two Wheeled Moped Electric Scooter supplier Pedal Assisted Scooter 500W 60V Dc Hub Motor , Two Wheeled Moped Electric Scooter supplier Pedal Assisted Scooter 500W 60V Dc Hub Motor , Two Wheeled Moped Electric Scooter supplier Pedal Assisted Scooter 500W 60V Dc Hub Motor , Two Wheeled Moped Electric Scooter supplier

Large Image :  Pedal Assisted Scooter 500W 60V Dc Hub Motor , Two Wheeled Moped Electric Scooter

Product Details:

Place of Origin: CHINA
Brand Name: DREAM WHEEL
Certification: CE
Model Number: EBS620

Payment & Shipping Terms:

Minimum Order Quantity: 2PCS
Price: USD
Packaging Details: Carton+ protecting cover+steel frame
Delivery Time: 20 to 30days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 5000PCS per month
Contact Now
Detailed Product Description
Speed: 38km/h Tire: 14"x3.2
Motor: 500W DC Hub Motor Container: 32pcs In 1x20"; 70pcs In 1x40"HQ

Pedal Assisted Scooter 500W 60V Dc Hub Motor , Two Wheeled Moped Electric Scooter



Quick Details



1.  Motor power: 60V 500W brushless motor

2.  Lead Acid Gel battery: 60V 20Ah

3.  Tire size: 14”X 3.2

4.  Brake system: Hydraulic disc brakes for front wheel

5.  Pedals assisted system and Throttle: Yes

6.  Max Speed: 38km/h (23.6mi/h)



Product Descriptions



60V 500W brushless DC hub motor, can offer strong powerful than normal complete wheel motor, to uphill middle hills is ok.   And the new design plastics cover, similar moped style, welcome by many users.  But it’s easier to operate  100% electric power model than gasoline scooter.  No licence, Zero emission, no noise.  You only need pay 0.9 dollars per 100km.



Components



1. Hydraulic disc brake system. This electric scooter installed disc brakes for front and rear wheel, to make sure safety on the road.



2. Headlamp, rear light, brake light and turning lights.



3. Full suspension system.



4. Comfortable seat, for two persons.



5. Rear trunk, can load charger, lock, raincoat, and can be removable.



Specifications



Model number

EBS620

Motor

60V 500W rear brushless motor

Battery

60V 20Ah lead acid gel battery

Charge time

4-8h

Charger

 60V 2.5A, plug can be customized

Controller

 60V 28A

Speed

38Km/h

Speed mode

3 level

Driving distance

35-40km by PAS

Weight

80Kgs

Packing dimension

1700x450x1000mm

Package

95% completed, one piece per carton

Panel/speedometer

Normal

Driving mode

Pedals assisted and Throttle

Alarm system

Remote alarm

Wheel

14”

Tire

14”x3.2,  CST tire

Chain

stainless

Frame

Paint with electrophoretic coating

Fork

Hydraulic suspension

Shift lever

--

Rear derailleur

--

Front brake

Disc Brake

Rear brake

Drum Brake

Brake levers

 Aluminum

Rims

Aluminum alloy

Spokes

--

Pedals

--

Chainwheel

--

Cranks

--

Freewheel

--

Handlebar

 Steel

Stem

--

Grip

136MM

Seat

Lengthen, comfortable

Seat tube

--

Headlamp

Normal

Fenders

Plastics

Wheel base

1255mm

Min ground clearance

110mm

Saddle ground clearance

780mm

Handlebar ground clearance

930mm

Licence requirement

250W no need for EU; 500W no need for North America

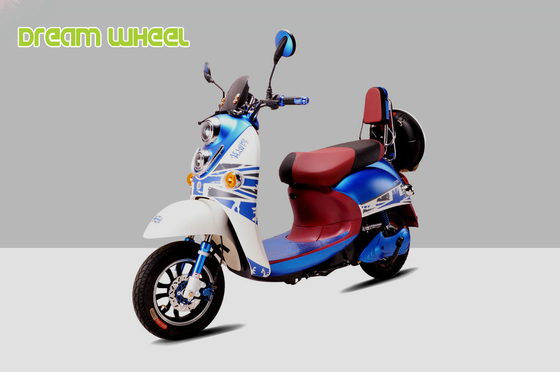

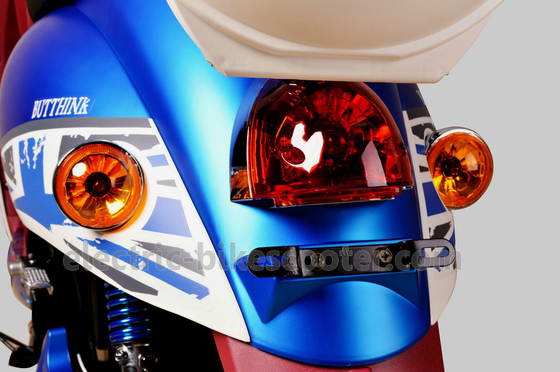

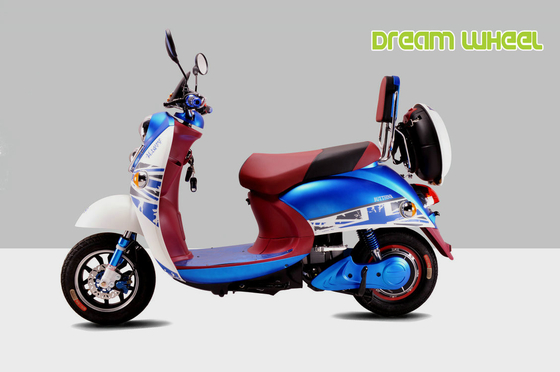

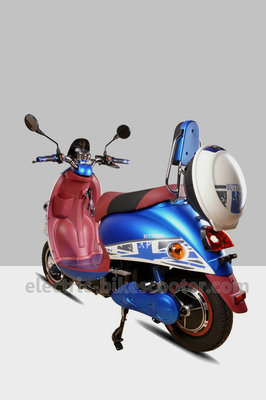

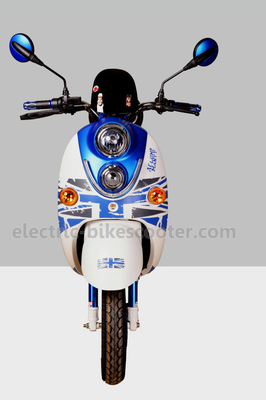

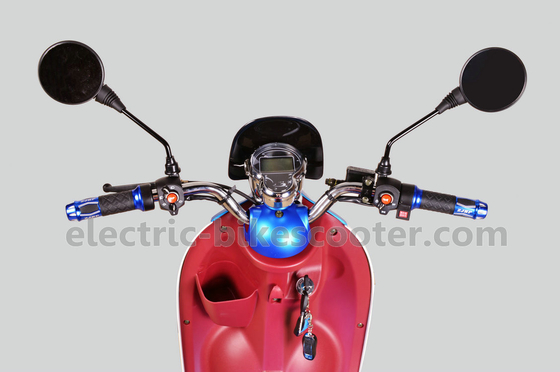

Pictures Show



Pedal Assisted Scooter 500W 60V Dc Hub Motor , Two Wheeled Moped Electric ScooterPedal Assisted Scooter 500W 60V Dc Hub Motor , Two Wheeled Moped Electric ScooterPedal Assisted Scooter 500W 60V Dc Hub Motor , Two Wheeled Moped Electric Scooter



Pedal Assisted Scooter 500W 60V Dc Hub Motor , Two Wheeled Moped Electric Scooter



Pedal Assisted Scooter 500W 60V Dc Hub Motor , Two Wheeled Moped Electric Scooter



Pedal Assisted Scooter 500W 60V Dc Hub Motor , Two Wheeled Moped Electric Scooter

Pedal Assisted Scooter 500W 60V Dc Hub Motor , Two Wheeled Moped Electric ScooterPedal Assisted Scooter 500W 60V Dc Hub Motor , Two Wheeled Moped Electric ScooterPedal Assisted Scooter 500W 60V Dc Hub Motor , Two Wheeled Moped Electric ScooterPedal Assisted Scooter 500W 60V Dc Hub Motor , Two Wheeled Moped Electric ScooterPedal Assisted Scooter 500W 60V Dc Hub Motor , Two Wheeled Moped Electric Scooter
