48V 500W Hub Brushless Electric Scooter Pedal Assisted With Disc Brake

China 48V 500W Hub Brushless Electric Scooter Pedal Assisted With Disc Brake supplier
48V 500W Hub Brushless Electric Scooter Pedal Assisted With Disc Brake supplier 48V 500W Hub Brushless Electric Scooter Pedal Assisted With Disc Brake supplier 48V 500W Hub Brushless Electric Scooter Pedal Assisted With Disc Brake supplier 48V 500W Hub Brushless Electric Scooter Pedal Assisted With Disc Brake supplier

Large Image :  48V 500W Hub Brushless Electric Scooter Pedal Assisted With Disc Brake

Product Details:

Place of Origin: CHINA
Brand Name: DREAM WHEEL
Certification: CE
Model Number: EBS676

Payment & Shipping Terms:

Minimum Order Quantity: 10PCS
Price: USD480-USD550
Packaging Details: Carton+ protecting cover+steel frame
Delivery Time: 20 to 30days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 3000PCS per month
Detailed Product Description
Package: Carton+Steel Frame Speed: 25-45km/h
Tire: 10"X3.0 Motor: 48V 500W Hub Brushless
Brake System: DISC Brake Battery: 48V 20Ah Lead Acid Gel Battery
High Light:

45km/h electric moped scooter with pedals

,

Hub Brushless Electric Scooter Pedal Assisted

,

48V 500W electric scooter pedal assisted

48v 500w Hub Brushless Electric Scooters Bikes With Disc Brake



Quick Details



1.  Motor power: 48V 500W brushless motor

2.  Lead Acid Gel battery: 48V 20Ah

3.  Tire size: 10"x3.0

4.  Brake system: Disc brake for front wheel

5.  Pedals assisted system and Throttle: Throttle

6.  Max Speed: 25-45km/h



Product Descriptions



Our plant have produce new generation Vespa style electric scooter since 2015. 48V 500W hub Motor can reach 45km/h max speed.



48V 20Ah battery, made with high quality lead acid Gel battery, the distance can get 45-55km per charge.







Components



  • DISC brake system. This electric scooter installed disc brakes for front and rear wheel, to make good performance.

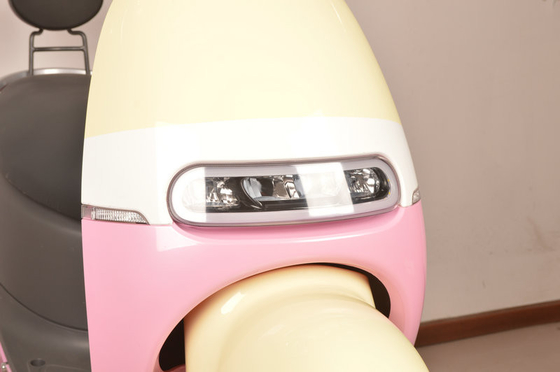

  • LED headlamps design, to make the scooter see longer and clearly. Also save electricity for whole scooter.
  • Full suspension system.

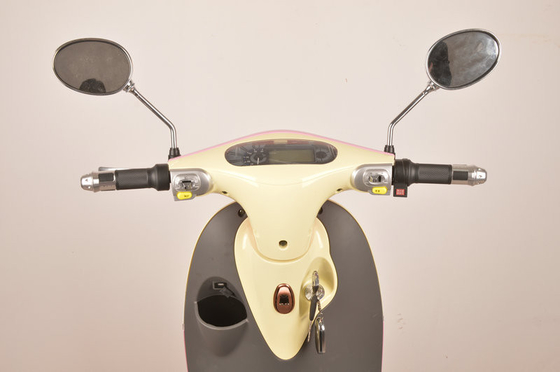

  • Digital speedometer, to display more information, like battery power, speed, lights.
  • USB charger port, can charge your smart phone any time on the way.



Specifications



Model number EBS676
Motor 48V 500W hub brushless motor
Battery 48V 20Ah lead acid gel battery
Charge time 4-8h
Charger 48V 2.5A, plug can be customized
Controller 48V 32A,12 tubes
Speed 25-45Km/h
Speed mode Single
Driving distance 45-55km
Weight 81Kgs
Packing dimension 1780x450x1000mm
Package 85% completed, one piece per carton
Panel/speedometer Digital display
Driving mode Throttle
Alarm system Remote alarm
Wheel 10”
Tire 10”x3.0, tubeless
Chain --
Frame Paint with electrophoretic coating
Fork Hydraulic suspension
Shift lever --
Rear derailleur --
Front brake Disc Brake
Rear brake Disc Brake
Brake levers Aluminum
Rims Aluminum alloy
Spokes --
Pedals --
Chainwheel --
Cranks --
Freewheel --
Handlebar Steel
Stem --
Grip 140MM
Seat Comfortable for two person
Seat tube --
Headlamp LED
Fenders Plastics
Wheel base 1260mm
Min ground clearance 125mm
Saddle ground clearance 780mm
Handlebar ground clearance 980mm
Licence requirement --

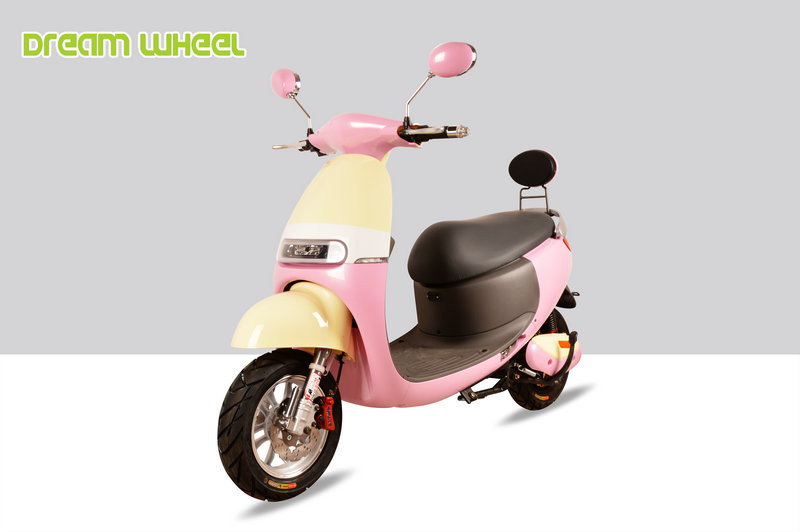

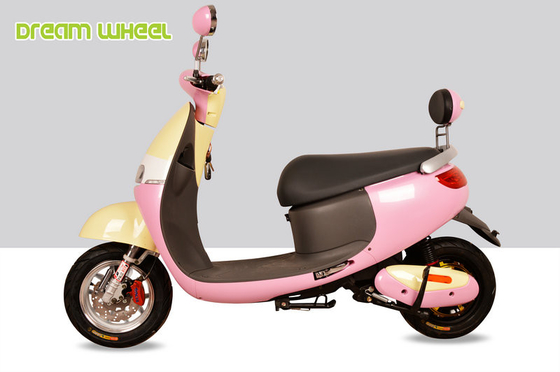

Pictures Show



48V 500W Hub Brushless Electric Scooter Pedal Assisted With Disc Brake 0



48V 500W Hub Brushless Electric Scooter Pedal Assisted With Disc Brake 1



48V 500W Hub Brushless Electric Scooter Pedal Assisted With Disc Brake 2



48V 500W Hub Brushless Electric Scooter Pedal Assisted With Disc Brake 3

48V 500W Hub Brushless Electric Scooter Pedal Assisted With Disc Brake 448V 500W Hub Brushless Electric Scooter Pedal Assisted With Disc Brake 548V 500W Hub Brushless Electric Scooter Pedal Assisted With Disc Brake 648V 500W Hub Brushless Electric Scooter Pedal Assisted With Disc Brake 748V 500W Hub Brushless Electric Scooter Pedal Assisted With Disc Brake 8
